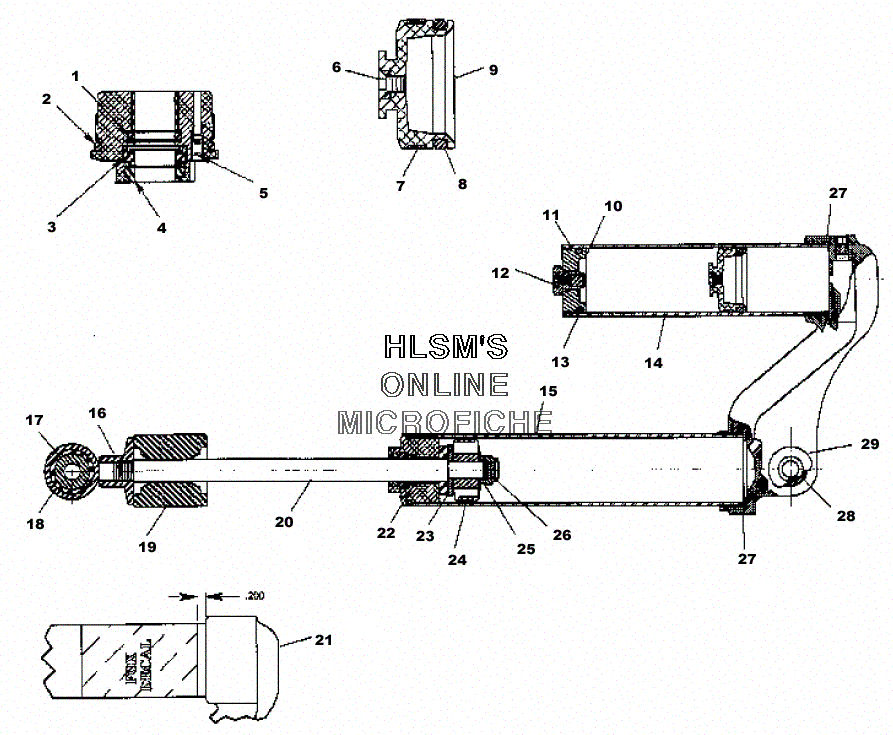

SHOCK - FOX - GAS - RESERVOIR для Polaris SCRAMBLER 500 2X4 (A02BA50AA) (BLAZING RED) - 2002 года выпуска
-
№АртикулНазвание
-
11500021 O-RING INNERO-RING INNER
-
21500020 O-RING,.103W-1.299IDO-RING,.103W-1.299ID
-
31500025 U-CUP-4300 URETH,036-01-006U-CUP-4300 URETH,036-01-006
-
41500024 WIPER,CLR,OUTERWIPER,CLR,OUTER
-
51500287 SCREW-#8-32X.375 800-10-002SCREW-#8-32X.375 800-10-002
-
61500018 SCREWSCREW
-
61500023 O-RING,OUTERO-RING,OUTER
-
71500006 RING,PISTON,FLOATING,FOXRING,PISTON,FLOATING,FOX
-
81500003 O-RING,ENDCAP,FOX,O-RING,ENDCAP,FOX,
-
91500011 PISTONPISTON
-
101500099 CAP,RESERV.ASM,(FOX)-ATV (INCL. 11,12,13)CAP,RESERV.ASM,(FOX)-ATV (INCL. 11,12,13)
-
111500097 RING,RETAIN.(FOX)-ATVRING,RETAIN.(FOX)-ATV
-
121500019 SCREWSCREW
-
121500022 O-RING,DRUM OUTERO-RING,DRUM OUTER
-
121500072 VALVE ASM,AIRVALVE ASM,AIR
-
131500098 O-RING,ENDCAP,FOXO-RING,ENDCAP,FOX
-
141500286 RESERVOIR-N/A 6.0 810-00-003RESERVOIR-N/A 6.0 810-00-003
-
151500283 BODY,1.46X9.05 204-04-036BODY,1.46X9.05 204-04-036
-
161500013 EYELETEYELET
-
171500102 BUSHING-EYELETBUSHING-EYELET
-
181500103 BSG-EYELETBSG-EYELET
-
195410987 BUMPER,R.COMPRESS.,ATVBUMPER,R.COMPRESS.,ATV
-
201500284 SHAFT-.498X10.15 229-19-004SHAFT-.498X10.15 229-19-004
-
211500282 CAP,BODY,P/B 804-00-026CAP,BODY,P/B 804-00-026
-
221500285 BEARING-1.46X1.15 812-02-002BEARING-1.46X1.15 812-02-002
-
231500017 PLATE,TOP OUTPLATE,TOP OUT
-
241500002 DAMPER,PISTONRING,FOXDAMPER,PISTONRING,FOX
-
251500015 BUSHING,BACKUPBUSHING,BACKUP
-
261500016 NUT,LOCKNUT,LOCK
-
271500004 O-RING,BODY,FOX,.139W-1.234IDO-RING,BODY,FOX,.139W-1.234ID
-
285020657 BUSHING, 1.40BUSHING, 1.40
-
291500104 BSG-EYELETBSG-EYELET
-
297041867 SHOCK-MONO,GAS,CH,19.08LGSHOCK-MONO,GAS,CH,19.08LG
