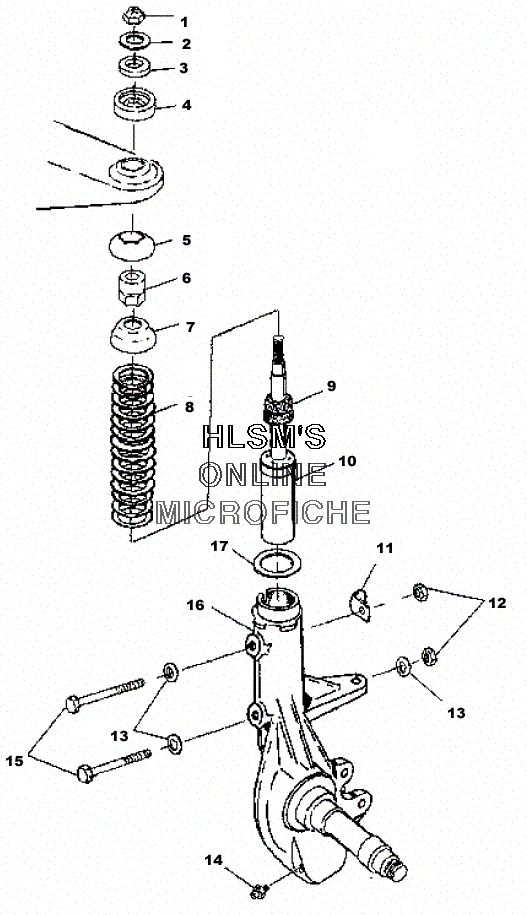

SUSPENSION - FRONT STRUT для Polaris SCRAMBLER 500 2X4 (A02BA50AB) (BLACK METALIC) - 2002 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT,BALL,TOPPIVOT,BALL,TOP
-
55432871 PIVOT,BALL,BOTTOMPIVOT,BALL,BOTTOM
-
65132062 SPACER-1/2-20,STRUTSPACER-1/2-20,STRUT
-
75243364 RETAINER-SPRING,STRUTRETAINER-SPRING,STRUT
-
87041603-067 SPRING,COIL(STRUT),LT.SPRING,COIL(STRUT),LT.
-
95411608 BUMPER-MCU,17.80MM IDBUMPER-MCU,17.80MM ID
-
107041762 STRUT-FRONT,18X30MM,184.7MM LTSTRUT-FRONT,18X30MM,184.7MM LT
-
117080367 CLAMP, CABLE,CLAMP, CABLE,
-
127542324 NUTNUT
-
137558402 WASHER STEELWASHER STEEL
-
147080306 FITTING,LUBE.W/BALL CK.FITTING,LUBE.W/BALL CK.
-
157515339 BOLTBOLT
-
165131039 SUPPORT,LH,STRUT/SPINDLESUPPORT,LH,STRUT/SPINDLE
-
165131040 SUPPORT,RH,STRUT/SPINDLESUPPORT,RH,STRUT/SPINDLE
-
175211115 WASHER,SPRING RETAINERWASHER,SPRING RETAINER
