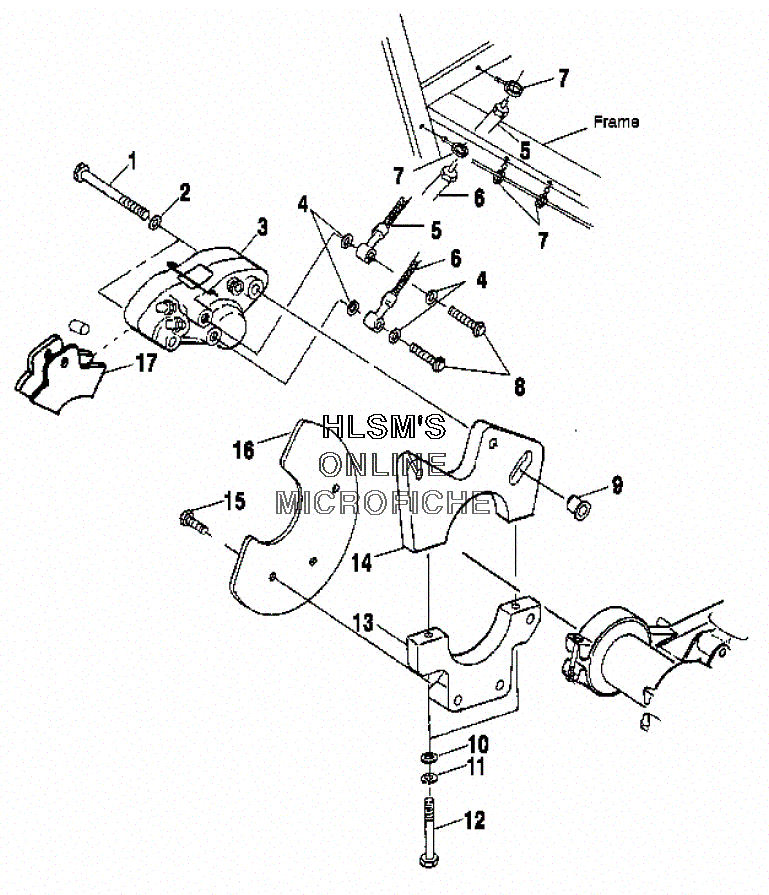

BRAKE - REAR CALIPER для Polaris SCRAMBLER 500 4X4 (A02BG50AA) (BLAZING RED) - 2002 года выпуска
-
№АртикулНазвание
-
17517231 SCREWSCREW
-
27555806 WASHERWASHER
-
31910449 ASM-CALIPER,DH2P,W/INS PADSASM-CALIPER,DH2P,W/INS PADS
-
32201385 SEAL,KIT,WW CALIPER,1910270SEAL,KIT,WW CALIPER,1910270
-
32201428 BLEEDER REPLACEMENT,KITBLEEDER REPLACEMENT,KIT
-
32201467 PISTON-RR CALIPER,DH2PPISTON-RR CALIPER,DH2P
-
45410988 SEALSEAL
-
51910504 LINE-BRAKE,JB TO REAR,SS,CDSLINE-BRAKE,JB TO REAR,SS,CDS
-
61910506 LINE-BRAKE,FR M/C TO RR,CDSLINE-BRAKE,FR M/C TO RR,CDS
-
77670102 CLIP,SILENCER,CLIP,SILENCER,
-
81910499 BOLT-BANJO,10MMX1.00BOLT-BANJO,10MMX1.00
-
95131759 BUSHING,CALIPER MT.BUSHING,CALIPER MT.
-
107558402 WASHER STEELWASHER STEEL
-
117552901 LOCK WASHERLOCK WASHER
-
127512312 BOLT *BOLT *
-
135131786 MT,LWR.CALIPER,AXLEMT,LWR.CALIPER,AXLE
-
145131787 MT,UPR.CALIPER,AXLEMT,UPR.CALIPER,AXLE
-
157512325 BOLTBOLT
-
165242291-067 GUARD,BRAKEDISC,R.AXLE,BLKGUARD,BRAKEDISC,R.AXLE,BLK
-
172201189 KIT,BRAKEPAD,R.AXLE,WW (INCL. SPACER AND PIN)KIT,BRAKEPAD,R.AXLE,WW (INCL. SPACER AND PIN)
-
171910339 BRAKE PADSBRAKE PADS
-
171930860 BRAKE PADSBRAKE PADS
