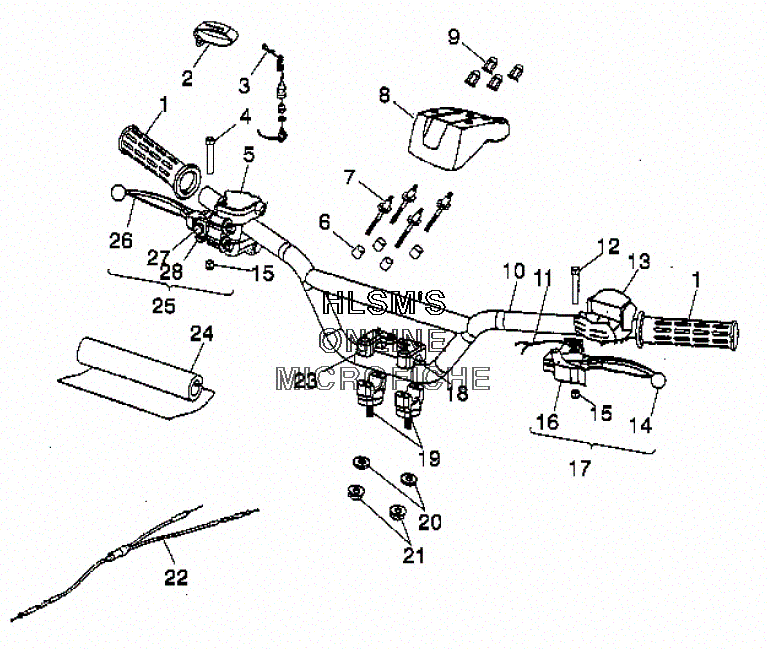

HANDLEBAR для Polaris SCRAMBLER 90X (A02EA09CB) (SONIC BLUE) - 2002 года выпуска
-
№АртикулНазвание
-
10450458 GRIP,HANDLE BARGRIP,HANDLE BAR
-
27080891 TETHER,WRIST BANDTETHER,WRIST BAND
-
30450550 SWITCH-SAFETYSWITCH-SAFETY
-
40450806 BOLT-BRAKE LVR (RIGHT)BOLT-BRAKE LVR (RIGHT)
-
50450689 THROTTLE ASSY.THROTTLE ASSY.
-
60450838 BUSHINGBUSHING
-
70450716 BOLT-STUDBOLT-STUD
-
80450644 COVER,HANDLE BARCOVER,HANDLE BAR
-
90450717 NUT-ROUND HEADNUT-ROUND HEAD
-
100450457 HANDLE BARHANDLE BAR
-
110450836 CABLE-SWTCH,SNSRCABLE-SWTCH,SNSR
-
120450807 BOLT-BRAKE LEVER (LEFT)BOLT-BRAKE LEVER (LEFT)
-
130450914 SWITCH-ASSY. (LEFT)SWITCH-ASSY. (LEFT)
-
140450693 LEVER,BRAKE (LEFT)LEVER,BRAKE (LEFT)
-
150450808 NUT-LOCKNUT-LOCK
-
160450692 HAND BRAKE-LOCKHAND BRAKE-LOCK
-
170450463 LEVER ASSY. (LEFT) (INCL. 12,14,15,16)LEVER ASSY. (LEFT) (INCL. 12,14,15,16)
-
180450460 CLAMP (LEFT),TOPCLAMP (LEFT),TOP
-
190450459 CLAMP-SADDLE,HANDLE BARCLAMP-SADDLE,HANDLE BAR
-
200450279 WASHERWASHER
-
210450276 NUT-LOCKNUT-LOCK
-
220450471 CABLE-THROTTLECABLE-THROTTLE
-
230450461 CLAMP (RIGHT),TOPCLAMP (RIGHT),TOP
-
240450986 ASSY., HANDLEBAR PADASSY., HANDLEBAR PAD
-
250450664 ASSY., RIGHT LEVER (INCL. 5,26-28)ASSY., RIGHT LEVER (INCL. 5,26-28)
-
260450694 LEVER,BRAKE (RIGHT)LEVER,BRAKE (RIGHT)
-
270450309 BOLT-HEXAGONBOLT-HEXAGON
-
280450994 BRACKET-BRAKE CABLEBRACKET-BRAKE CABLE
