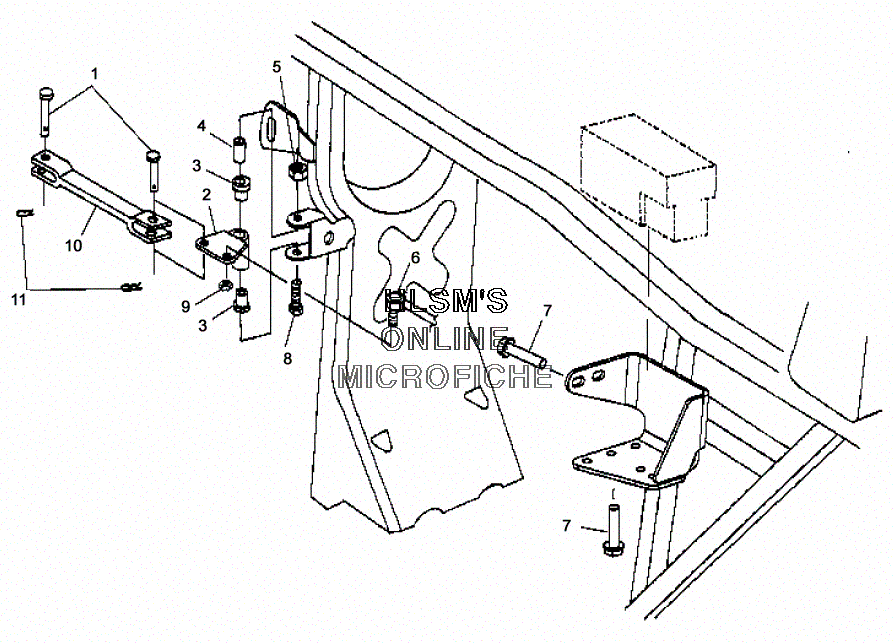

FRAME MOUNTING FOR GEAR SELECTOR для Polaris SPORTSMAN 400 (A02CH42AB) (PORCHE RED) - 2002 года выпуска
-
№АртикулНазвание
-
17661013 PIN,CLEVISPIN,CLEVIS
-
21040494-067 PIVOT,SHIFT,BLKPIVOT,SHIFT,BLK
-
35431107 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
45020850 TUBE,PIVOT,(INTERNAL)TUBE,PIVOT,(INTERNAL)
-
57542122 NUT-LOCKNUT-LOCK
-
77517386 SCREW,SCREW,
-
87512144 SCREWSCREW
-
105131277 ARM, SHIFT,(MACH)ARM, SHIFT,(MACH)
-
117661103 PIN, COTTERPIN, COTTER
