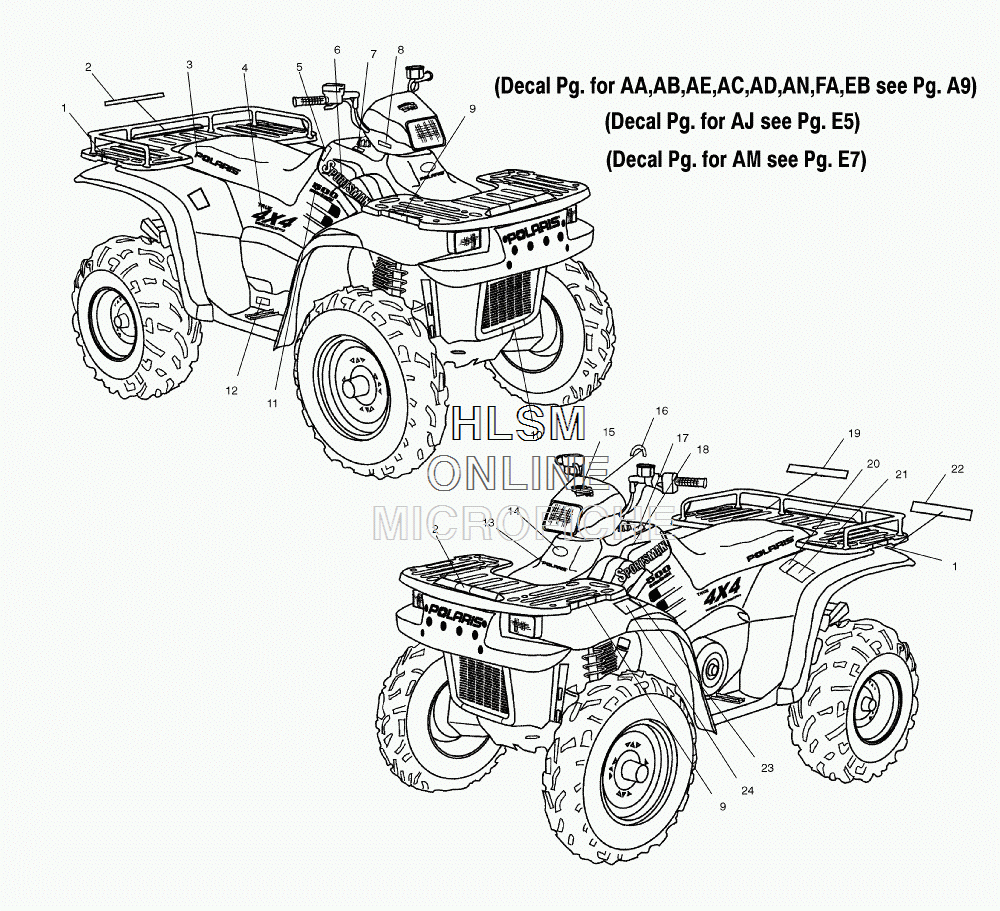

DECALS для Polaris SPORTSMAN 500 (A02CH50AL) (SONIC BLUE) - 2002 года выпуска
-
№АртикулНазвание
-
17079927 DECAL, RED REFLECTORDECAL, RED REFLECTOR
-
27170021 DECAL, WARNING FRONT/REAR RACKDECAL, WARNING FRONT/REAR RACK
-
37077202 DECAL, 'POLARIS', SEATDECAL, 'POLARIS', SEAT
-
47079774 UROCAL, 4X4 ON DEMAND TRUE 4WDUROCAL, 4X4 ON DEMAND TRUE 4WD
-
57078253 DECAL, AGE WARNINGDECAL, AGE WARNING
-
67079776 UROCAL, 'SPORTSMAN'UROCAL, 'SPORTSMAN'
-
77079780 DECAL, WARNING, SWITCH, AWDDECAL, WARNING, SWITCH, AWD
-
87078003 DECAL, HEADLIGHT ADJUSTMENTDECAL, HEADLIGHT ADJUSTMENT
-
97079926 DECAL, AMBER REFLECTORDECAL, AMBER REFLECTOR
-
107078045 DECAL, 'LIQUID COOLED', RADIATORDECAL, 'LIQUID COOLED', RADIATOR
-
117170491 DECAL, '500', FLAG, SIDE PANEL, LEFT HANDDECAL, '500', FLAG, SIDE PANEL, LEFT HAND
-
117170492 DECAL, '500', FLAG, SIDE PANEL, RIGHT HANDDECAL, '500', FLAG, SIDE PANEL, RIGHT HAND
-
127078577 DECAL, DRAIN RECOILDECAL, DRAIN RECOIL
-
137079773 DECAL, 'POLARIS', FRONT COVERDECAL, 'POLARIS', FRONT COVER
-
147078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
157170472 UROCAL, 'FREEDOM SERIES'UROCAL, 'FREEDOM SERIES'
-
167079520 DECAL, IGNITIONDECAL, IGNITION
-
177079604 DECAL, WARNING, OVERRIDE, AWDDECAL, WARNING, OVERRIDE, AWD
-
187170489 DECAL, TANK SIDE, FLAG, LEFT HANDDECAL, TANK SIDE, FLAG, LEFT HAND
-
187170490 DECAL, TANK SIDE, FLAG, RIGHT HANDDECAL, TANK SIDE, FLAG, RIGHT HAND
-
197079977 DECAL, IRS, REARDECAL, IRS, REAR
-
207077920 DECAL, PASSENGER WARNINGDECAL, PASSENGER WARNING
-
217079084 DECAL, TIRE PRESSUREDECAL, TIRE PRESSURE
-
227079959 DECAL, 'POLARIS', REARDECAL, 'POLARIS', REAR
-
237079085 DECAL, DISCRETIONARY WARNINGDECAL, DISCRETIONARY WARNING
-
247079083 DECAL, WARNING, GENERAL, CPSCDECAL, WARNING, GENERAL, CPSC
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - REAR W/ FOOT PEDAL
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROLS - MASTER CYLINDER W/ BRAKE LINES
- CONTROLS - THROTTLE ASSY.
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- • DECALS
- DIFFERENTIAL - FRONT
- DRIVESHAFT - FRONT
- DRIVESHAFT - INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FRAME MOUNTING FOR GEAR SELECTOR
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE - CASE AND SNORKLE
- GEARCASE - INTERNAL COMPONENTS
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- OIL FILTER
- OIL PUMP
- OIL TANK (IF BUILT AFTER 1/02/02)
- OIL TANK (IF BUILT BEFORE 1/02/02)
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
