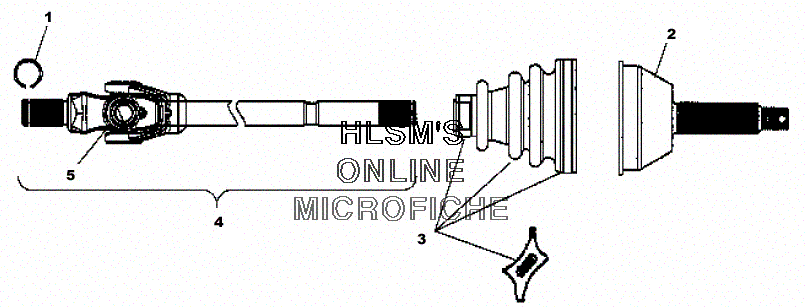

DRIVESHAFT - FRONT для Polaris SPORTSMAN 700 (A02CH68AC) (YELLOW) - 2002 года выпуска
-
№АртикулНазвание
-
1A1380153 DRIVESHAFT, FRONT (IF BUILT BEFORE 5/01/02)DRIVESHAFT, FRONT (IF BUILT BEFORE 5/01/02)
-
1A1380199 DRIVE SHAFT ASSY., FRONT (IF BUILT AFTER 5/01/02)DRIVE SHAFT ASSY., FRONT (IF BUILT AFTER 5/01/02)
-
17670092 CIRCLIP, DRIVESHAFTCIRCLIP, DRIVESHAFT
-
21590327 JOINT-CV, SERV (USE W/1380153)JOINT-CV, SERV (USE W/1380153)
-
21590358 JOINT-CV, SERV. (USE W/1380199)JOINT-CV, SERV. (USE W/1380199)
-
32201015 BOOT REPLACEMENT KIT (INCL. CLAMPS AND GREASE)BOOT REPLACEMENT KIT (INCL. CLAMPS AND GREASE)
-
41380186 SHAFT, DRIVE SERV (INCL. 5)SHAFT, DRIVE SERV (INCL. 5)
-
53260104 CROSS AND BEARING KITCROSS AND BEARING KIT
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD W/ CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR
- DIFFERENTIAL - REAR MOUNTING
- • DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- DRIVESHAFT - REAR
- DRIVESHAFT - REAR INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT - FRAME
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL DIPSTICK
- OIL PUMP
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR (IF BUILT AFTER 9/03/01)
- RACK AND BUMPER MOUNTING - REAR (IF BUILT BEFORE 9/03/01)
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
