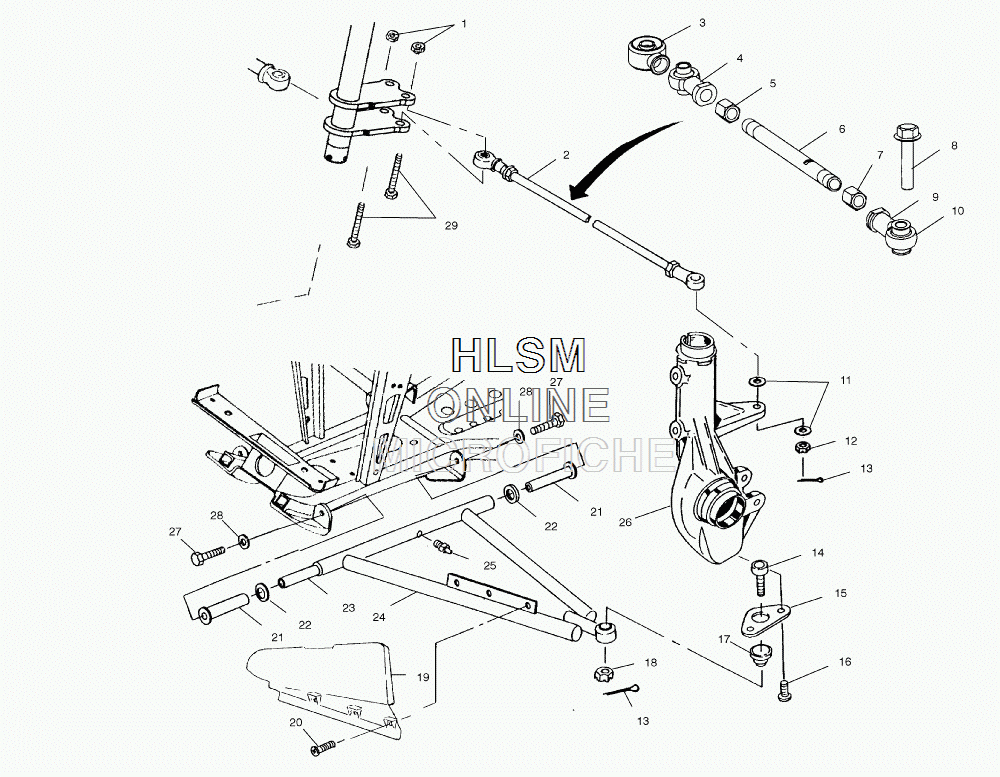

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris SPORTSMAN X (A02CH50AJ) (SONIC BLUE) - 2002 года выпуска
-
№АртикулНазвание
-
17542403 NUT, FLEXLOCNUT, FLEXLOC
-
21820805 ASM., TIE RODASM., TIE ROD
-
35411291 BOOT, SEAL, ROD ENDBOOT, SEAL, ROD END
-
47061034 ROD END, RIGHT HANDROD END, RIGHT HAND
-
57542711 NUT, JAMNUT, JAM
-
65020926 TIE RODTIE ROD
-
77547028 NUT, JAM, LEFT HANDNUT, JAM, LEFT HAND
-
87517909 BOLTBOLT
-
97061054 ROD END, LEFT HANDROD END, LEFT HAND
-
105411920 BOOT, SEAL, ROD ENDBOOT, SEAL, ROD END
-
117556099 WASHER, FLATWASHER, FLAT
-
127547177 NUTNUT
-
137661203 PIN, COTTERPIN, COTTER
-
147080927 JOINT, BALLJOINT, BALL
-
155211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
167512284 SCREWSCREW
-
175410548 BOOT, RUBBERBOOT, RUBBER
-
187542438 NUT, CASTLENUT, CASTLE
-
195431837 SHIELD, CV JOINT, LEFT HANDSHIELD, CV JOINT, LEFT HAND
-
195431838 SHIELD, CV JOINT, RIGHT HANDSHIELD, CV JOINT, RIGHT HAND
-
207512084 SCREWSCREW
-
215433066 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
225020677 BUSHINGBUSHING
-
235020681 SHAFT, A-ARMSHAFT, A-ARM
-
242201607 KIT, A-FRAME, LEFT HANDKIT, A-FRAME, LEFT HAND
-
242201608 KIT, A-FRAME, RIGHT HANDKIT, A-FRAME, RIGHT HAND
-
257080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
277512492 SCREWSCREW
-
287552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
297515415 SCREWSCREW
