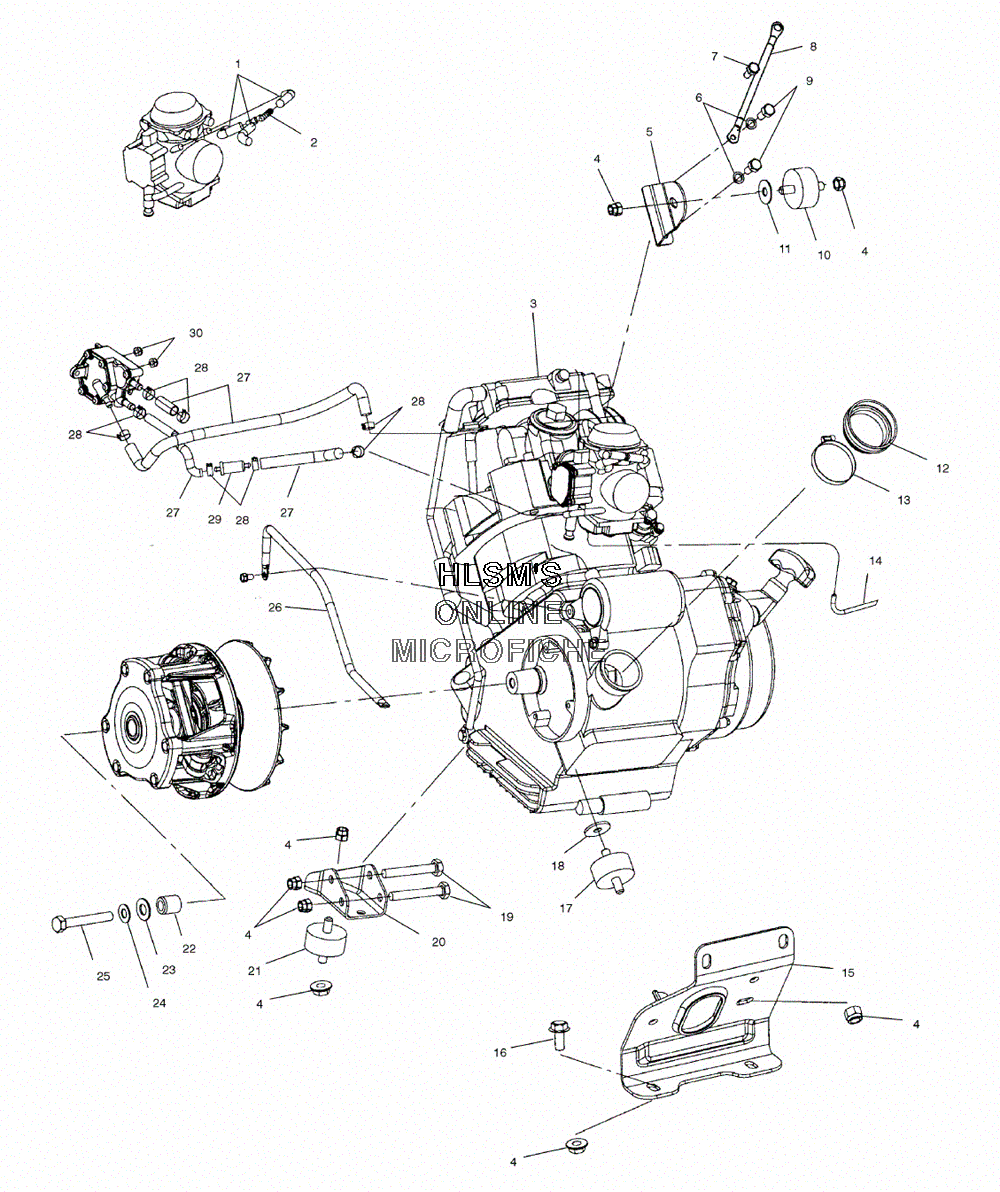

MOUNTING - ENGINE для Polaris MAGNUM 330 4X4 (A03CD32AA) (SILVER VAPOR METALLIC) - 2003 года выпуска
-
№АртикулНазвание
-
18450003-1525 FUEL LINE (1/4 ID) (1525 CM.) (OPT.)FUEL LINE (1/4 ID) (1525 CM.) (OPT.)
-
27052075 FITTING, TEEFITTING, TEE
-
31211750 ENGINEENGINE
-
47547108 NUTNUT
-
55243641-067 BRACKET, MOTOR MOUNT (BLACK)BRACKET, MOTOR MOUNT (BLACK)
-
67552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
77512232 BOLTBOLT
-
84010132 CABLE, GROUND ENGINECABLE, GROUND ENGINE
-
97512315 BOLTBOLT
-
105412248 MOUNT, RUBBER 45 DUROMOUNT, RUBBER 45 DURO
-
117555823 WASHERWASHER
-
125411721 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
137080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
148360009-600 FUEL LINE (1/8 ID) (600 CM.) (OPT.)FUEL LINE (1/8 ID) (600 CM.) (OPT.)
-
151013133-067 MOUNT, ENGINE (REAR/ BLACK)MOUNT, ENGINE (REAR/ BLACK)
-
167517289 SCREWSCREW
-
173021119 MOUNT, RUBBER 60 DURO (REAR)MOUNT, RUBBER 60 DURO (REAR)
-
187555815 WASHER, FLATWASHER, FLAT
-
197515417 SCREWSCREW
-
205243288-067 MOUNT, 325 (BLACK/ LOWER/ FRONT)MOUNT, 325 (BLACK/ LOWER/ FRONT)
-
213021181 MOUNT, RUBBER ENGINE 45 DUROMOUNT, RUBBER ENGINE 45 DURO
-
225430261 BUSHING , RETAINING BOLTBUSHING , RETAINING BOLT
-
235210748 WASHERWASHER
-
247575202 WASHER LOCKWASHER LOCK
-
257512566 BOLTBOLT
-
264010095 CABLE, BATTERY/ ENGINE (BLACK)CABLE, BATTERY/ ENGINE (BLACK)
-
278450103 FUEL HOSE, 1/4'' DP SAE J30R9 (OPT.)FUEL HOSE, 1/4'' DP SAE J30R9 (OPT.)
-
287080003 CLAMP, HOSECLAMP, HOSE
-
292530009 FILTER, SMALL IN LINEFILTER, SMALL IN LINE
-
307546601 NUT, NYLOKNUT, NYLOK
