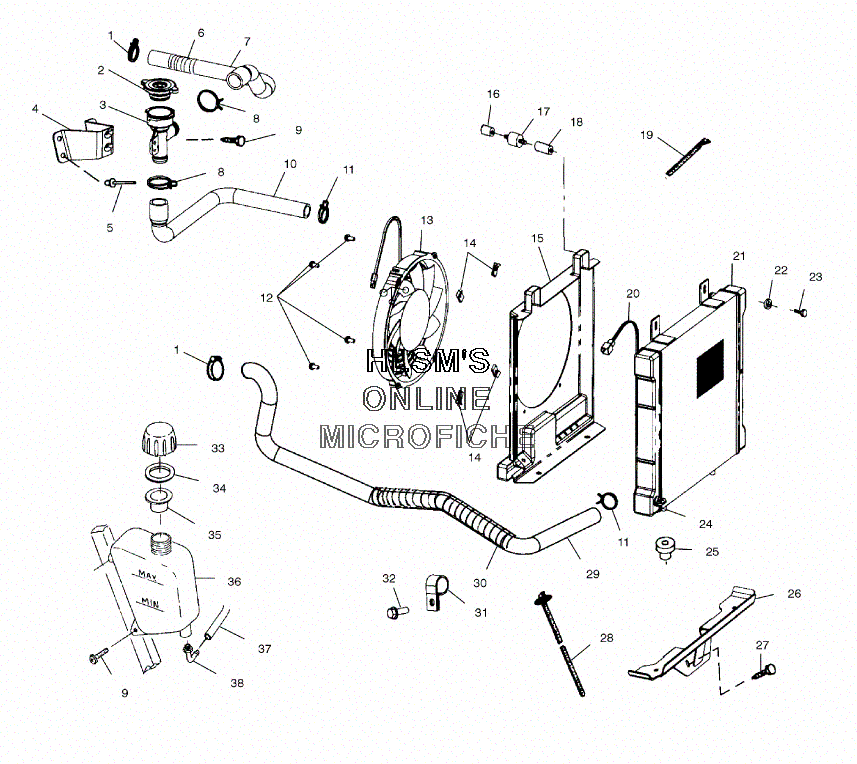

COOLING SYSTEM для Polaris SPORTSMAN 400 4X4 (A03CH42AA) (CAMO GREEN METALLIC) - 2003 года выпуска
-
№АртикулНазвание
-
17080696 CLAMP, HOSE 1.25 WORM DRIVECLAMP, HOSE 1.25 WORM DRIVE
-
21240044 CAP, PRESSURE 13 PSICAP, PRESSURE 13 PSI
-
35433364 FILLER, REMOTE COOLANTFILLER, REMOTE COOLANT
-
45243505 BRACKET, REMOTE COOLANT FILL PLTD.BRACKET, REMOTE COOLANT FILL PLTD.
-
57661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
65433948 FLEXGUARD, PLASTIC GUARDFLEXGUARD, PLASTIC GUARD
-
75411783 HOSE, ENGINE (UPPER)HOSE, ENGINE (UPPER)
-
87080827 CLAMP, ROTO SPRING (1'')CLAMP, ROTO SPRING (1'')
-
97512084 SCREWSCREW
-
105411632 HOSE, FILLER NECKHOSE, FILLER NECK
-
117080826 CLAMP, ROTO CLIPCLAMP, ROTO CLIP
-
127517659 SCREWSCREW
-
132410123 FAN AND MOTOR, SPAL ASSY.FAN AND MOTOR, SPAL ASSY.
-
147670111 CLIP, UCLIP, U
-
155433059 SHROUD, FAN ATVSHROUD, FAN ATV
-
167547069 NUTSERT, HEXNUTSERT, HEX
-
173110032 MOUNT, RUBBERMOUNT, RUBBER
-
185020572 SPACER, MOUNTSPACER, MOUNT
-
197080492 STRAP, WEATHER RESIST (BLACK)STRAP, WEATHER RESIST (BLACK)
-
204010161 SENSOR, THERMAL/ HARNESSSENSOR, THERMAL/ HARNESS
-
211240045 RADIATORRADIATOR
-
227552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
237512240 BOLTBOLT
-
247052296 VALVE, PLASTIC RAD/ COOLER DRAINVALVE, PLASTIC RAD/ COOLER DRAIN
-
255410584 BUSHING, MOUNT (LOWER/ RED)BUSHING, MOUNT (LOWER/ RED)
-
265243503-067 BRACKET, RADIATOR (LOWER/ BLACK)BRACKET, RADIATOR (LOWER/ BLACK)
-
277512232 BOLTBOLT
-
287080890 STRAP, PANDUIT PANEL TIESTRAP, PANDUIT PANEL TIE
-
295411782 HOSE, ENGINE (LOWER)HOSE, ENGINE (LOWER)
-
305521550 PLASTIC, HOSEGUARD (18'')PLASTIC, HOSEGUARD (18'')
-
317080807 CLAMP, HOSECLAMP, HOSE
-
327517386 SCREWSCREW
-
335430743 CAP, OVERFLOWCAP, OVERFLOW
-
345810279 GASKETGASKET
-
355433774 CAP, PLUG9X (GRN) FLEX TEMPCAP, PLUG9X (GRN) FLEX TEMP
-
365431673 TANK, SURGETANK, SURGE
-
378450003-1525 FUEL LINE (1/4 ID) (1525 CM.)FUEL LINE (1/4 ID) (1525 CM.)
-
387052065 FITTING (90 DEGREE)FITTING (90 DEGREE)
