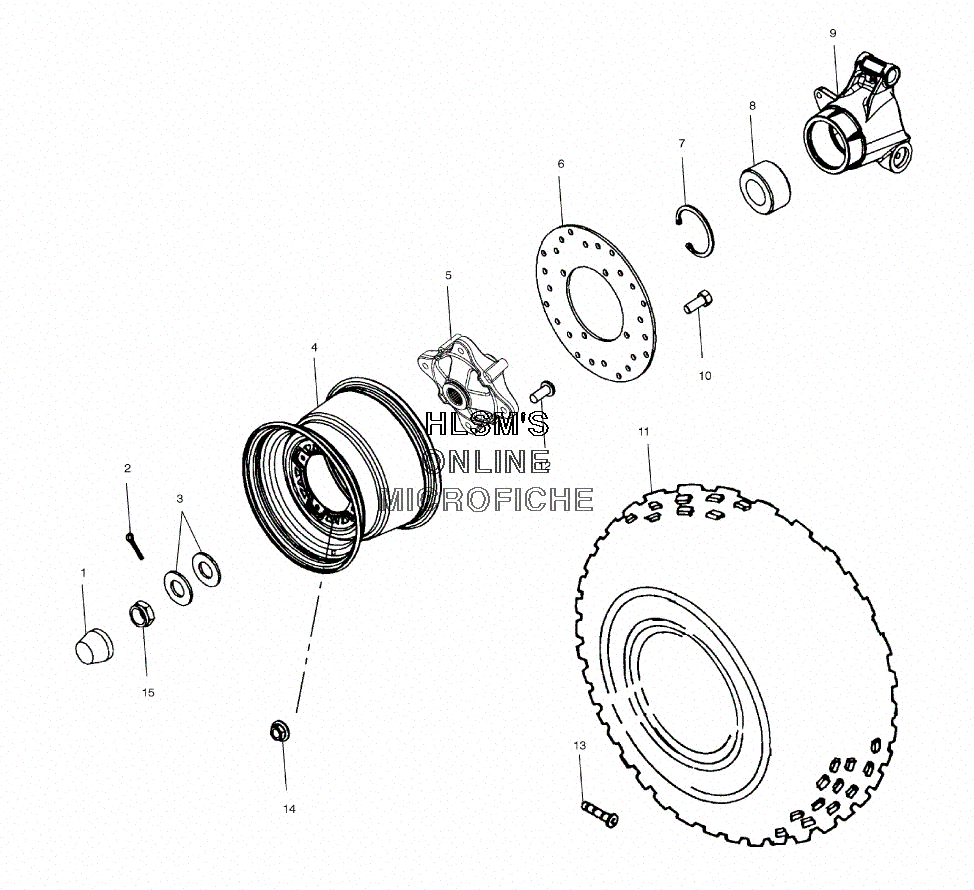

WHEEL - REAR для Polaris SPORTSMAN 500 HO 4X4 (A03CH50AD) (SHADOW GRASS) - 2003 года выпуска
-
№АртикулНазвание
-
15411164 DUST COVER, HUBDUST COVER, HUB
-
27661404 PIN, COTTERPIN, COTTER
-
37555796 WASHER, CONEWASHER, CONE
-
41520564-067 WELD, RIM (REAR/ BLACK) (12 X 8.0)WELD, RIM (REAR/ BLACK) (12 X 8.0)
-
55133361 HUB, WHEEL MACH (REAR)HUB, WHEEL MACH (REAR)
-
65244635 DISC, BRAKE (REAR) (8.625 X .158)DISC, BRAKE (REAR) (8.625 X .158)
-
77710440 RING, RETAININGRING, RETAINING
-
83585502 BEARING, CARRIER WHEELBEARING, CARRIER WHEEL
-
95133664 CARRIER-BEARING, WHEEL (MACH) (RIGHT)CARRIER-BEARING, WHEEL (MACH) (RIGHT)
-
107512325 BOLTBOLT
-
115411949 RAWHIDE GRIPRAWHIDE GRIP
-
127515513 STUDSTUD
-
131525017 VALVE, RIMVALVE, RIM
-
147547237 NUT, FLANGE TWO PIECE (3/8-24)NUT, FLANGE TWO PIECE (3/8-24)
-
157543005 NUT, CASTLENUT, CASTLE
