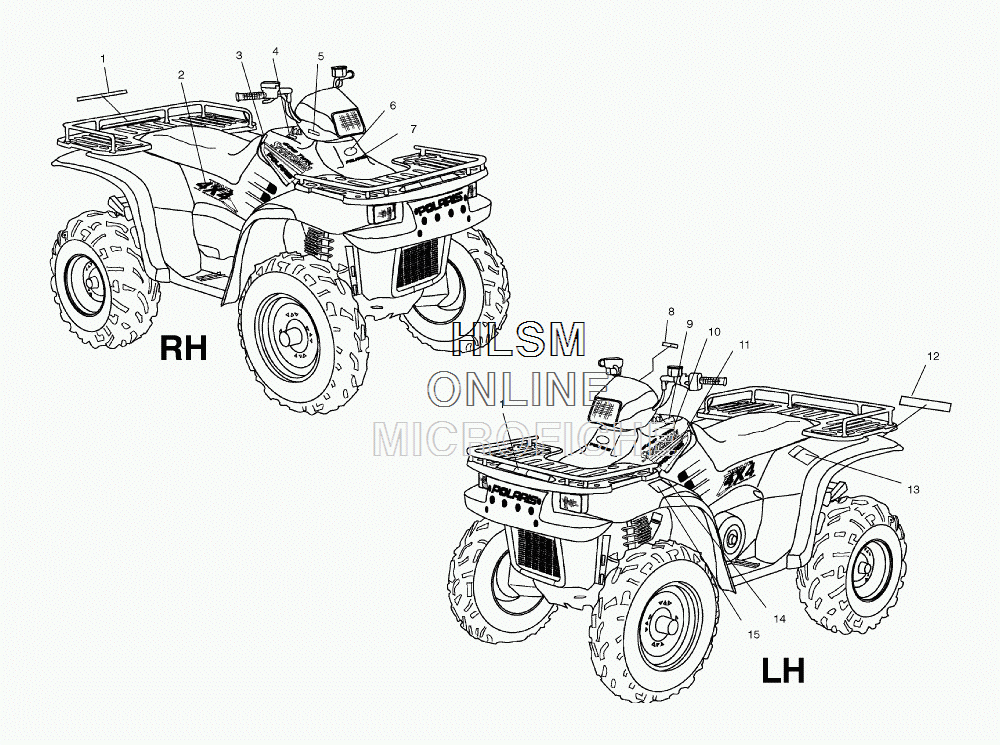

DECALS для Polaris SPORTSMAN 600 4X4 (A03CH59AF) (SILVER VAPOR METTALIC) - 2003 года выпуска
-
№АртикулНазвание
-
17170912 DECAL, WARNING, FRONT/REAR RACKDECAL, WARNING, FRONT/REAR RACK
-
27170737 DECAL, '4X4', SIDE PANEL, LEFT HAND (AF)DECAL, '4X4', SIDE PANEL, LEFT HAND (AF)
-
27170738 DECAL, '4X4', SIDE PANEL, RIGHT HAND (AF)DECAL, '4X4', SIDE PANEL, RIGHT HAND (AF)
-
37078253 DECAL, AGE WARNINGDECAL, AGE WARNING
-
47079780 DECAL, WARNING AWD SWITCHDECAL, WARNING AWD SWITCH
-
57078003 DECAL, HEADLIGHT ADJUSTMENTDECAL, HEADLIGHT ADJUSTMENT
-
67078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
77170694 UROCAL, 'POLARIS', FRONT COVERUROCAL, 'POLARIS', FRONT COVER
-
87079672 DECAL, FOOT BRAKEDECAL, FOOT BRAKE
-
97079604 DECAL, OVERRIDE SWITCH, AWDDECAL, OVERRIDE SWITCH, AWD
-
107170733 DECAL, 'SPRTMN 600', TANK SIDE, LEFT HAND (AF)DECAL, 'SPRTMN 600', TANK SIDE, LEFT HAND (AF)
-
107170734 DECAL, 'SPRTMN 600', TANK SIDE, RIGHT HAND (AF)DECAL, 'SPRTMN 600', TANK SIDE, RIGHT HAND (AF)
-
117170690 DECAL, 'POLARIS', SIDE PANEL, LEFT HANDDECAL, 'POLARIS', SIDE PANEL, LEFT HAND
-
117170691 DECAL, 'POLARIS', SIDE PANEL, RIGHT HANDDECAL, 'POLARIS', SIDE PANEL, RIGHT HAND
-
127079959 DECAL, 'POLARIS', REARDECAL, 'POLARIS', REAR
-
137170732 DECAL, TIRE PRESSURE/LOADDECAL, TIRE PRESSURE/LOAD
-
147171383 DECAL, DISCRETIONARY WARNINGDECAL, DISCRETIONARY WARNING
-
157079083 DECAL, WARNING, GENERAL, CPSCDECAL, WARNING, GENERAL, CPSC
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROLS - FRONT MASTER CYLINDER AND LINES
- CONTROLS - THROTTLE
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD W/ CYLINDER
- • DECALS
- DIFFERENTIAL - FRONT
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE - REAR
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - REAR GEARCASE
- MOUNTING - TRANSMISSION
- OIL DIPSTICK
- OIL PUMP
- PROPSHAFT - REAR
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- REAR CAB- SEAT AND MAIN FRAME
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
