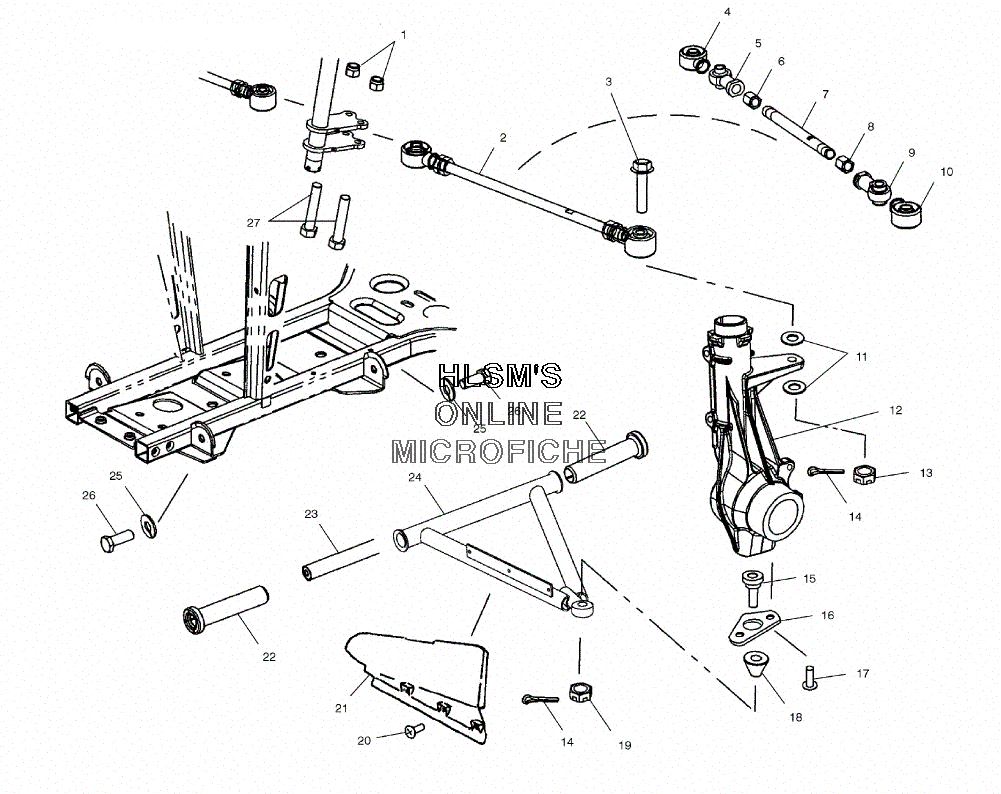

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris SPORTSMAN 700 4X4 (A03CH68AH) (SONIC BLUE METALLIC) - 2003 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
21820805 TIE, ROD ASSY.TIE, ROD ASSY.
-
37517909 BOLT, HEX WASHER HEADBOLT, HEX WASHER HEAD
-
45411291 SEAL, BOOT ROD END (1/2 IN)SEAL, BOOT ROD END (1/2 IN)
-
57061034 ROD, END (RIGHT)ROD, END (RIGHT)
-
67542711 NUT, JAMNUT, JAM
-
75020926 ROD, TIEROD, TIE
-
87547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
97061054 ROD, END (10MM) (LEFT) (42 DEG)ROD, END (10MM) (LEFT) (42 DEG)
-
105411920 BOOT, SEAL ROD END (10MM)BOOT, SEAL ROD END (10MM)
-
117556099 WASHERWASHER
-
137547177 NUT, LOCKNUT, LOCK
-
147661203 PIN COTTERPIN COTTER
-
157080927 BALL JOINT (52 DEG)BALL JOINT (52 DEG)
-
165211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
177512284 BOLT, SOCKETBOLT, SOCKET
-
185410548 BOOT, RUBBERBOOT, RUBBER
-
197542438 NUT, CASTLENUT, CASTLE
-
207512084 SCREWSCREW
-
215435028-070 SHIELD, CV (FRONT/BLACK/LEFT)SHIELD, CV (FRONT/BLACK/LEFT)
-
215435029-070 SHIELD, CV (FRONT/BLACK/RIGHT)SHIELD, CV (FRONT/BLACK/RIGHT)
-
225434551 BUSHING, A-ARM LONG (BLACK)BUSHING, A-ARM LONG (BLACK)
-
235133806 SHAFT, A-ARMSHAFT, A-ARM
-
242202274 KIT, A-FRAME (LEFT) (1541740) (INCL. 14, 22, 23, 25, 26)KIT, A-FRAME (LEFT) (1541740) (INCL. 14, 22, 23, 25, 26)
-
242202275 KIT, A-FRAME (RIGHT) (1541741) (INCL. 14, 22, 23, 25, 26)KIT, A-FRAME (RIGHT) (1541741) (INCL. 14, 22, 23, 25, 26)
-
257571611 WASHER, LOCKWASHER, LOCK
-
267512492 SCREWSCREW
-
277515415 SCREWSCREW
