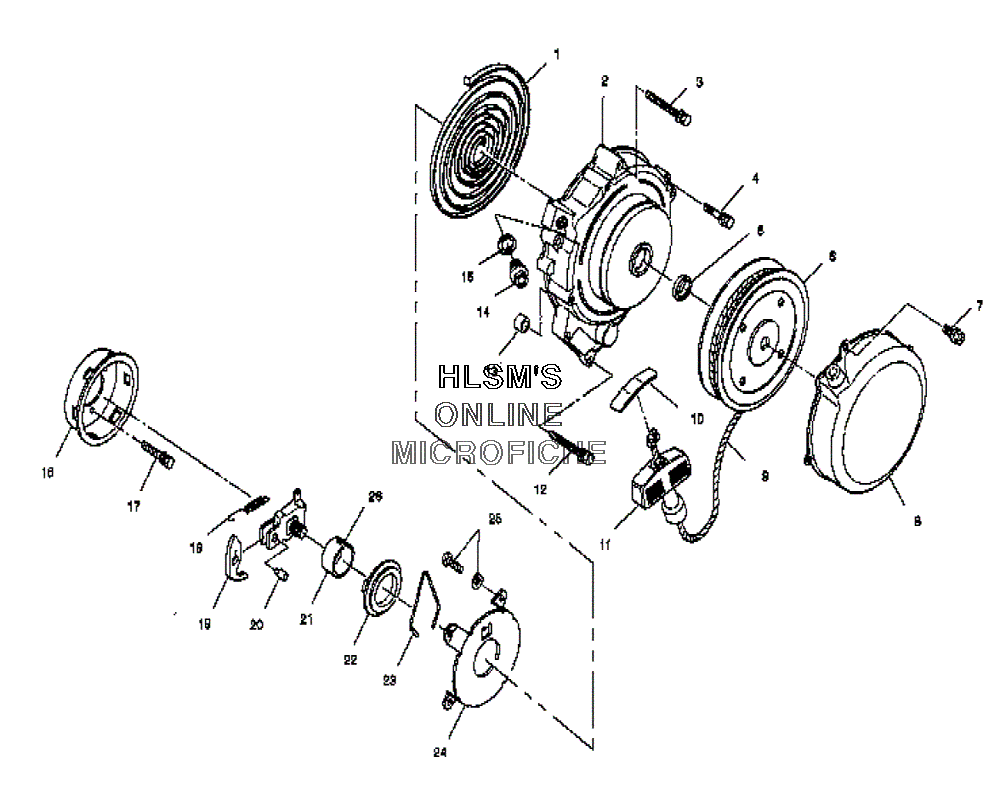

STARTER - RECOIL для Polaris TRAIL BLAZER 250 (A03BA25CA) (YELLOW) - 2003 года выпуска
-
№АртикулНазвание
-
13083815 SPRING, SPIRALSPRING, SPIRAL
-
23083924 STARTER, RECOIL COMP. (INCL. 1, 2, 5, 11, 18, 26)STARTER, RECOIL COMP. (INCL. 1, 2, 5, 11, 18, 26)
-
23083911 CASE, STARTER B UNITCASE, STARTER B UNIT
-
33082926 PLUGPLUG
-
43082228 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
53083817 GROMMETGROMMET
-
63083814 REEL, COMP.REEL, COMP.
-
73083826 BOLT, FLANGEBOLT, FLANGE
-
83083914 CASE, STARTER COMP.CASE, STARTER COMP.
-
93083828 ROPE ASSY. (INCL. 9, 11)ROPE ASSY. (INCL. 9, 11)
-
92870621 ROPE, 100 FT NYLOK STARTER (OPT)ROPE, 100 FT NYLOK STARTER (OPT)
-
103083660 CAP, KNOBCAP, KNOB
-
113083659 KNOB, STARTERKNOB, STARTER
-
123083729 BOLT AND WASHERBOLT AND WASHER
-
133083669 BUSHING, STARTERBUSHING, STARTER
-
143086749 PLUGPLUG
-
153082956 GASKETGASKET
-
163083915 PULLEY, STARTINGPULLEY, STARTING
-
173081665 BOLTBOLT
-
183083827 SPRING, RETURNSPRING, RETURN
-
193083819 RATCHETRATCHET
-
203083820 PIN, RATCHETPIN, RATCHET
-
213083818 HOOK, SPRINGHOOK, SPRING
-
223083821 GUIDE, RATCHETGUIDE, RATCHET
-
233083912 SPRING, FRICTIONSPRING, FRICTION
-
243083925 CASE, SPRINGCASE, SPRING
-
253084176 SCREW AND WASHERSCREW AND WASHER
-
263083913 GUIDE COMP.GUIDE COMP.
