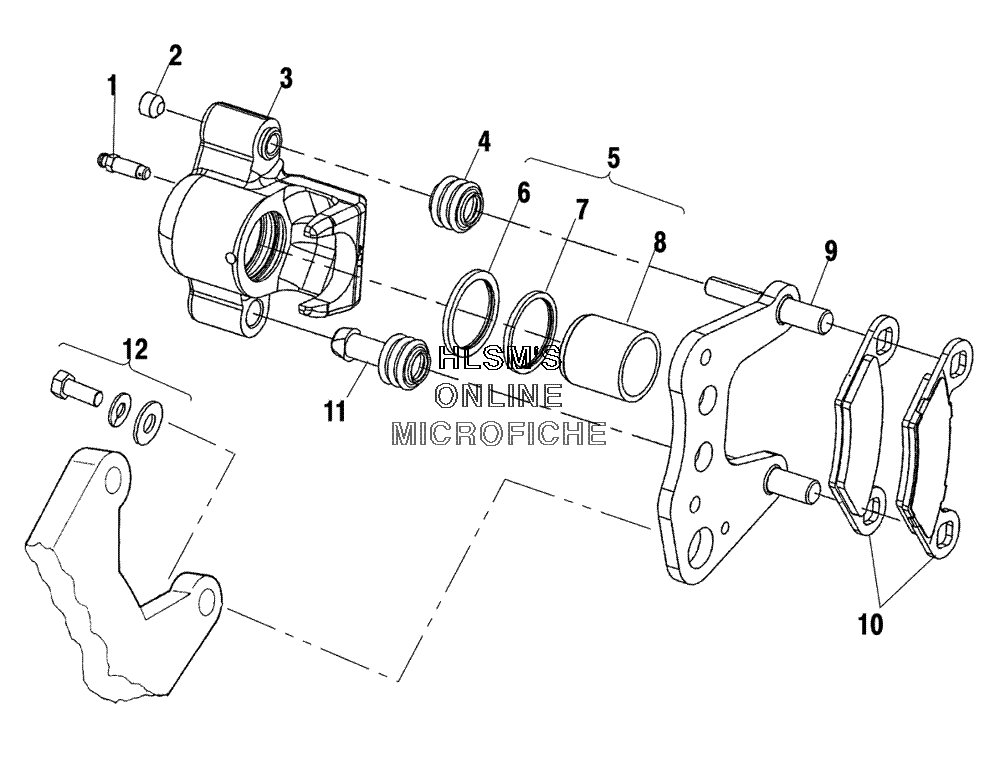

BRAKE - FRONT для Polaris MAGNUM 330 2X4 (A04CB32AA) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
17080352 SCREW, BLEEDERSCREW, BLEEDER
-
27515489 SCREWSCREW
-
35133407 CALIPER BRAKE (LEFT)CALIPER BRAKE (LEFT)
-
35133408 CALIPER BRAKE (RIGHT)CALIPER BRAKE (RIGHT)
-
31930642 BOOT BRAKE, KIT (FRONT)BOOT BRAKE, KIT (FRONT)
-
45410494 BOOT, PIN SEALBOOT, PIN SEAL
-
51930665 PISTON AND SEAL, KIT (INCL. 6-8)PISTON AND SEAL, KIT (INCL. 6-8)
-
65410779 RING, SQUARE MOLDEDRING, SQUARE MOLDED
-
75410780 RING, SQUARE MOLDEDRING, SQUARE MOLDED
-
85132294 PISTON AND SEAL, KITPISTON AND SEAL, KIT
-
91910411 MOUNT CALIPER, ASSYMOUNT CALIPER, ASSY
-
102202412 BRAKE PAD KIT ASSY (FRONT)BRAKE PAD KIT ASSY (FRONT)
-
115410495 BOOT, BUSHINGBOOT, BUSHING
-
127512365 SCREW, CAPSCREW, CAP
-
127558402 WASHER, FLATWASHER, FLAT
-
127552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
121910681 CALIPER, BRAKE ASSY (LEFT) (INCL. 1-3, 6-9, 11)CALIPER, BRAKE ASSY (LEFT) (INCL. 1-3, 6-9, 11)
-
121910682 CALIPER, BRAKE ASSY (RIGHT) (INCL. 1-3, 6-9, 11)CALIPER, BRAKE ASSY (RIGHT) (INCL. 1-3, 6-9, 11)
