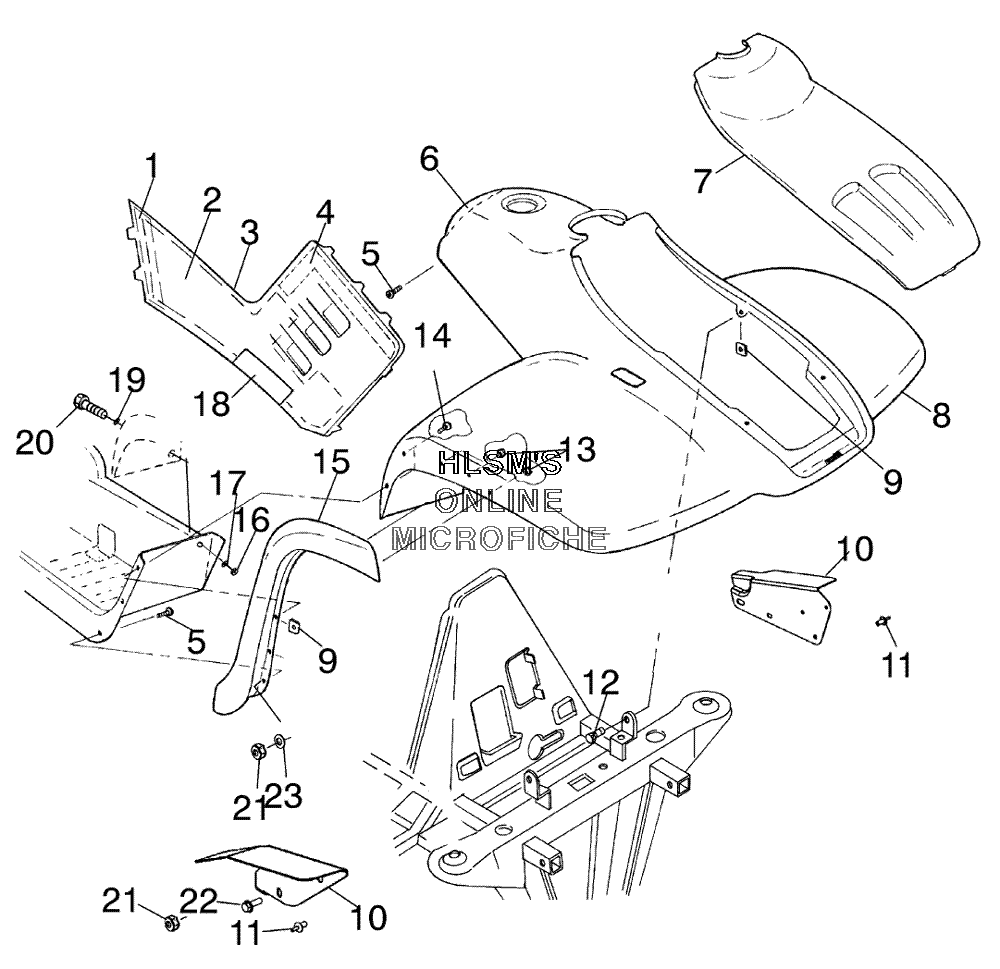

FENDER - FRONT W/ SIDE PANELS для Polaris MAGNUM 330 4X4 (A04CD32AA) (SILVER MET.) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
15811491 FOIL (RIGHT)FOIL (RIGHT)
-
25812484 FOIL (RIGHT)FOIL (RIGHT)
-
32632284-382 PANEL/FOAM ASSY (SILVER VAPOR METALLIC/LEFT)PANEL/FOAM ASSY (SILVER VAPOR METALLIC/LEFT)
-
32632633-382 PANEL/FOIL ASSY (RIGHT/SILVER VAPOR METALLIC)PANEL/FOIL ASSY (RIGHT/SILVER VAPOR METALLIC)
-
45811797 FOAM (LEFT)FOAM (LEFT)
-
57512232 BOLTBOLT
-
65811801 FOAM (FRONT)FOAM (FRONT)
-
75435110-382 COVER (SILVER VAPOR METALLIC/FRONT)COVER (SILVER VAPOR METALLIC/FRONT)
-
82632747-382 CAB ASSY, FOAM/FRONT SVC (SILVER MET) (INCL.WARNING DECALS)CAB ASSY, FOAM/FRONT SVC (SILVER MET) (INCL.WARNING DECALS)
-
97670057 NUT, SPEEDNUT, SPEED
-
105245394-067 SHIELD SPLASH (LEFT/BLACK)SHIELD SPLASH (LEFT/BLACK)
-
105246021-067 GUARD SPLASH (RIGHT/BLACK)GUARD SPLASH (RIGHT/BLACK)
-
117621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
127515158 SCREWSCREW
-
137670135 NUT SPEED, 3/16NUT SPEED, 3/16
-
147517312 SCREWSCREW
-
155431798-070 GUARD MUDFLAP (FRONT/BLACK/LEFT)GUARD MUDFLAP (FRONT/BLACK/LEFT)
-
155431799-070 GUARD MUDFLAP (FRONT/BLACK/RIGHT)GUARD MUDFLAP (FRONT/BLACK/RIGHT)
-
167541925 NUT, NYLOK 10 24 YNUT, NYLOK 10 24 Y
-
177555792 WASHERWASHER
-
185812138 FOAM (LEFT)FOAM (LEFT)
-
197556034 WASHERWASHER
-
207512085 SCREWSCREW
-
217542122 NUT NYLOKNUT NYLOK
-
227512126 SCREWSCREW
-
237558221 WASHERWASHER
