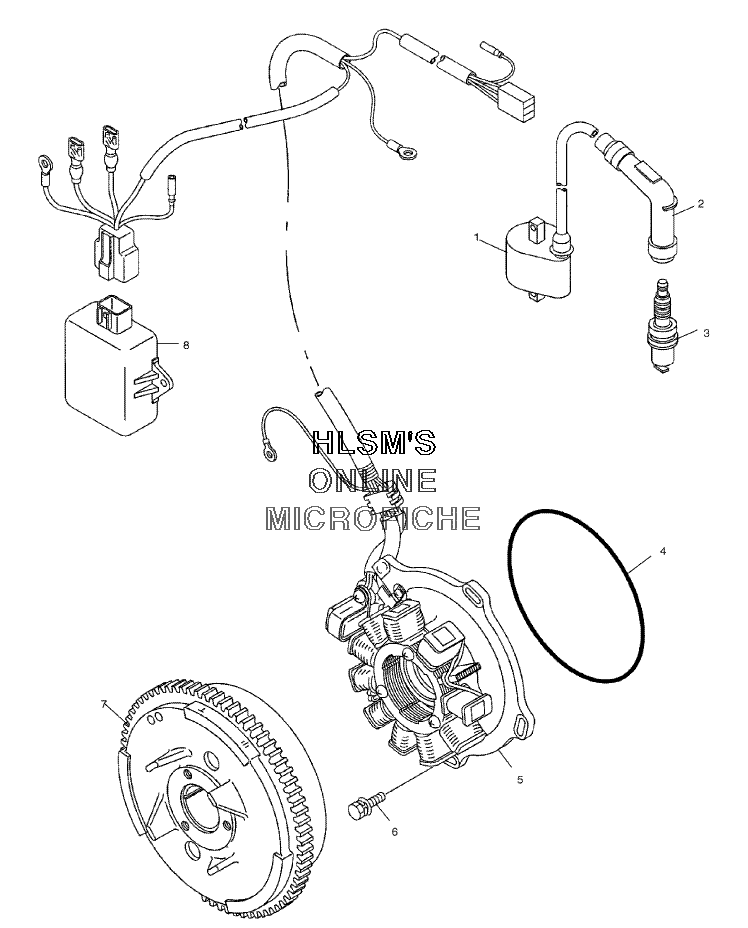

MAGNETO для Polaris MAGNUM 330 4X4 (A04CD32AB) (N.B.U. SUB) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
13087036 IGNITION COIL ASSY (INCL. 2)IGNITION COIL ASSY (INCL. 2)
-
13086484 IGNITION COIL ASSYIGNITION COIL ASSY
-
23087037 CAP SPARK PLUGCAP SPARK PLUG
-
33070172 SPARK PLUG, BKR6ESPARK PLUG, BKR6E
-
43084978 O-RINGO-RING
-
53089275 STATOR PLATE ASSYSTATOR PLATE ASSY
-
63081657 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
73087251 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
83088209 CDI SYSTEM ASSYCDI SYSTEM ASSY
