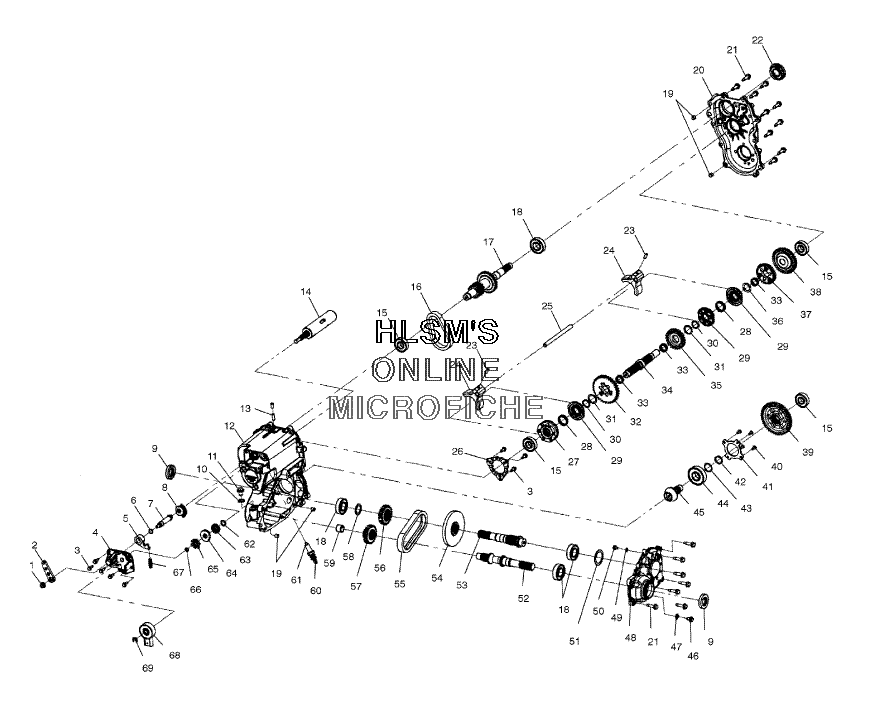

GEARCASE для Polaris MAGNUM 330 4X4 (A04CD32FB) (SILVER MET.) (CANADA) - 2004 года выпуска
-
№АртикулНазвание
-
13233961 NUT LOCK HEX FLANGE NYLON 5/16NUT LOCK HEX FLANGE NYLON 5/16
-
23233906 BELLCRANK SHIFT DRUMBELLCRANK SHIFT DRUM
-
33233826 SCREWSCREW
-
43233827 COVER SECTOR GEARSCOVER SECTOR GEARS
-
53233829 PAWL DETENTPAWL DETENT
-
63233869 O-RINGO-RING
-
73233831 SHAFT SHIFTSHAFT SHIFT
-
83233832 GEAR SECTOR (31T CUT TO 11T)GEAR SECTOR (31T CUT TO 11T)
-
93233788 SEAL TRIPLE LIPSEAL TRIPLE LIP
-
103233324 WASHERWASHER
-
113233711 PLUG, OIL FILLPLUG, OIL FILL
-
123233867 GEARCASE MAIN SECTIONGEARCASE MAIN SECTION
-
133233524 TUBE, VENTTUBE, VENT
-
143233910 DRUM SHIFTDRUM SHIFT
-
153233018 BEARINGBEARING
-
163233036 CHAIN, SILENT 34PCHAIN, SILENT 34P
-
173234029 SUB ASSY INPUT SHAFTSUB ASSY INPUT SHAFT
-
183233019 BEARINGBEARING
-
193233529 PIPE, KNOCKPIPE, KNOCK
-
203233865 COVER MAIN (LEFT)COVER MAIN (LEFT)
-
213233846 SCREW ROLL FORMINGSCREW ROLL FORMING
-
223233874 SEAL DUAL LIPSEAL DUAL LIP
-
233233859 PIN DOWELPIN DOWEL
-
243233858 FORK SHIFTFORK SHIFT
-
253233860 RAIL SHIFT SHAFT, C VERSIONRAIL SHIFT SHAFT, C VERSION
-
263233915 PLATE PARK 12 FACEPLATE PARK 12 FACE
-
273233916 DOG ENGAGEMENT, PARK 6 FACEDOG ENGAGEMENT, PARK 6 FACE
-
283233849 SPRING WAVESPRING WAVE
-
293233875 DOG ENGAGEMENT, 6 FACEDOG ENGAGEMENT, 6 FACE
-
303233850 RING RETAININGRING RETAINING
-
313233851 WASHERWASHER
-
323234027 GEAR, 6 FACE (33T)GEAR, 6 FACE (33T)
-
333233718 BEARING, NEEDLE SPLIT CAGEBEARING, NEEDLE SPLIT CAGE
-
343233853 SHAFT REVERSESHAFT REVERSE
-
353233854 SPROCKET, 6 FACE ENGAGEMENT (24T)SPROCKET, 6 FACE ENGAGEMENT (24T)
-
363233855 WASHERWASHER
-
373233912 GEAR. 6 FACE (28T)GEAR. 6 FACE (28T)
-
383233971 GEAR, HELICAL (34T)GEAR, HELICAL (34T)
-
393233764 GEAR HELICAL (50T)GEAR HELICAL (50T)
-
403233608 SCREWSCREW
-
413233609 COVER, BEARINGCOVER, BEARING
-
423233106 RING, SNAPRING, SNAP
-
433233357 SPACERSPACER
-
443233607 BEARING, BALLBEARING, BALL
-
453233606 SHAFT (10T)SHAFT (10T)
-
463233777 PLUG HEX FLANGEPLUG HEX FLANGE
-
473233254 WASHER, PLUGWASHER, PLUG
-
483233781 COVER OUTPUT (FRONT)COVER OUTPUT (FRONT)
-
493233583 SHIM (.450 X .265)SHIM (.450 X .265)
-
503233582 BUTTON, THRUSTBUTTON, THRUST
-
513233611 SHIMSHIM
-
523233625 SHAFT OUTPUT (FRONT)SHAFT OUTPUT (FRONT)
-
533233622 SHAFT OUTPUT (REAR)SHAFT OUTPUT (REAR)
-
543233621 GEAR, SPIRAL BEVEL (31T)GEAR, SPIRAL BEVEL (31T)
-
553233784 CHAIN SILENT, REXNORDCHAIN SILENT, REXNORD
-
563233782 SPROCKET (22T/18T SPLINE)SPROCKET (22T/18T SPLINE)
-
573233783 SPROCKET (22T/22T SPLINE)SPROCKET (22T/22T SPLINE)
-
583233619 WASHER, THRUSTWASHER, THRUST
-
593233552 BUSHING, GARLOCKBUSHING, GARLOCK
-
603234013 CLAMP TIECLAMP TIE
-
613233917 SUBASSY PARK LOCKOUTSUBASSY PARK LOCKOUT
-
623233548 O-RINGO-RING
-
633233839 GEAR SECTOR (16T)GEAR SECTOR (16T)
-
643233838 DISC LOCKOUTDISC LOCKOUT
-
653233909 STAR DETENTSTAR DETENT
-
663233076 O-RINGO-RING
-
673233830 SPRING COMPRESSIONSPRING COMPRESSION
-
683233835 SWITCH ROTARY, 6 PINSWITCH ROTARY, 6 PIN
-
693233834 RING RETAININGRING RETAINING
-
691341396 GEARCASE ASSY, DRUMGEARCASE ASSY, DRUM
