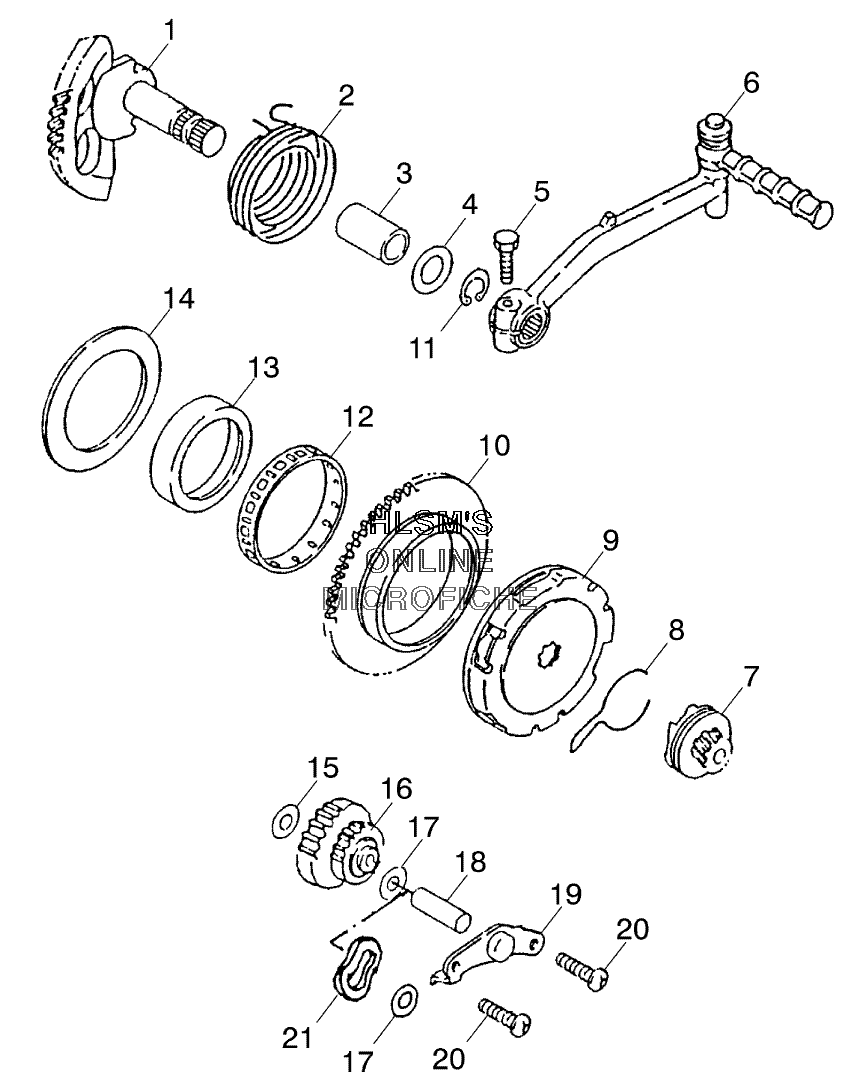

STARTER - RECOIL для Polaris PREDATOR 90 (A04KA09CB) (BLACK) (CANADA) - 2004 года выпуска
-
№АртикулНазвание
-
10450183 SHAFT, KICK ASSYSHAFT, KICK ASSY
-
20450184 SPRING REST, STARTER SHAFTSPRING REST, STARTER SHAFT
-
30450185 BUSHINGBUSHING
-
40450186 WASHERWASHER
-
50450883 BOLT HX WFBOLT HX WF
-
60450569 CRANK, KICK ASSYCRANK, KICK ASSY
-
70450190 PINION, KICK ASSYPINION, KICK ASSY
-
80450191 CLIP SPRINGCLIP SPRING
-
90450176 SET CLUTCH (28410-117-000)SET CLUTCH (28410-117-000)
-
100450171 WHEEL STARTERWHEEL STARTER
-
110450187 CIRCLIP EXTERNALCIRCLIP EXTERNAL
-
120450172 BEARING NEEDLEBEARING NEEDLE
-
130450173 BOSS GEARBOSS GEAR
-
140450174 WASHERWASHER
-
150450192 WASHERWASHER
-
160450178 IDLE GEAR ASSY (23422-117-000)IDLE GEAR ASSY (23422-117-000)
-
170450180 WASHERWASHER
-
180450682 PIN SHAFTPIN SHAFT
-
190450181 PLATE IDLE GEARPLATE IDLE GEAR
-
200450805 BOLT, HEX SOCKETBOLT, HEX SOCKET
-
210450193 WASHER, WAVEWASHER, WAVE
