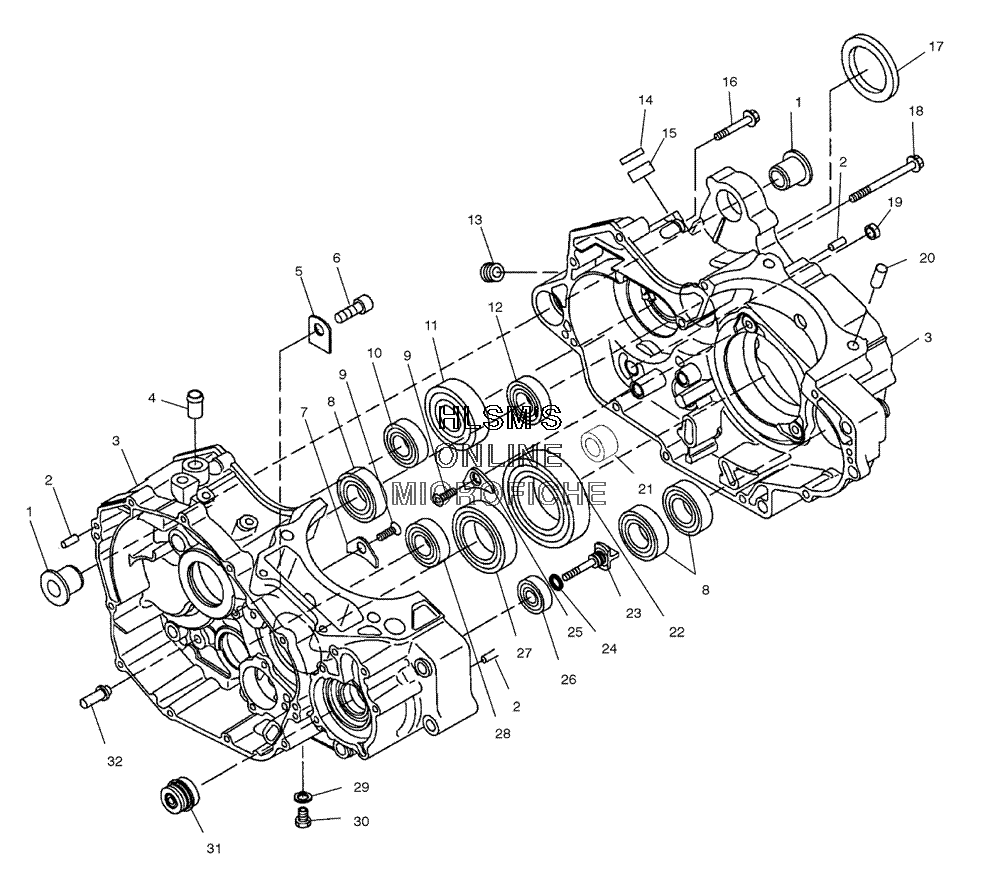

CRANKCASE для Polaris PREDATOR (A04GJ50AD) (BLAZING RED) - 2004 года выпуска
-
№АртикулНазвание
-
13087930 COLLARCOLLAR
-
23080103 PIN, DOWELPIN, DOWEL
-
33089436 CRANKCASE ASSY (INCL. ALL LESS 5, 6, 20, 29, 30)CRANKCASE ASSY (INCL. ALL LESS 5, 6, 20, 29, 30)
-
43085525 PIPE, AIR BREATHERPIPE, AIR BREATHER
-
53088138 PLATE, STOPPERPLATE, STOPPER
-
63089439 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
73087939 PLATE, PTO SIDEPLATE, PTO SIDE
-
83088137 BEARING, BALLBEARING, BALL
-
93087932 SCREW, COUNTER SUNKSCREW, COUNTER SUNK
-
103087935 BEARING, BALLBEARING, BALL
-
113087929 BEARING, BALLBEARING, BALL
-
123087928 BEARING, BALLBEARING, BALL
-
133084862 PLUG, BLINDPLUG, BLIND
-
143087926 SEAL, OILSEAL, OIL
-
153087925 BEARING, RELEASEBEARING, RELEASE
-
163089492 BOLT, FLANGEBOLT, FLANGE
-
173086510 SEAL, OIL, CRANKCASESEAL, OIL, CRANKCASE
-
183089493 BOLT, FLANGEBOLT, FLANGE
-
193087927 SEAL, OILSEAL, OIL
-
203087266 KNOCK, PIPEKNOCK, PIPE
-
213089440 BEARING, NEEDLEBEARING, NEEDLE
-
223087924 BEARING, BALLBEARING, BALL
-
233089437 WATER PUMP SHAFT, ASSY (INCL. 24, 26)WATER PUMP SHAFT, ASSY (INCL. 24, 26)
-
243087938 O RINGO RING
-
253087931 PLATE, MAG SIDEPLATE, MAG SIDE
-
263087937 BEARING, BALLBEARING, BALL
-
273087933 BEARING, ROLLERBEARING, ROLLER
-
283087934 BEARING, BALLBEARING, BALL
-
293082956 GASKETGASKET
-
303089438 PLUGPLUG
-
313084837 SEAL, MECHANICALSEAL, MECHANICAL
-
323086195 PIN STOPPERPIN STOPPER
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - FRONT AND REAR CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR
- BUMPER - FRONT
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CHAIN COVER
- COOLING SYSTEM
- • CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FRAME W/ EXTENTION
- FUEL PUMP
- FUEL TANK
- GEARCASE - CLUTCH
- GEARCASE ASSY.
- HANDLEBAR - CLUTCH LEVER
- HANDLEBAR - CONTROL ASSY.
- HEADLIGHT
- HOUSING - REAR W/ AXLE
- MAGNETO
- MAGNETO COVER
- MOUNTING - ENGINE
- OIL FILTER
- OIL PUMP
- OIL TANK
- SHOCK - FOX - GAS - RESERVOIR
- STARTING MOTOR
- STEERING POST
- SUSPENSI0N - REAR FOX SHOCK
- SUSPENSION - FRONT
- SUSPENSION - FRONT FOX SHOCK
- SUSPENSION - LOWER STEERING W/ TIE RODS
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
