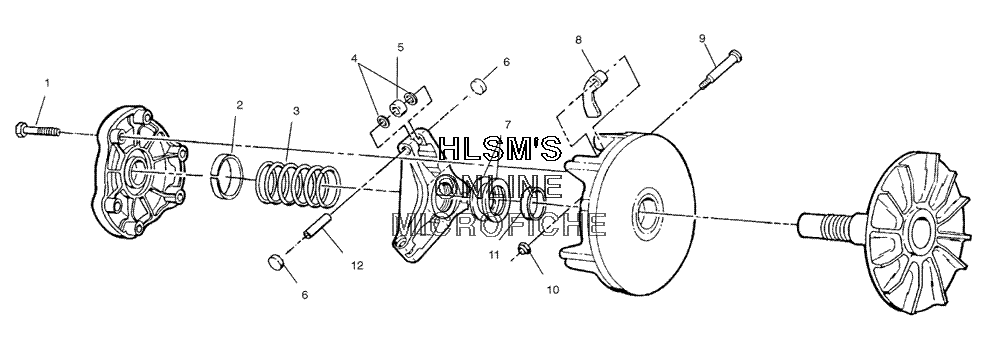

CLUTCH - DRIVE для Polaris SCRAMBLER 500 4X4 (A04BG50AA) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
17518062 SCREW, HEXAGON/FLANGESCREW, HEXAGON/FLANGE
-
23576510 BEARING, COVERBEARING, COVER
-
37041157 SPRING, CLUTCHSPRING, CLUTCH
-
45430945 WASHERWASHER
-
51321457 ROLLER/BUSHING ASSYROLLER/BUSHING ASSY
-
65431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
75210752 SPACER (.020)SPACER (.020)
-
75242981 SPACER (.025)SPACER (.025)
-
75210753 SPACER (.032)SPACER (.032)
-
75210754 SPACER (.050)SPACER (.050)
-
85630710 WT, SHIFT 10WHWT, SHIFT 10WH
-
97512266 BOLT, SHOULDERBOLT, SHOULDER
-
107541906 NUT FLEXLOCNUT FLEXLOC
-
113576504 BUSHING, MOVEABLE (1/2")BUSHING, MOVEABLE (1/2")
-
125020422 PIN ROLLERPIN ROLLER
-
121321976 DRIVE CLUTCH, WIDE ASSY (INCL. ALL LESS 3, 8)DRIVE CLUTCH, WIDE ASSY (INCL. ALL LESS 3, 8)
