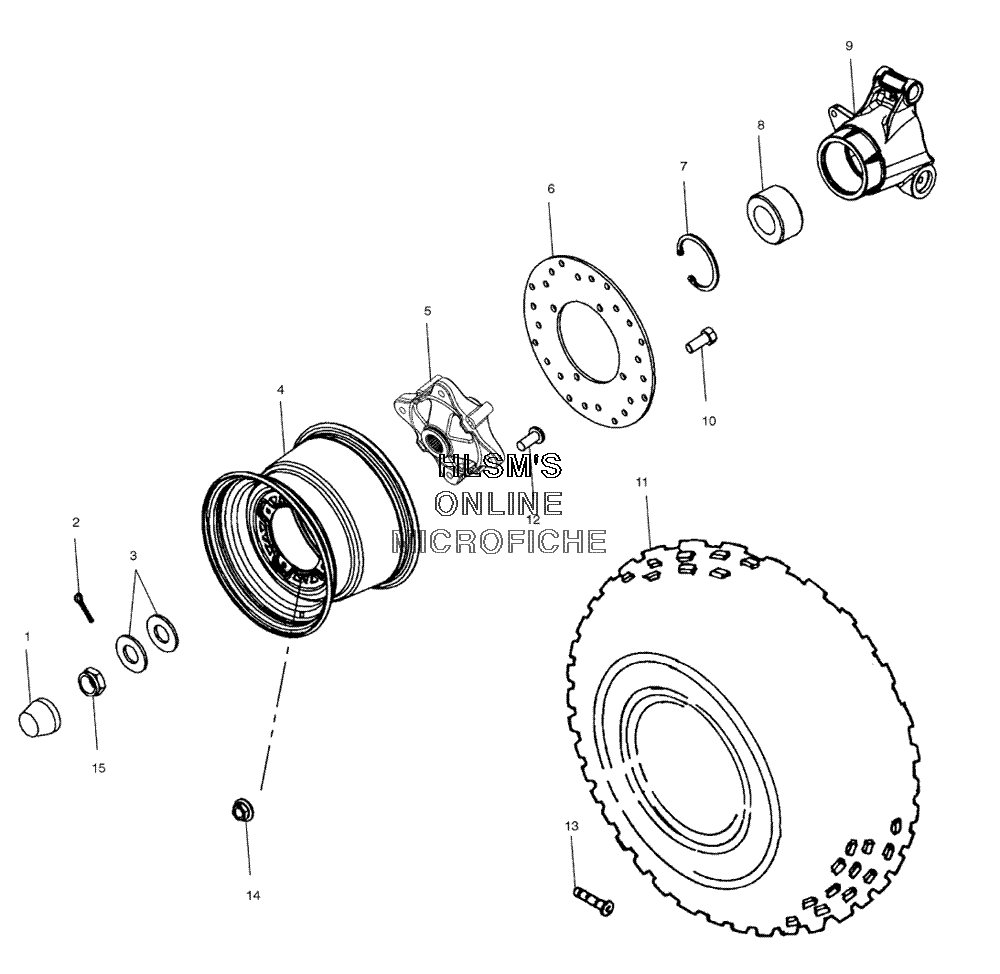

WHEEL - REAR для Polaris SPORTSMAN 400 (A04CH42AE) (SONIC BLUE MET.) - 2004 года выпуска
-
№АртикулНазвание
-
15411164 COVER DUST HUBCOVER DUST HUB
-
27661404 PIN COTTERPIN COTTER
-
37555796 WASHER CONEWASHER CONE
-
41520564-067 RIM REAR (BLACK)RIM REAR (BLACK)
-
41520564-385 WELD RIM REAR (SILVER)WELD RIM REAR (SILVER)
-
55133361 HUB WHEEL MACH (REAR)HUB WHEEL MACH (REAR)
-
65244635 DISC BRAKE (REAR)DISC BRAKE (REAR)
-
77710440 RING RETAININGRING RETAINING
-
83585502 BEARINGBEARING
-
95133664 CARRIER BEARING WHEEL (MACH) (RIGHT)CARRIER BEARING WHEEL (MACH) (RIGHT)
-
107512325 BOLTBOLT
-
115412451 TIRE (REAR)TIRE (REAR)
-
127515513 STUDSTUD
-
131525017 VALVE RIMVALVE RIM
-
147547237 NUT FLANGE TWO PIECENUT FLANGE TWO PIECE
-
157543005 NUT CASTLENUT CASTLE
