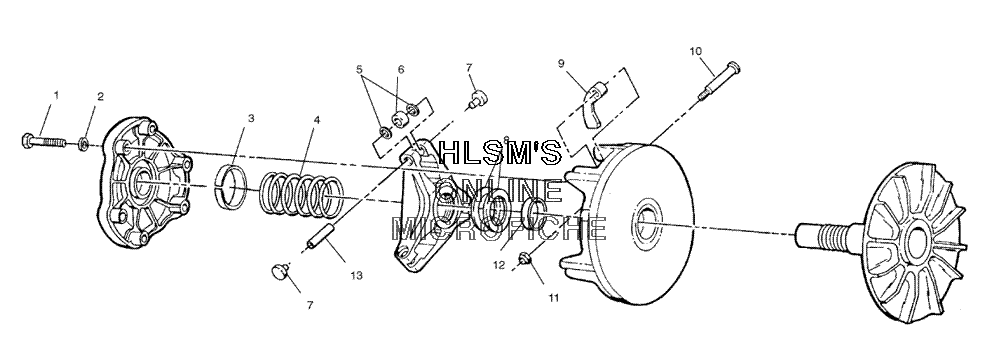

CLUTCH - DRIVE для Polaris SPORTSMAN 400 (A04CH42AR) (MED. (YELLOW) - 2004 года выпуска
-
№АртикулНазвание
-
17512176 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576510 BEARING, COVERBEARING, COVER
-
47041157 SPRING, CLUTCHSPRING, CLUTCH
-
55430945 WASHERWASHER
-
61321457 ROLLER/BUSHING ASSYROLLER/BUSHING ASSY
-
75431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
85210752 SPACER (.020)SPACER (.020)
-
85242981 SPACER (.025)SPACER (.025)
-
85210753 SPACER (.032)SPACER (.032)
-
85210754 SPACER (.050)SPACER (.050)
-
95630711 WT, SHIFT (10 BH)WT, SHIFT (10 BH)
-
107512266 BOLT, SHOULDERBOLT, SHOULDER
-
117541906 NUT FLEXLOCNUT FLEXLOC
-
123576504 BUSHING, MOVEABLE (1/2 INCH)BUSHING, MOVEABLE (1/2 INCH)
-
135020422 PIN ROLLER,PIN ROLLER,
-
131321976 DRIVE CLUTCH ASSY, WIDE (INCL. ALL LESS 4, 9)DRIVE CLUTCH ASSY, WIDE (INCL. ALL LESS 4, 9)
