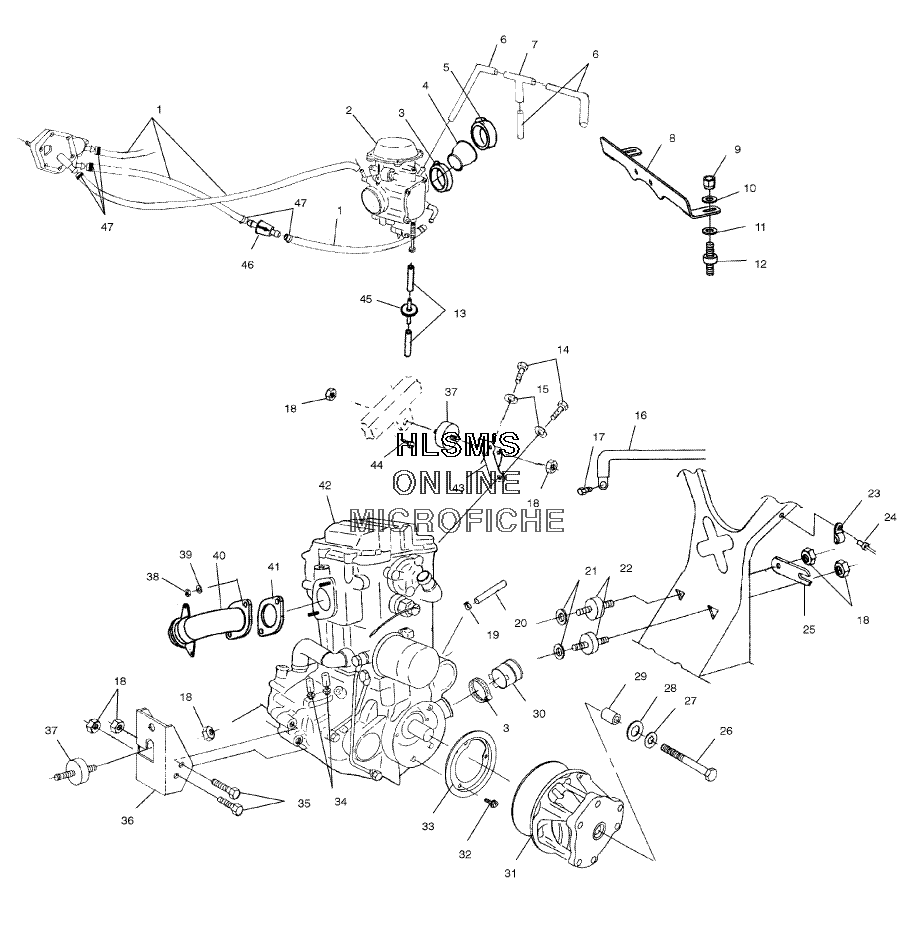

MOUNTING - ENGINE для Polaris SPORTSMAN 400 (A04CH42AT) (N.B.U. SUB. CAMO) - 2004 года выпуска
-
№АртикулНазвание
-
18450040-600 LINE FUEL (1/4 ID/600 CM.)LINE FUEL (1/4 ID/600 CM.)
-
37080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
45412283 BOOT CARBURETOR (34MM)BOOT CARBURETOR (34MM)
-
57080909 CLAMP, NARROW BAND(1.77/2.75)CLAMP, NARROW BAND(1.77/2.75)
-
68450003-1525 LINE, FUEL (1/4 ID/1525 CM.)LINE, FUEL (1/4 ID/1525 CM.)
-
77052075 FITTING, TEEFITTING, TEE
-
85247154 STRAP CARBURETOR MOUNT (400)STRAP CARBURETOR MOUNT (400)
-
97542105 NUT HEXNUT HEX
-
107558203 WASHERWASHER
-
117542143 INSERTINSERT
-
123110050 MOUNT, CARBURETORMOUNT, CARBURETOR
-
138360009-600 LINE, FUEL (1/8 ID/600 CM)LINE, FUEL (1/8 ID/600 CM)
-
147512315 BOLTBOLT
-
157552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
164010895 CABLE (BLACK) (FRAME/ENGINE)CABLE (BLACK) (FRAME/ENGINE)
-
173082038 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
187547108 NUTNUT
-
197080694 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
217555815 WASHER, FLATWASHER, FLAT
-
223110046 MOUNT, RUBBER (FRONT)MOUNT, RUBBER (FRONT)
-
237080539 CLAMP, NYLON CABLECLAMP, NYLON CABLE
-
247621462 RIVETRIVET
-
255224658-067 STRAP, FRAME SUPPORT (BLACK)STRAP, FRAME SUPPORT (BLACK)
-
267512566 BOLTBOLT
-
277575202 WASHER LOCKWASHER LOCK
-
285210748 WASHERWASHER
-
295430261 BUSHINGBUSHING
-
305410421 BOOT, CLUTCH INTAKE (IF BUILT BEFORE 8/04/03)BOOT, CLUTCH INTAKE (IF BUILT BEFORE 8/04/03)
-
305412487 BOOT, CLUTCH INTAKE (IF BUILT AFTER 8/04/03)BOOT, CLUTCH INTAKE (IF BUILT AFTER 8/04/03)
-
347080474 CLAMP, HOSECLAMP, HOSE
-
357515417 SCREWSCREW
-
365241150 MOUNT ENGINE (FRONT)MOUNT ENGINE (FRONT)
-
373110044 MOUNT, RUBBER (TOP)MOUNT, RUBBER (TOP)
-
401261043-029 MANIFOLD (1.625) (BLACK)MANIFOLD (1.625) (BLACK)
-
423087023 ENGINE EH42PLE05 SB (EH42PLE053) NOTE:ENGINE EH42PLE05 SB (EH42PLE053) NOTE:
-
435241453 MOUNT, ENGINE (TOP/BLACK)MOUNT, ENGINE (TOP/BLACK)
-
447512232 BOLTBOLT
-
457051011 VALVE, CHECKVALVE, CHECK
-
462530009 FILTER, SMALL IN LINEFILTER, SMALL IN LINE
-
477080003 CLAMP, HOSECLAMP, HOSE
