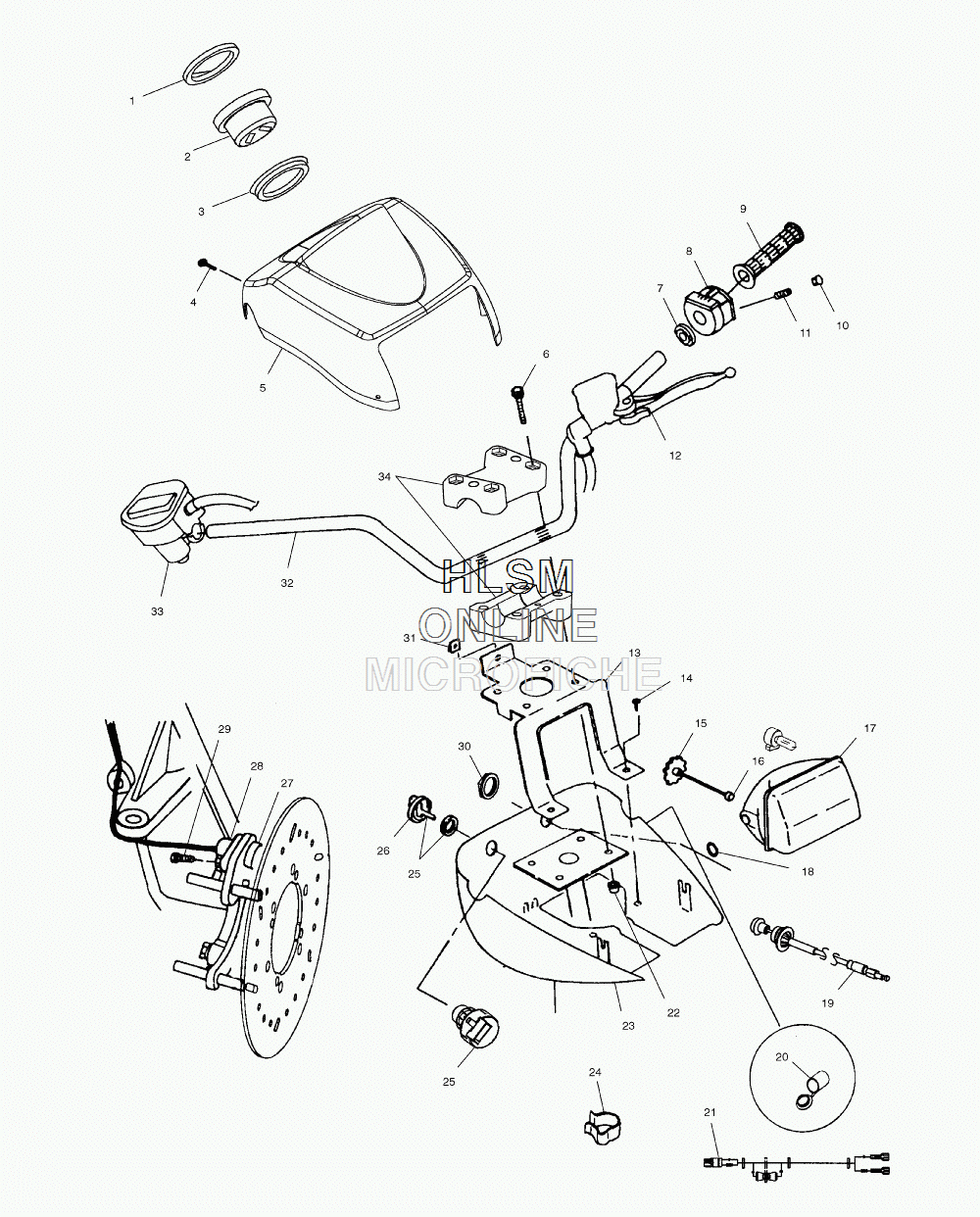

HANDLEBAR W/ HEADLIGHT для Polaris SPORTSMAN 500 (A04CH50AA) (CAMO GREEN MET.) - 2004 года выпуска
-
№АртикулНазвание
-
15434380 BEZELBEZEL
-
23280431 CLUSTERCLUSTER
-
35412138 MOUNT, RUBBERMOUNT, RUBBER
-
47511881 SCREWSCREW
-
55434706-400 POD, HEADLIGHT, UPPER CAMO GREEN METPOD, HEADLIGHT, UPPER CAMO GREEN MET
-
67517238 SCREWSCREW
-
75433903 SPACER, SWITCH, LEFT HANDSPACER, SWITCH, LEFT HAND
-
84010560 SWITCH, HANDLEBAR (IF BUILT BEFORE 2/03/03)SWITCH, HANDLEBAR (IF BUILT BEFORE 2/03/03)
-
84010591 SWITCH, HANDLEBAR (IF BUILT AFTER 2/03/03)SWITCH, HANDLEBAR (IF BUILT AFTER 2/03/03)
-
95433834-070 GRIP, HANDLEBARGRIP, HANDLEBAR
-
105432952 PLUGPLUG
-
117517625 SCREW, SETSCREW, SET
-
135244969-067 BRACKET, POD MOUNTINGBRACKET, POD MOUNTING
-
147517317 SCREWSCREW
-
154032079 KNOB, ADJUSTINGKNOB, ADJUSTING
-
164032078 ROD, ADJUSTINGROD, ADJUSTING
-
172410268 ASM., HEADLAMPASM., HEADLAMP
-
174010253 BULB, HEADLIGHTBULB, HEADLIGHT
-
172204143 KIT, HEADLIGHT HARNESSKIT, HEADLIGHT HARNESS
-
185410163 O-RINGO-RING
-
204010638 RECEPTACLE, POD MOUNT, 12VRECEPTACLE, POD MOUNT, 12V
-
212461045 HARNESS, LIGHT, POD/ACCY.HARNESS, LIGHT, POD/ACCY.
-
227542122 NUT, NYLOKNUT, NYLOK
-
235433762-070 POD, HEADLIGHTPOD, HEADLIGHT
-
247080631 CLIP, CABLE RETAININGCLIP, CABLE RETAINING
-
254010390 SWITCH, IGNITION (INCL. KEY)SWITCH, IGNITION (INCL. KEY)
-
254010278 BLANK, KEY, SERIES 2000, 6700, 6800BLANK, KEY, SERIES 2000, 6700, 6800
-
254010321 BLANK, KEY, SERIES 2200, 2300, 2700, 2800BLANK, KEY, SERIES 2200, 2300, 2700, 2800
-
265433534 COVER, KEYCOVER, KEY
-
275132382 CAPCAP
-
284010298 SENSORSENSOR
-
297517658 SCREWSCREW
-
307080922 NUT, CHOKENUT, CHOKE
-
317670127 CLIP, SCREWCLIP, SCREW
-
325242987-067 TUBE, HANDLEBARTUBE, HANDLEBAR
-
345631146 BLOCK, HANDLEBAR, PEGGEDBLOCK, HANDLEBAR, PEGGED
-
345631147 BLOCK, HANDLEBARBLOCK, HANDLEBAR
