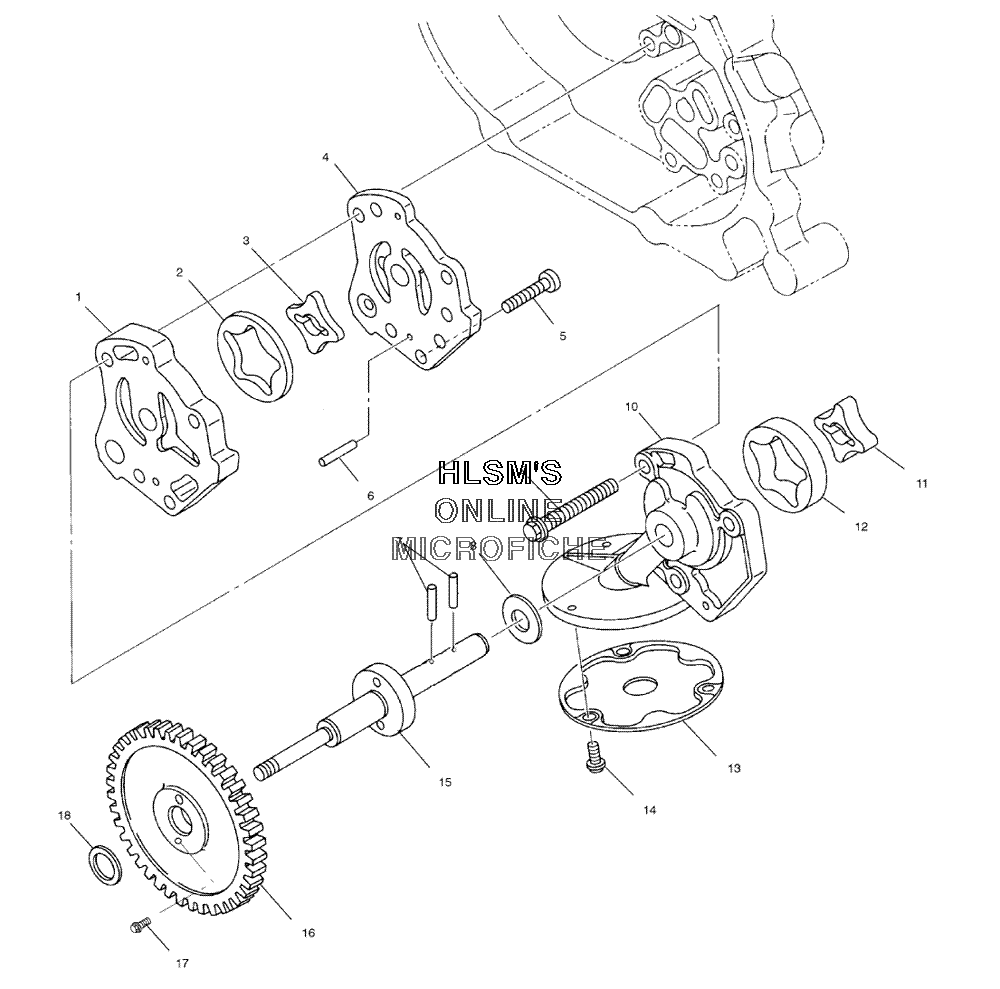

OIL PUMP для Polaris SPORTSMAN 500 (A04CH50AT) (N.B.U. SUB. CAMO) - 2004 года выпуска
-
№АртикулНазвание
-
13084946 CASE #2 OILPUMPCASE #2 OILPUMP
-
23084949 ROTOR FEED (OUTER)ROTOR FEED (OUTER)
-
33084948 ROTOR FEED (INNER)ROTOR FEED (INNER)
-
43085817 OIL PUMP ASSYOIL PUMP ASSY
-
43084945 CASE #1 OILPUMPCASE #1 OILPUMP
-
53085535 SCREWSCREW
-
63088156 PIN DOWELPIN DOWEL
-
73088155 PIN DOWLPIN DOWL
-
83084953 WASHERWASHER
-
93084962 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
103084947 CASE #3 OILPUMPCASE #3 OILPUMP
-
113084950 ROTOR SCAV. (INNER)ROTOR SCAV. (INNER)
-
123084951 ROTOR OUTERROTOR OUTER
-
133084956 STRAINER UNIT OILSTRAINER UNIT OIL
-
143084205 SCREW AND WAHER ASSYSCREW AND WAHER ASSY
-
153085858 SHAFT PUMPSHAFT PUMP
-
163087173 PUMP GEAR 2PUMP GEAR 2
-
17
-
183084959 SPACER (0.8)SPACER (0.8)
-
183084960 SPACER (1.0)SPACER (1.0)
-
183084961 SPACER (1.2)SPACER (1.2)
