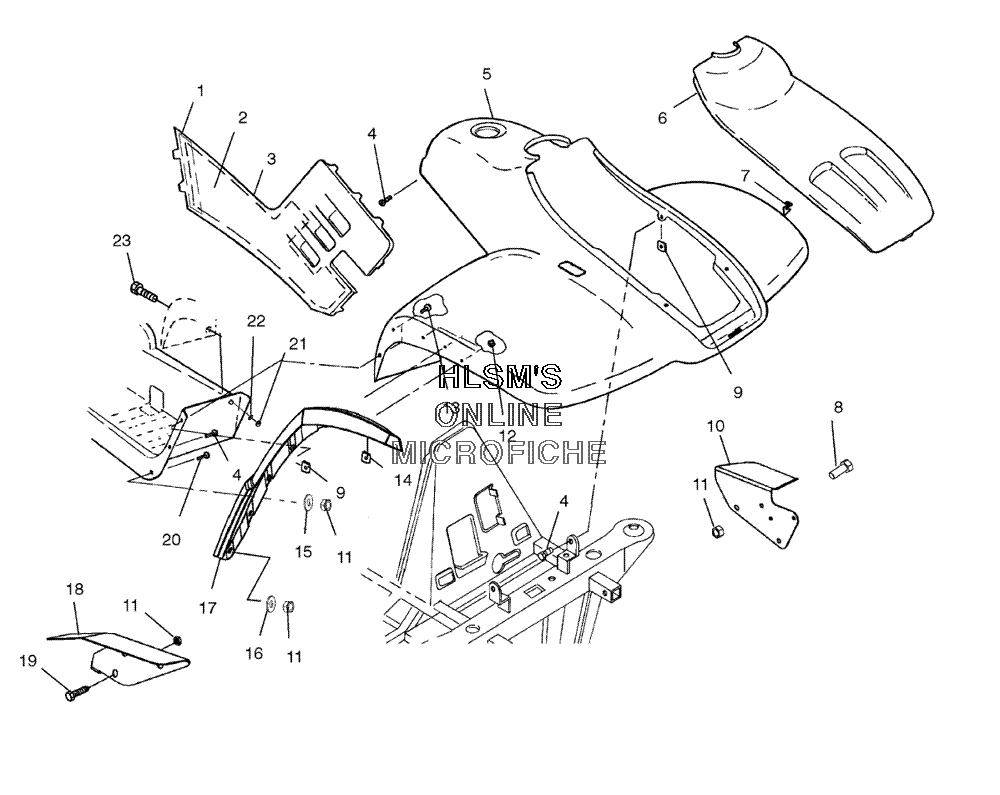

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 500 (A04CH50AX) (MIDNIGHT BLUE MET.) - 2004 года выпуска
-
№АртикулНазвание
-
15811491 FOIL (RIGHT)FOIL (RIGHT)
-
35435322-453 PANEL SIDE GEN IV AVAL (LEFT) (GRAY)PANEL SIDE GEN IV AVAL (LEFT) (GRAY)
-
32632471-453 PANEL/FOIL ASSY AVAL (RIGHT) (GRAY)PANEL/FOIL ASSY AVAL (RIGHT) (GRAY)
-
47517312 SCREWSCREW
-
52632953-469 CAB FOAM ASSY (FRONT) (BLUE)CAB FOAM ASSY (FRONT) (BLUE)
-
65435588-469 COVER (FRONT) (MIDNIGHT BLUE)COVER (FRONT) (MIDNIGHT BLUE)
-
77670085 CLIP SPRINGCLIP SPRING
-
87512240 BOLTBOLT
-
97670057 NUT SPEEDNUT SPEED
-
105246872 GUARD SPLASH (LEFT)GUARD SPLASH (LEFT)
-
117546601 NUT NYLOKNUT NYLOK
-
127670135 NUT SPEED 3/16NUT SPEED 3/16
-
137512232 BOLTBOLT
-
147670156 CLIP RETAINING BARBEDCLIP RETAINING BARBED
-
157556034 WASHERWASHER
-
167555859 WASHER FLATWASHER FLAT
-
175434702-070 GUARD MUD (FRONT) (LEFT) (BLACK)GUARD MUD (FRONT) (LEFT) (BLACK)
-
175434703-070 GUARD MUD (FRONT) (RIGHT) (BLACK)GUARD MUD (FRONT) (RIGHT) (BLACK)
-
185246021-067 GUARD SPLASH (RIGHT) (BLACK)GUARD SPLASH (RIGHT) (BLACK)
-
197517386 SCREWSCREW
-
207515158 SCREWSCREW
-
217541925 NUT NYLOKNUT NYLOK
-
227555792 WASHERWASHER
-
237512085 SCREWSCREW
