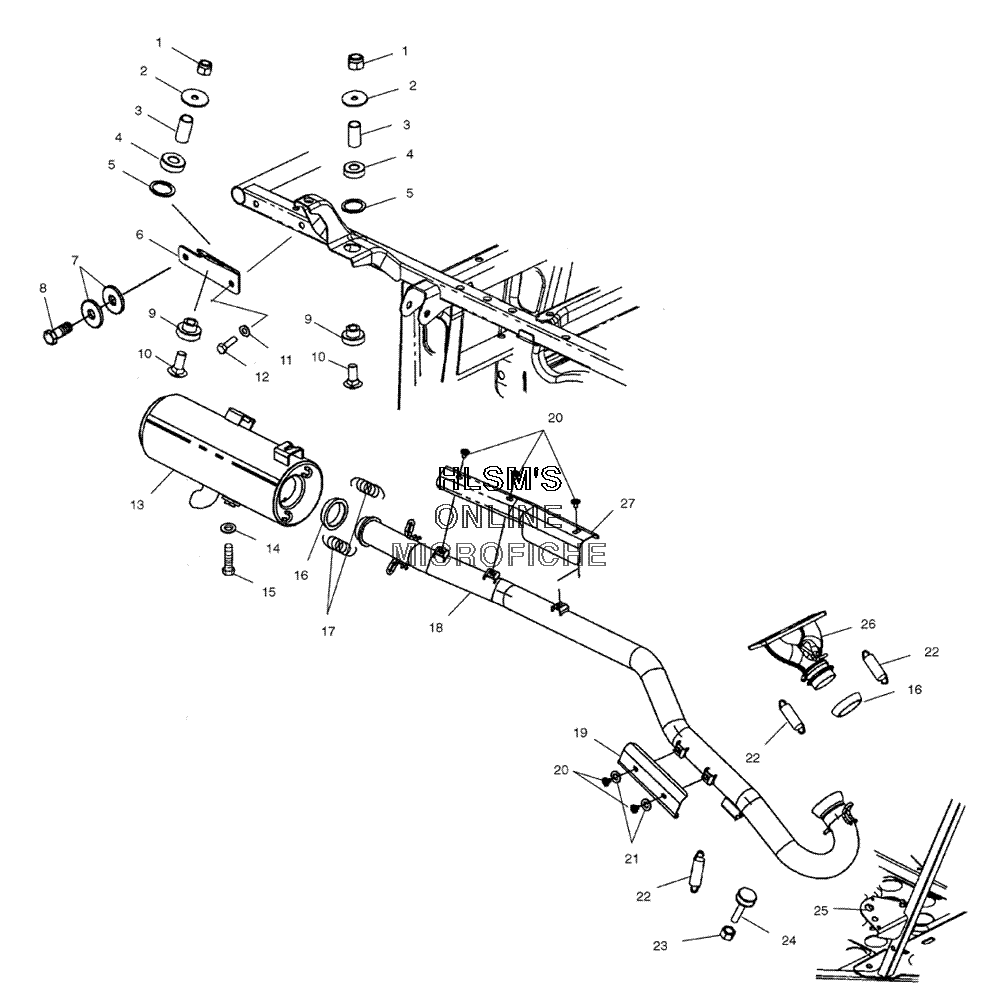

EXHAUST SYSTEM для Polaris SPORTSMAN 600 (A04CH59AQ) (N.B.U. SUB. CAMO) - 2004 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27555716 WASHERWASHER
-
35010192 BUSHINGBUSHING
-
45410436 WASHER, RUBBERWASHER, RUBBER
-
57555863 BUSHINGBUSHING
-
65241663 BRKT-SILENCER, FRAME PLTDBRKT-SILENCER, FRAME PLTD
-
77555935 WASHERWASHER
-
87517615 SCREWSCREW
-
95412508 DAMPENER-VIBRATIONDAMPENER-VIBRATION
-
107515316 BOLTBOLT
-
117558402 WASHER, FLATWASHER, FLAT
-
127512329 BOLTBOLT
-
131261223-029 WELD-EXHAUST SILENCER, (BLACK)WELD-EXHAUST SILENCER, (BLACK)
-
147556230 WASHER-CLEAN OUT .51X.75X.09 (1WASHER-CLEAN OUT .51X.75X.09 (1
-
157512666 BOLTBOLT
-
163610047 SEAL, EXH.SOCKETSEAL, EXH.SOCKET
-
177041804 SPRINGSPRING
-
181261242-029 EXHAUST PIPE, 1.75 OD, (BLACK)EXHAUST PIPE, 1.75 OD, (BLACK)
-
195244014 SHIELD-HEAT, EXHAUSTSHIELD-HEAT, EXHAUST
-
207515197 SCREWSCREW
-
217555935 WASHERWASHER
-
227041789 SPRINGSPRING
-
237542301 NUT HEXNUT HEX
-
243110064 MOUNT, TORQUE-STOPMOUNT, TORQUE-STOP
-
257547101 NUTSERT-5/16-18 (.027-.150), HXYNUTSERT-5/16-18 (.027-.150), HXY
-
261261077-029 WELD-MANIFOLD, (BLACK)WELD-MANIFOLD, (BLACK)
-
275245502 SHIELD-HEAT, EXHAUSTSHIELD-HEAT, EXHAUST
