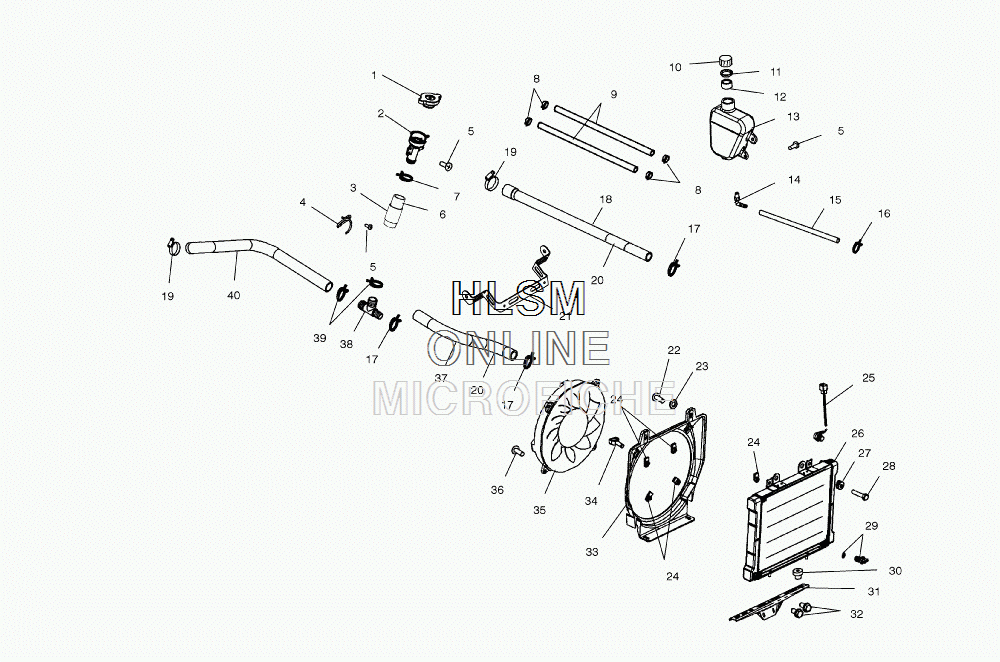

COOLING SYSTEM для Polaris SPORTSMAN 600 (A04CH59AT) (N.B.U. SUB. CAMO) - 2004 года выпуска
-
№АртикулНазвание
-
11240044 CAP, PRESSURECAP, PRESSURE
-
25434325 FILLER, COOLANTFILLER, COOLANT
-
35521644 GUARD, HOSEGUARD, HOSE
-
47042089 RETAINER, HOSERETAINER, HOSE
-
57512084 SCREWSCREW
-
65412311 HOSE, FILLER NECKHOSE, FILLER NECK
-
77080827 CLAMP, 1 INCHCLAMP, 1 INCH
-
87080003 CLAMP, HOSECLAMP, HOSE
-
98450040-150 LINE, FUELLINE, FUEL
-
105430743 CAP, OVERFLOW, DRILLEDCAP, OVERFLOW, DRILLED
-
115810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
125433774 PLUG, CAPPLUG, CAP
-
135431673 TANK, SURGETANK, SURGE
-
147052065 FITTING, BARBED, 90 DEGREEFITTING, BARBED, 90 DEGREE
-
158450003-1525 LINE, FUELLINE, FUEL
-
167080307 CLAMP, HOSECLAMP, HOSE
-
177080826 CLAMPCLAMP
-
185412030 HOSE, ENGINE, UPPERHOSE, ENGINE, UPPER
-
197081174 CLAMP, HOSECLAMP, HOSE
-
205521597 HOSE, GUARDHOSE, GUARD
-
215246656 BRACKET, RADIATOR MOUNT, UPPERBRACKET, RADIATOR MOUNT, UPPER
-
227518014 SCREWSCREW
-
237556196 WASHERWASHER
-
247547197 U-CLIPU-CLIP
-
254010161 SENSOR, THERMALSENSOR, THERMAL
-
261240103 RADIATORRADIATOR
-
275411975 GROMMETGROMMET
-
287515179 SCREWSCREW
-
297052296 VALVE, DRAINVALVE, DRAIN
-
305410584 BUSHING, MOUNTBUSHING, MOUNT
-
315245773-067 BRACKET, RADIATOR, LOWERBRACKET, RADIATOR, LOWER
-
327517386 SCREWSCREW
-
335434171 SHROUD, FANSHROUD, FAN
-
344010631 CLIP, WIRINGCLIP, WIRING
-
352410288 ASM., FAN AND MOTORASM., FAN AND MOTOR
-
367517975 SCREWSCREW
-
375412312 HOSE, RADIATOR, LOWERHOSE, RADIATOR, LOWER
-
387052282 CONNECTOR, TEECONNECTOR, TEE
-
397081047 CLAMPCLAMP
-
405412313 HOSE, ENGINE, LOWERHOSE, ENGINE, LOWER
