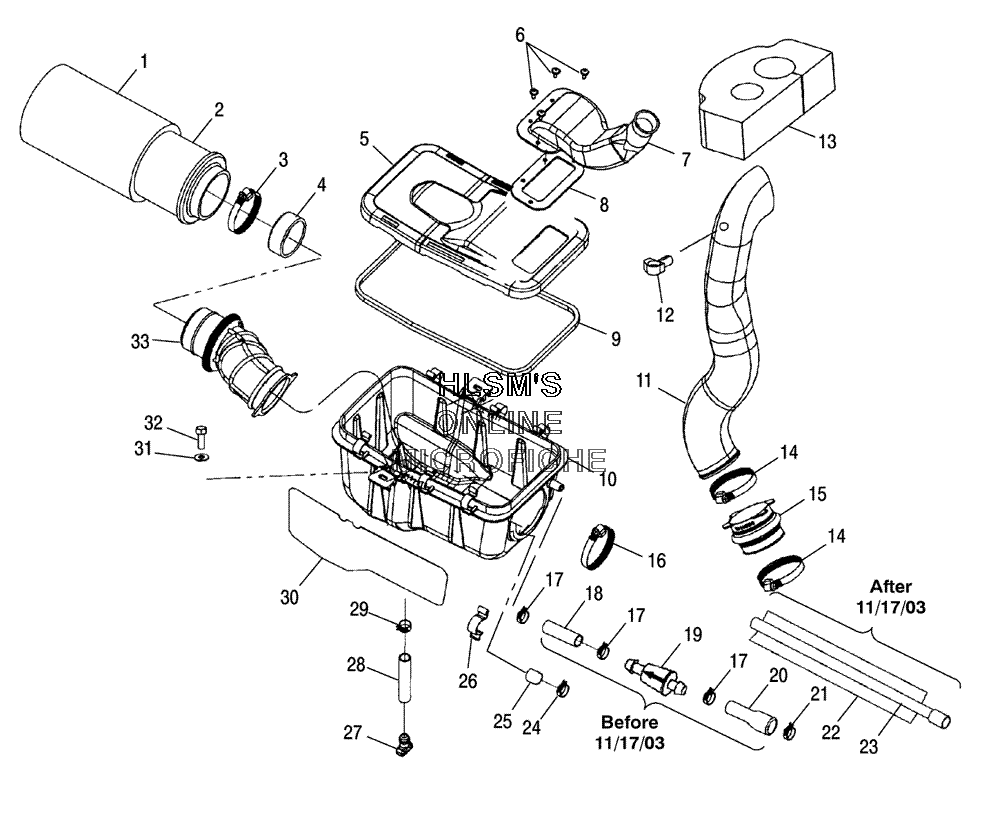

AIR BOX ASSY. для Polaris SPORTSMAN 700 (A04CH68AO) (N.B.U. SUB. CAMO) - 2004 года выпуска
-
№АртикулНазвание
-
15811633 FILTER PRECLEAN SLEEVEFILTER PRECLEAN SLEEVE
-
27080595 FILTER AIRFILTER AIR
-
37080413 CLAMP BAND NARROWCLAMP BAND NARROW
-
45433847 SLEEVE CARB (INNER)SLEEVE CARB (INNER)
-
55432868 COVER AIRBOXCOVER AIRBOX
-
67517317 SCREWSCREW
-
75434013 DUCT AIR INTAKEDUCT AIR INTAKE
-
85411422 GASKET INTAKEGASKET INTAKE
-
95811482 SEAL COVERSEAL COVER
-
105433678 BOX AIRBOX AIR
-
115434044 DUCT AIR INLET CLUTCHDUCT AIR INLET CLUTCH
-
127670102 CLIPCLIP
-
135812316 SEAL FOAMSEAL FOAM
-
147080451 CLAMP HOSECLAMP HOSE
-
167080511 CLAMP NARROW BANDCLAMP NARROW BAND
-
177080699 CLAMP HOSECLAMP HOSE
-
188450073-600 LINE BREATHER (3/8 ID.) (IF BUILT BEFORE 11/17/03)LINE BREATHER (3/8 ID.) (IF BUILT BEFORE 11/17/03)
-
192530029 FILTER BREATHER IN LINE (IF BUILT BEFORE 11/17/03)FILTER BREATHER IN LINE (IF BUILT BEFORE 11/17/03)
-
205411966 HOSE BREATH FORMED WITH CHAFE 10CM (IF BUILT BEFORE 11/17/03)HOSE BREATH FORMED WITH CHAFE 10CM (IF BUILT BEFORE 11/17/03)
-
217080694 CLAMP HOSE SPRINGCLAMP HOSE SPRING
-
228450108-34 SHEATH REFLECT SLEEVE (IF BUILT AFTER 11/17/03)SHEATH REFLECT SLEEVE (IF BUILT AFTER 11/17/03)
-
235412615 BREATHER LINE SINGLE KITBREATHER LINE SINGLE KIT
-
247080534 CLAMP HOSECLAMP HOSE
-
255433396 CAP END (BLACK)CAP END (BLACK)
-
265242044 CLIPCLIP
-
275432377 PLUG TRAP (IF BUILT BEFORE 10/04/04)PLUG TRAP (IF BUILT BEFORE 10/04/04)
-
275432377 PLUG, TRAP (IF BUILT AFTER 10/04/04)PLUG, TRAP (IF BUILT AFTER 10/04/04)
-
288450059-150 FUEL LINEFUEL LINE
-
297080650 CLAMP HOSECLAMP HOSE
-
305811650 FOILFOIL
-
317558301 WASHER FLATWASHER FLAT
-
327515179 SCREWSCREW
-
335412066 BOOT CARB (34MM)BOOT CARB (34MM)
