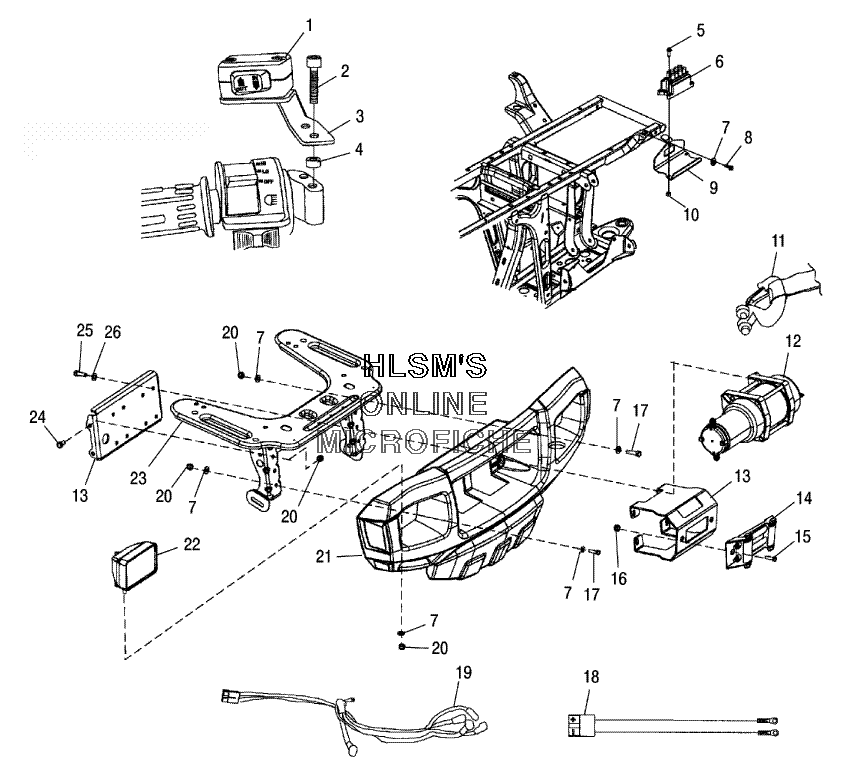

WINCH ASSY для Polaris SPORTSMAN 700 (A04CH68AP) (N.B.U. SUB. CAMO) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
12202255 SWITCH, WINCH, MINI ROCKER, 12VD (INCL. 2 4)SWITCH, WINCH, MINI ROCKER, 12VD (INCL. 2 4)
-
57512247 BOLTBOLT
-
62202254 CONTACTOR, RPLCMNT FOR 2.5 CICONTACTOR, RPLCMNT FOR 2.5 CI
-
77558402 WASHER, FLATWASHER, FLAT
-
87512329 BOLTBOLT
-
95247570 BRACKET CONNECTOR/SOLENOID, WINCH (BLACK)BRACKET CONNECTOR/SOLENOID, WINCH (BLACK)
-
107542122 NUT NYLOKNUT NYLOK
-
112873215 HOOK, WINCH, SPRING SNAPHOOK, WINCH, SPRING SNAP
-
122874570 WINCH, 2500, GEN VI/GEN IV+WINCH, 2500, GEN VI/GEN IV+
-
132874678 WINCH MOUNT, GEN VIWINCH MOUNT, GEN VI
-
142871462 ROLLER FAIRLEAD, FOR WARN WINCHROLLER FAIRLEAD, FOR WARN WINCH
-
157515494 BOLT (BLACK)BOLT (BLACK)
-
167542451 NUT, NYLOKNUT, NYLOK
-
177512392 BOLTBOLT
-
182461220 HARNESS WINCH (FRONT)HARNESS WINCH (FRONT)
-
192461218 HARNESS WINCH, MAINHARNESS WINCH, MAIN
-
207542324 NUT, NYLOKNUT, NYLOK
-
215432757-070 GRILLE ASSY.GRILLE ASSY.
-
222431017 HEADLIGHT ASSY, 27W, BOTTOM MOUNTHEADLIGHT ASSY, 27W, BOTTOM MOUNT
-
231014020-067 WELD SUPPORT RACK (FRONT/BLACK)WELD SUPPORT RACK (FRONT/BLACK)
-
247515321 BOLTBOLT
-
257515317 BOLTBOLT
-
267552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
