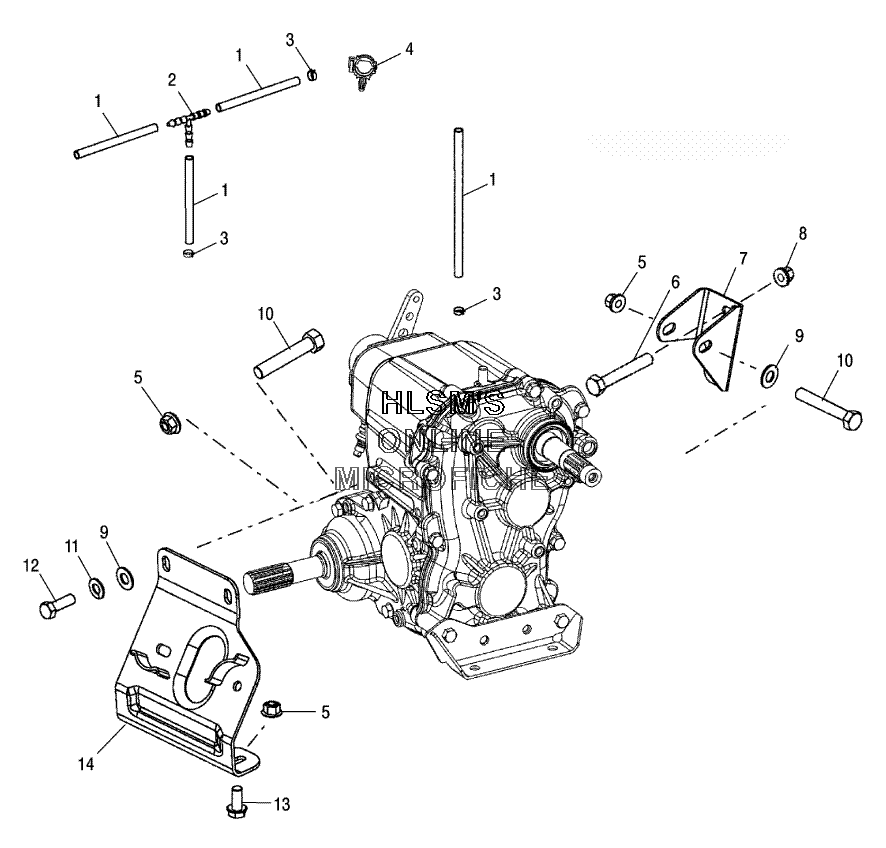

MOUNTING - TRANSMISSION для Polaris SPORTSMAN 700 (A04CH68AQ) (N.B.U. SUB. CAMO) (CANADA) - 2004 года выпуска
-
№АртикулНазвание
-
18450003-1525 LINE, FUEL (1/4 ID) (1525 CM)LINE, FUEL (1/4 ID) (1525 CM)
-
27052075 FITTING, TEEFITTING, TEE
-
37080307 CLAMP, HOSECLAMP, HOSE
-
47080756 CLIP, SNAP-INCLIP, SNAP-IN
-
57547108 NUTNUT
-
67512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
75247348 BRACKET MOUNT, TRANS, PLATED (REAR)BRACKET MOUNT, TRANS, PLATED (REAR)
-
87542321 NUT, FLANGENUT, FLANGE
-
97555976 WASHER, FLATWASHER, FLAT
-
107515417 SCREWSCREW
-
117552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127515522 BOLTBOLT
-
137517289 SCREWSCREW
-
141013134-067 MOUNT, ENGINE (REAR/BLACK)MOUNT, ENGINE (REAR/BLACK)
