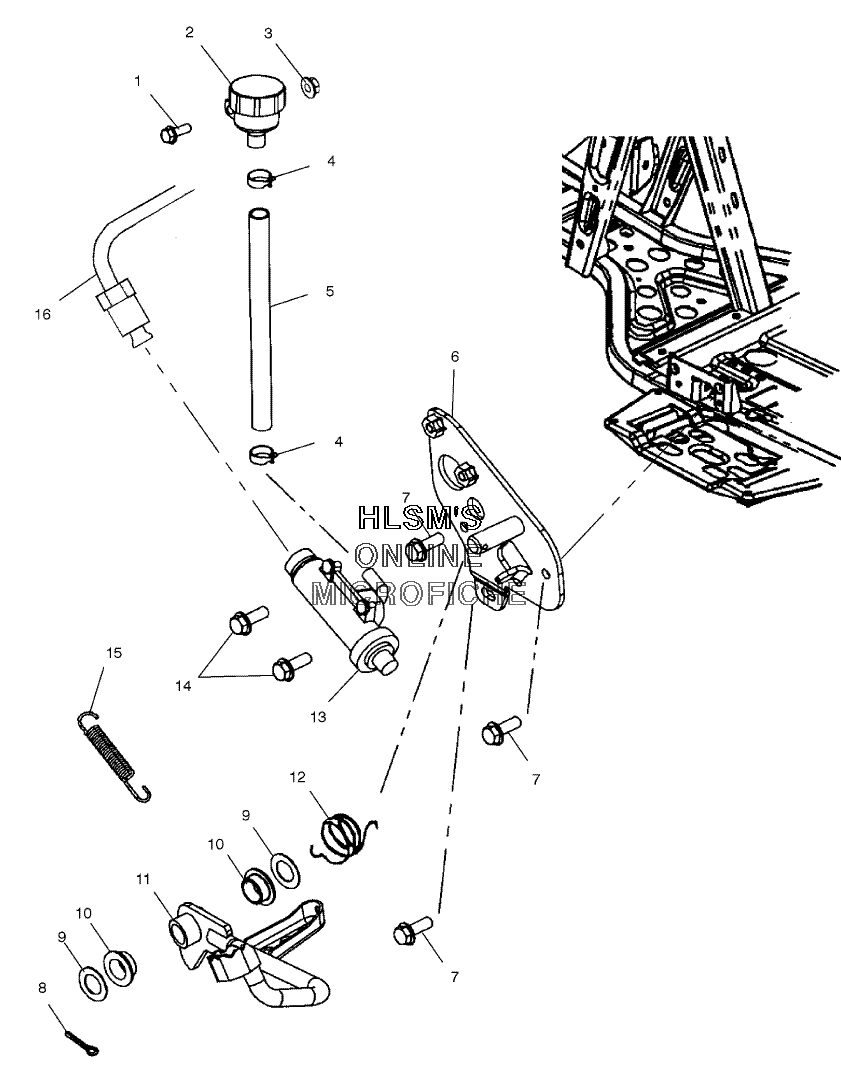

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris SPORTSMAN 700 (A04CH68AV) (S.G. SUB) - 2004 года выпуска
-
№АртикулНазвание
-
17512240 BOLTBOLT
-
21930854 RESERVOIR ASM,R.BRAKERESERVOIR ASM,R.BRAKE
-
37542153 NUT,NYLOK,FLANGEDNUT,NYLOK,FLANGED
-
47080003 CLAMP,HOSE (10)CLAMP,HOSE (10)
-
51910438 HOSE,RES.,1/4 ID,5.78 LGHOSE,RES.,1/4 ID,5.78 LG
-
61013414-067 WELD-BRAKE MOUNT,BLKWELD-BRAKE MOUNT,BLK
-
77517386 SCREW (10)SCREW (10)
-
87661401 PIN,COTTER (10)PIN,COTTER (10)
-
97555919 WASHERWASHER
-
105433189 BUSHING-PEDAL PIVOTBUSHING-PEDAL PIVOT
-
111013415-067 BRAKE ROD,BLKBRAKE ROD,BLK
-
127041750 SPRING,TORSIONSPRING,TORSION
-
131910301 SUBSTITUTED BY 1910790SUBSTITUTED BY 1910790
-
147515158 SCREWSCREW
-
157042075 SPRINGSPRING
-
161910429 SUBSTITUTED BY 2202709SUBSTITUTED BY 2202709
