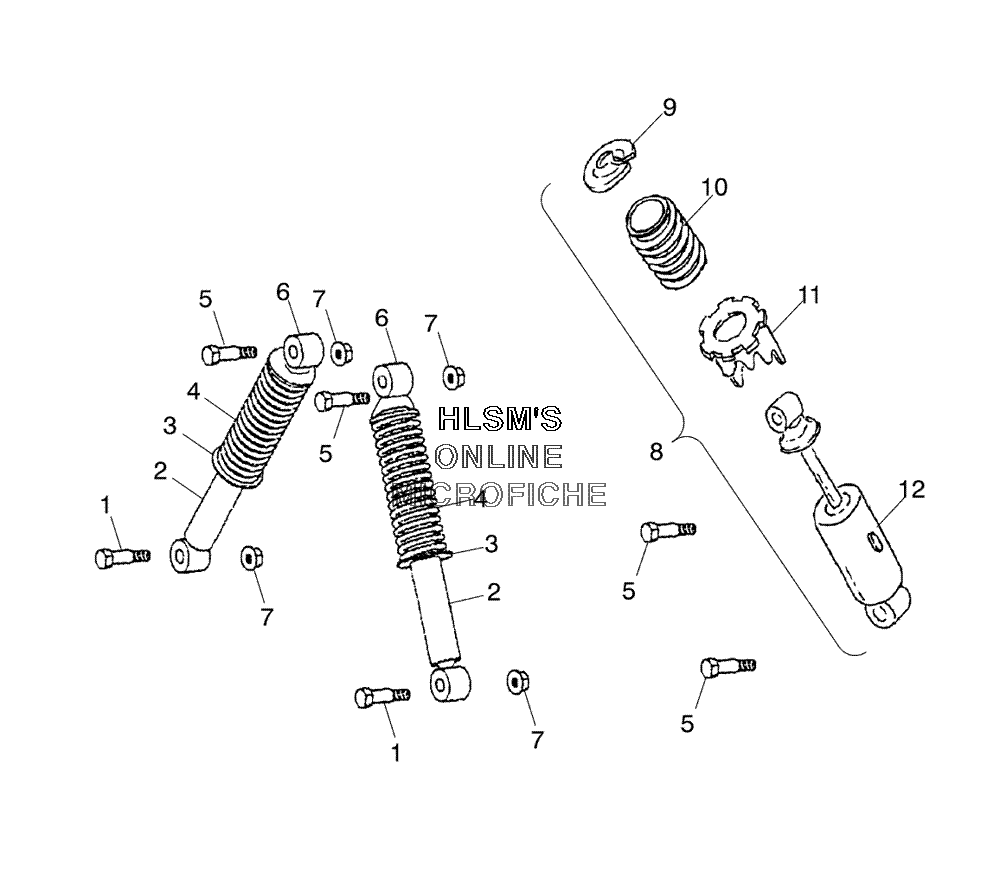

SUSPENSION для Polaris SPORTSMAN 90 (A04FA09CA) (CAMO GREEN) - 2004 года выпуска
-
№АртикулНазвание
-
10450868 BOLT HEXAGONBOLT HEXAGON
-
20450738 TUBE INNE (FRONT)TUBE INNE (FRONT)
-
30451675 COLLAR ADJUSTMENT SPRING (REAR)COLLAR ADJUSTMENT SPRING (REAR)
-
40450737 SPRING (FRONT)SPRING (FRONT)
-
50450380 BOLT HEXAGONBOLT HEXAGON
-
60450869 SUSPENSION (FRONT) [INCL. 2-4]SUSPENSION (FRONT) [INCL. 2-4]
-
70450249 NUT FLANGENUT FLANGE
-
80451819 SHOCK, ASSY (INCL. 9 ,10, 11, 12)SHOCK, ASSY (INCL. 9 ,10, 11, 12)
-
90450929 RETAINER SPRINGRETAINER SPRING
-
100450949 SPRING SUSPENSION (REAR)SPRING SUSPENSION (REAR)
-
110450894 COLLAR SPRING ADJUSTMENTCOLLAR SPRING ADJUSTMENT
-
120451072 SHOCK (REAR)SHOCK (REAR)
