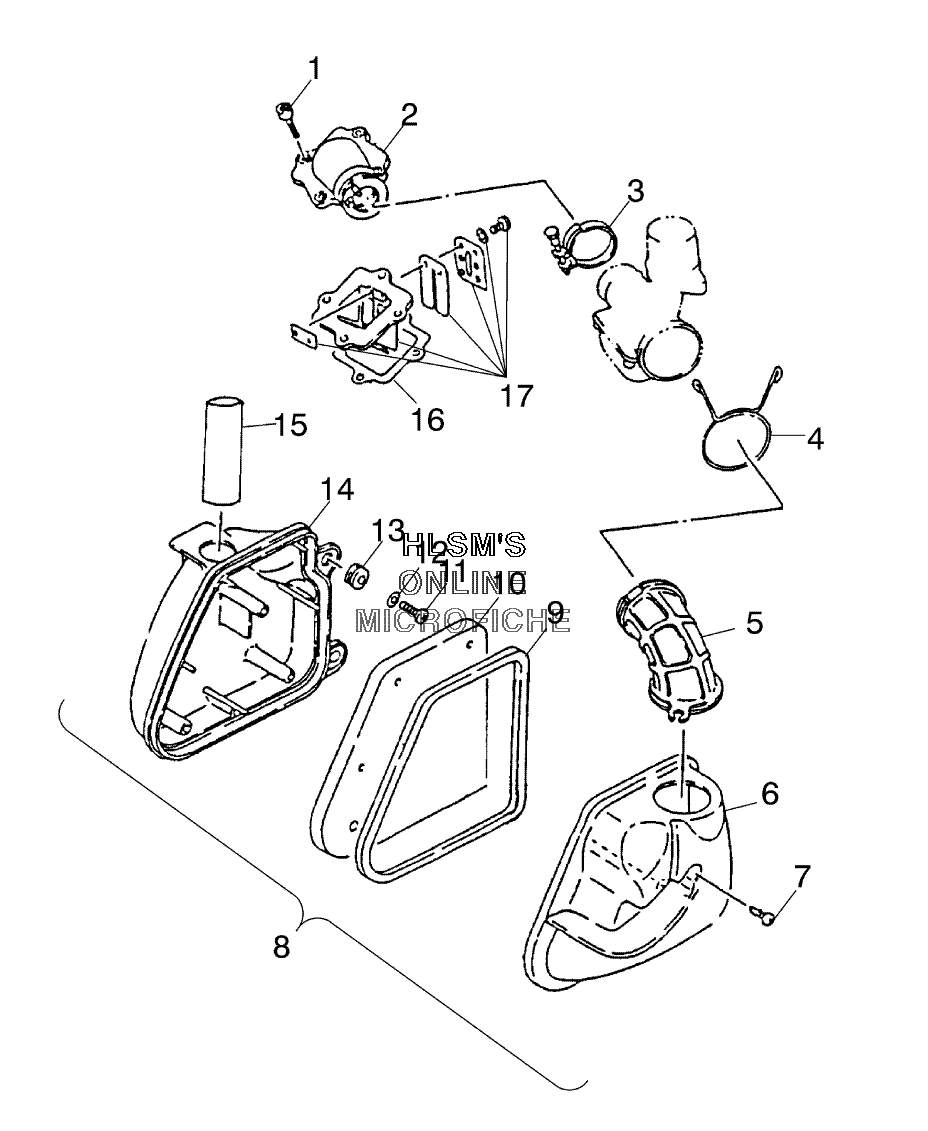

AIR BOX ASSY. для Polaris SPORTSMAN 90 (A04FA09CB) (NBU) - 2004 года выпуска
-
№АртикулНазвание
-
10450066 BOLT HEXAGON WASHERBOLT HEXAGON WASHER
-
20450065 MANIFOLD INTAKEMANIFOLD INTAKE
-
30450067 CLAMP HOSE INTAKE MANIFOLDCLAMP HOSE INTAKE MANIFOLD
-
40450068 CLIPCLIP
-
50451077 INLET AIR BOXINLET AIR BOX
-
60450071 CAP CASE AIR CLEANERCAP CASE AIR CLEANER
-
70450076 SCREW TAPPINGSCREW TAPPING
-
80451080 CLEANER AIR (INCL. 5, 6, 7, 9, 10, 13, 14, 15)CLEANER AIR (INCL. 5, 6, 7, 9, 10, 13, 14, 15)
-
90451081 SEALSEAL
-
100450073 ELEMENT AIR CLEANERELEMENT AIR CLEANER
-
110450039 BOLT SOCKETBOLT SOCKET
-
120450034 WASHER PLAINWASHER PLAIN
-
130450079 GROMMETGROMMET
-
140450070 CASE AIR CLEANERCASE AIR CLEANER
-
150450072 INLET TUBE AIR CLEANERINLET TUBE AIR CLEANER
-
160450064 GASKET REEDGASKET REED
-
170450063 REED VALVE, ASSYREED VALVE, ASSY
