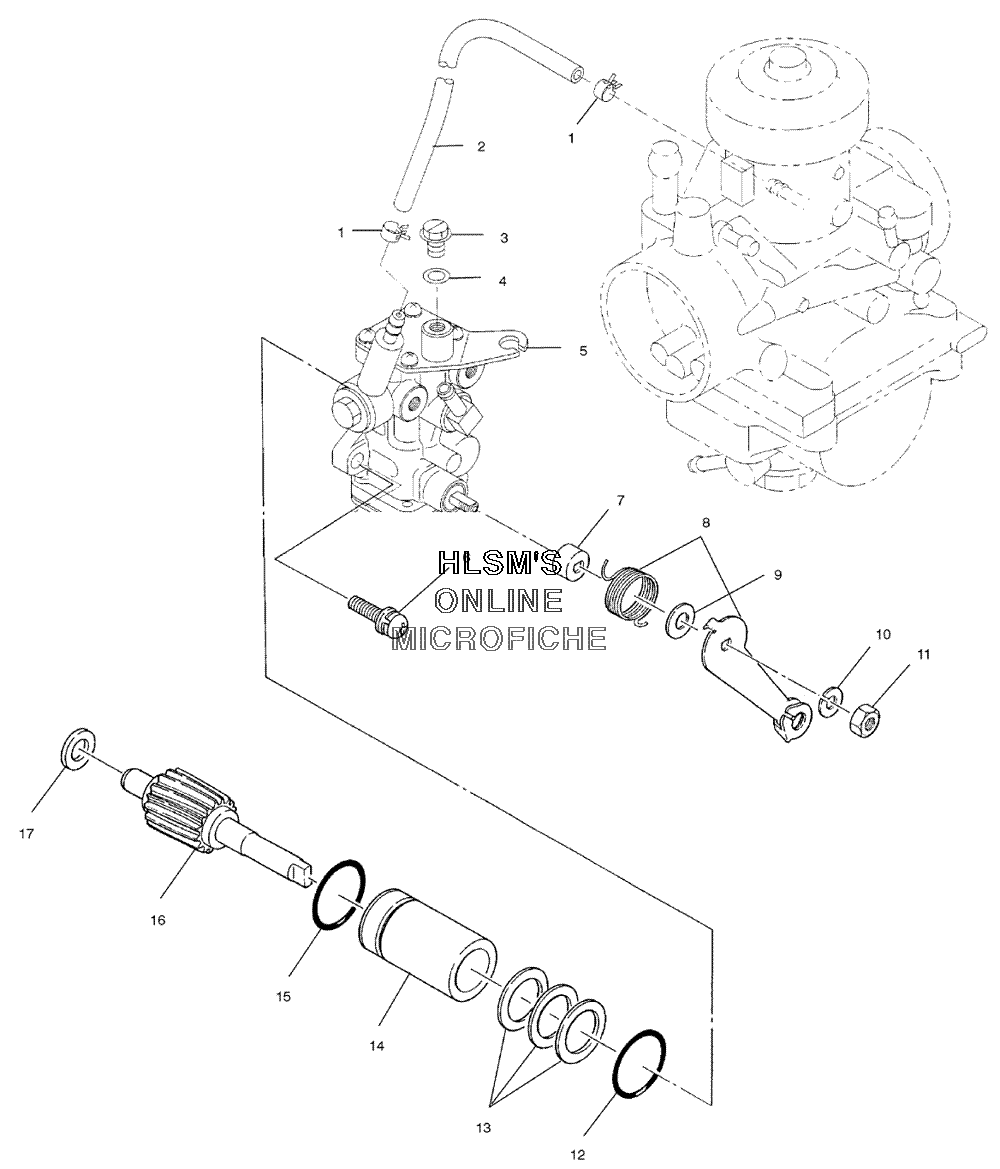

OIL PUMP для Polaris TRAIL BLAZER (A04BA25CB) (BLAZING RED) - 2004 года выпуска
-
№АртикулНазвание
-
13083141 CLAMP HOSECLAMP HOSE
-
23087047 PIPE VINYLPIPE VINYL
-
33083125 SCREW AIR VENTSCREW AIR VENT
-
43083126 PACKINGPACKING
-
53089279 OIL PUMP ASSY (INCL. 3, 4, 7-12)OIL PUMP ASSY (INCL. 3, 4, 7-12)
-
63086778 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
73083758 CAPCAP
-
83086844 SPRINGANDLEVERSPRINGANDLEVER
-
83086845 SPRING AND LEVERSPRING AND LEVER
-
93083757 COLLAR, CAMSHAFTCOLLAR, CAMSHAFT
-
103083121 WASHER SPRINGWASHER SPRING
-
113083120 NUTNUT
-
123083127 O-RINGO-RING
-
133083671 SPACER 1 (.15MM)SPACER 1 (.15MM)
-
133083672 SPACER 2 (.3MM)SPACER 2 (.3MM)
-
133083673 SPACER 3 (.6MM)SPACER 3 (.6MM)
-
143083353 BUSHINGBUSHING
-
153083129 O-RINGO-RING
-
163083429 GEAR, SMALLGEAR, SMALL
-
173083428 SPACERSPACER
