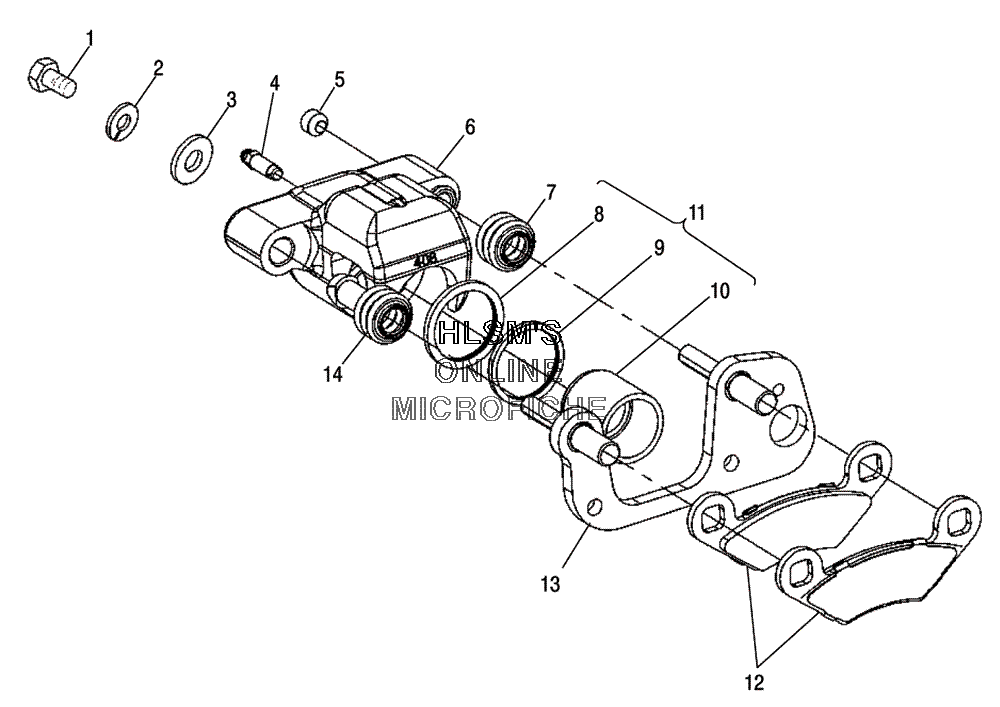

BRAKE - FRONT для Polaris TRAIL BOSS 330 (A04CA32FA) (SONIC BLUE) (CANADA) - 2004 года выпуска
-
№АртикулНазвание
-
221910695 CALIPER, BRAKE ASSY (1 3/16, 7") (LEFT) (INCL. 4-7)CALIPER, BRAKE ASSY (1 3/16, 7") (LEFT) (INCL. 4-7)
-
221910696 CALIPER, BRAKE ASSY (1 3/16, 7") (RIGHT) (INCL. 4-7)CALIPER, BRAKE ASSY (1 3/16, 7") (RIGHT) (INCL. 4-7)
-
221930642 BOOT BRAKE, KIT (FRONT) (INCL. 7, 14)BOOT BRAKE, KIT (FRONT) (INCL. 7, 14)
-
17512365 SCREW, CAPSCREW, CAP
-
27552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37558402 WASHER, FLATWASHER, FLAT
-
47080352 SCREW, BLEEDERSCREW, BLEEDER
-
57515489 SCREW, SOC SET YSCREW, SOC SET Y
-
65133407 CALIPER BRAKE (1 3/16) (MACH) (LEFT)CALIPER BRAKE (1 3/16) (MACH) (LEFT)
-
65133408 CALIPER BRAKE (1 3/16) (MACH) (RIGHT)CALIPER BRAKE (1 3/16) (MACH) (RIGHT)
-
75410494 BOOT, PIN SEALBOOT, PIN SEAL
-
85410779 RING, SQUARE MOLDED (.094)RING, SQUARE MOLDED (.094)
-
95410780 RING, SQUARE MOLDED (.103X.134)RING, SQUARE MOLDED (.103X.134)
-
105132294 PISTON AND SEAL, KITPISTON AND SEAL, KIT
-
111930665 PISTON AND SEAL, KIT (INCL. 8-10)PISTON AND SEAL, KIT (INCL. 8-10)
-
122202412 BRAKE PAD ASSY, KIT (FRONT)BRAKE PAD ASSY, KIT (FRONT)
-
131910412 MOUNT, CALIPER ASSYMOUNT, CALIPER ASSY
-
145410495 BOOT, BUSHINGBOOT, BUSHING
