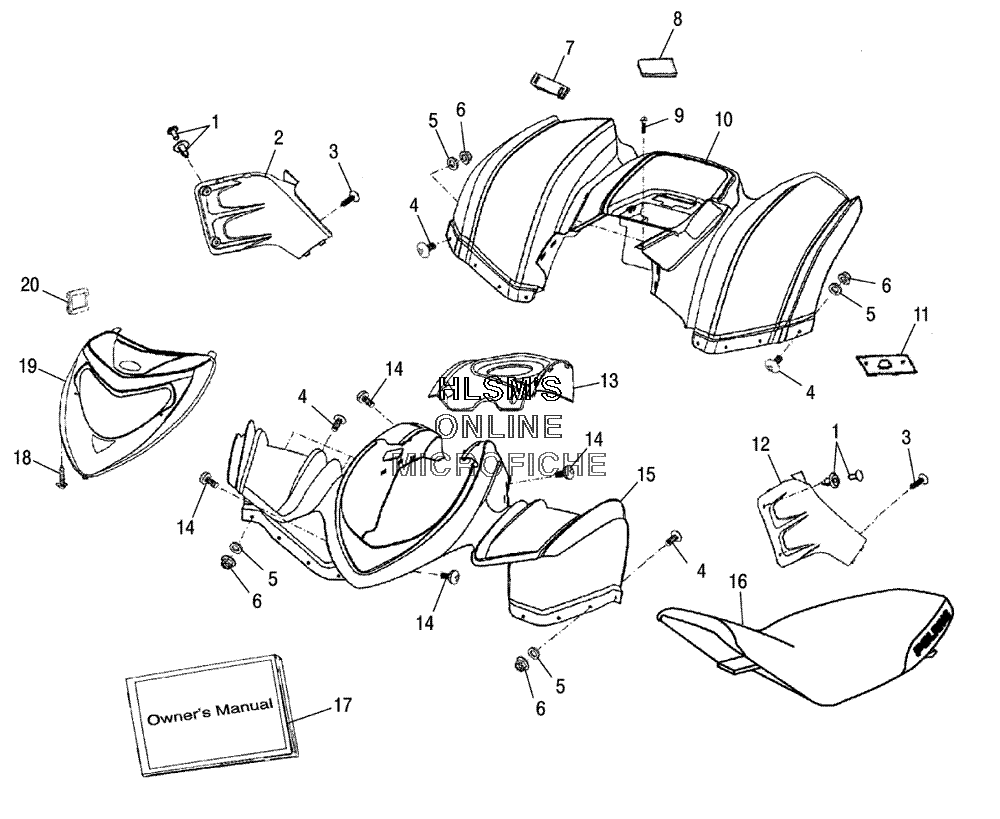

FENDER - REAR W/ SEAT для Polaris PHOENIX 200 QUADRICYCLE (A05PB20EA) (INDY RED) - 2005 года выпуска
-
№АртикулНазвание
-
10451076 RIVET, PLASTICRIVET, PLASTIC
-
20452653-070 PANEL SIDE (RIGHT/BLACK)PANEL SIDE (RIGHT/BLACK)
-
30451703 SCREW, TAPPINGSCREW, TAPPING
-
40450622 BOLT PHILLIPSBOLT PHILLIPS
-
50450710 WASHER PLAINWASHER PLAIN
-
60450741 NUT, LOCKNUT, LOCK
-
70452660 STRAP BATTERY, RUBBERSTRAP BATTERY, RUBBER
-
80450346 FOAM, BATTERY PADFOAM, BATTERY PAD
-
90452215 BOLT HEXAGONBOLT HEXAGON
-
100452866-293 CAB (REAR/INDY RED)CAB (REAR/INDY RED)
-
100452866-341 CAB (REAR/SONIC BLUE)CAB (REAR/SONIC BLUE)
-
110450345 PAD, FOIL PROTECTORPAD, FOIL PROTECTOR
-
120452651-070 PANEL SIDE (LEFT/BLACK)PANEL SIDE (LEFT/BLACK)
-
130452655-070 COVER FUEL TANK (BLACK)COVER FUEL TANK (BLACK)
-
140450824 BOLT W/WASHER, HEXAGONBOLT W/WASHER, HEXAGON
-
150452865-293 CAB BASIC (INDY RED/FRONT)CAB BASIC (INDY RED/FRONT)
-
150452865-341 CAB BASIC (SONIC BLUE/FRONT)CAB BASIC (SONIC BLUE/FRONT)
-
160452638 SEATSEAT
-
179919969 OWNERS MANUALOWNERS MANUAL
-
180450040 SCREW TAPPINGSCREW TAPPING
-
190452650-070 COVER HEADLIGHT (BLACK)COVER HEADLIGHT (BLACK)
-
200452662 BOOT, RUBBER SHIFTBOOT, RUBBER SHIFT
