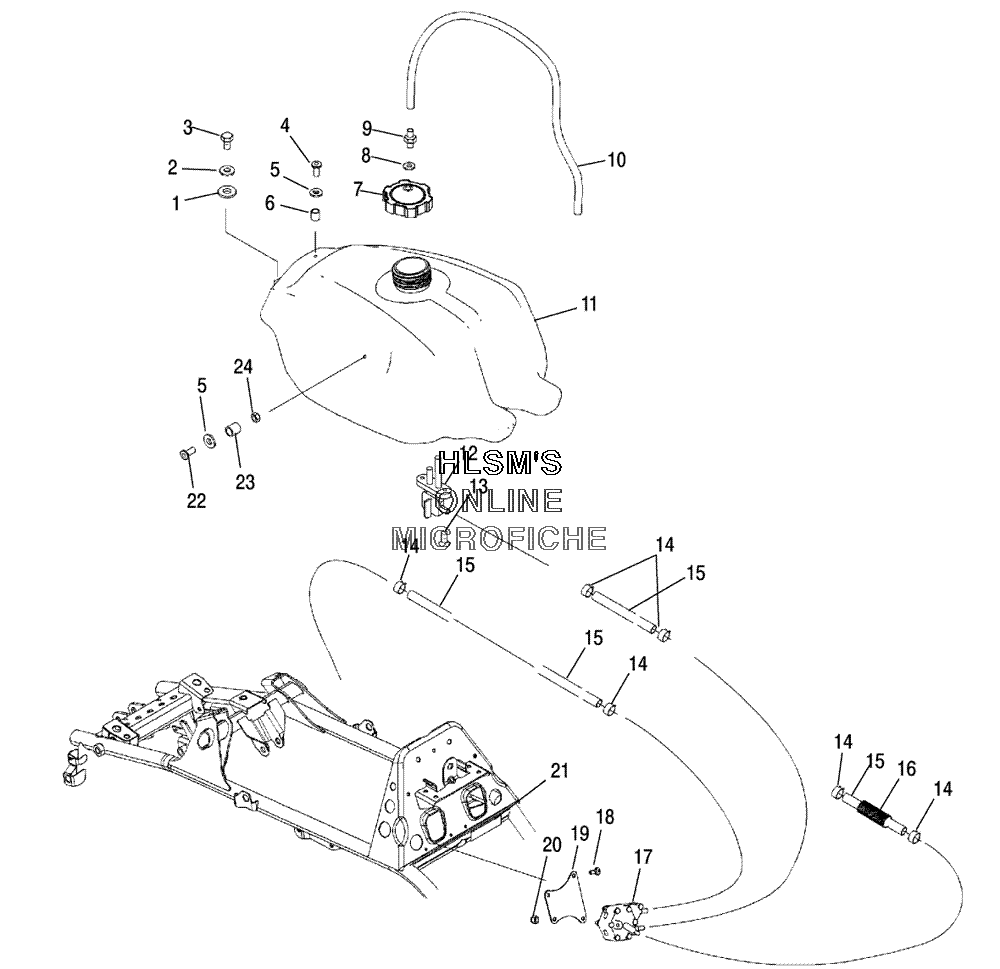

FUEL TANK для Polaris PREDATOR 500 (A05GJ50AB) (COS. SUN) - 2005 года выпуска
-
№АртикулНазвание
-
17555734 WASHER FLATWASHER FLAT
-
27552606 WASHERWASHER
-
37515321 BOLTBOLT
-
47515166 SCREWSCREW
-
57555859 WASHER FLATWASHER FLAT
-
65334283 SPACERSPACER
-
75434736 CAP FUEL TANK VENTED (INCL. 8, 9, 10)CAP FUEL TANK VENTED (INCL. 8, 9, 10)
-
112520271 FUEL TANK ASSY (INCL. 12)FUEL TANK ASSY (INCL. 12)
-
115434452 FUEL TANK ASSYFUEL TANK ASSY
-
127052331 VALVE FUEL ON/OFF/RESERVEVALVE FUEL ON/OFF/RESERVE
-
137515136 SCREWSCREW
-
147080003 CLAMP HOSECLAMP HOSE
-
158450103 LINE FUEL (1/4 DP SAE)LINE FUEL (1/4 DP SAE)
-
168360052-305 TUBING CONVOLUTEDTUBING CONVOLUTED
-
173088070 FUEL PUMP ASSYFUEL PUMP ASSY
-
187512084 SCREWSCREW
-
195246593 BRACKET MOUNT FUEL PUMPBRACKET MOUNT FUEL PUMP
-
207546601 NUT NYLOKNUT NYLOK
-
215521131 TRIM EDGE 6FT (BLACK)TRIM EDGE 6FT (BLACK)
-
227518243 SCREWSCREW
-
235435065 SPACERSPACER
-
247542105 NUT, HEXAGONNUT, HEXAGON
