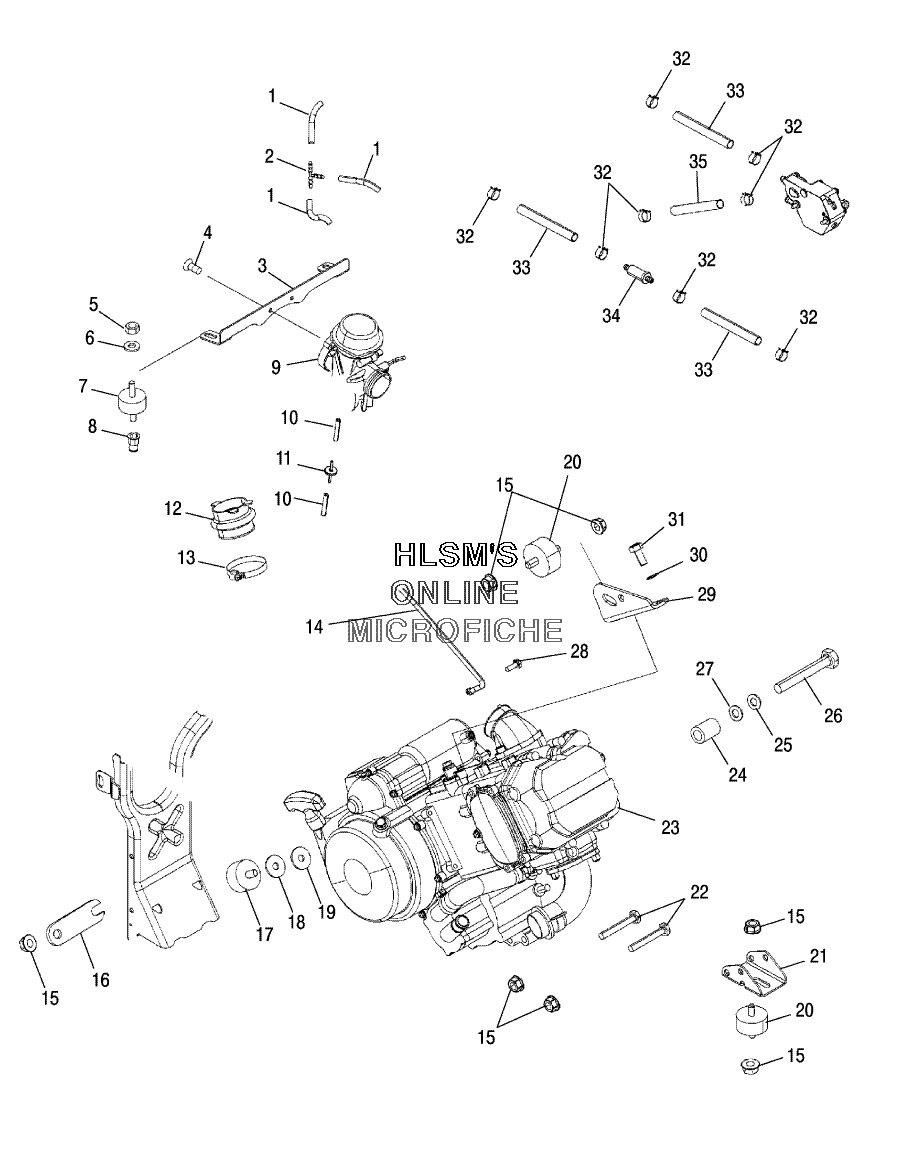

MOUNTING - ENGINE для Polaris SPORTSMAN 400 (A05MH42AB) (INDY RED) - 2005 года выпуска
-
№АртикулНазвание
-
18450003-1525 LINE FUEL 1/4 ID (1525 CM)LINE FUEL 1/4 ID (1525 CM)
-
27052075 FITTING TEEFITTING TEE
-
35247154 STRAP CARB MOUNT 400STRAP CARB MOUNT 400
-
43084205 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
57542105 NUT HEXAGONNUT HEXAGON
-
67558203 WASHERWASHER
-
73110050 MOUNT CARBURETORMOUNT CARBURETOR
-
87542143 INSERTINSERT
-
108360009-600 LINE FUEL (600 CM)LINE FUEL (600 CM)
-
117051011 VALVE CHECKVALVE CHECK
-
125412487 BOOT CLUTCH INTAKEBOOT CLUTCH INTAKE
-
137080511 CLAMP NARROW BANDCLAMP NARROW BAND
-
144010895 CABLE (BLACK) (FRAME/ENGINE)CABLE (BLACK) (FRAME/ENGINE)
-
157547108 NUTNUT
-
165224658-067 STRAP FRAME SUPPORT (BLACK)STRAP FRAME SUPPORT (BLACK)
-
173110046 MOUNT RUBBER (FRONT)MOUNT RUBBER (FRONT)
-
187555815 WASHER FLATWASHER FLAT
-
197555797 WASHER FLATWASHER FLAT
-
203110044 MOUNT RUBBER TOPMOUNT RUBBER TOP
-
215241150 MOUNT ENGINE (FRONT)MOUNT ENGINE (FRONT)
-
227518415 BOLT HEXAGON FLANGEBOLT HEXAGON FLANGE
-
233087023 ENGINE (EH42PLE053) (SEE NOTE)ENGINE (EH42PLE053) (SEE NOTE)
-
245430261 BUSHINGBUSHING
-
257575202 WASHER LOCKWASHER LOCK
-
267512566 BOLTBOLT
-
275210748 WASHERWASHER
-
283082038 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
295241453 MOUNT ENGINEMOUNT ENGINE
-
307552901 WASHER SPRING LOCKWASHER SPRING LOCK
-
317512315 BOLTBOLT
-
327080003 CLAMP HOSECLAMP HOSE
-
338450103 LINE FUEL (1/4 DP SAE)LINE FUEL (1/4 DP SAE)
-
342530009 FILTER SMALL IN LINEFILTER SMALL IN LINE
-
358450040-600 LINE FUEL (1/4 ID, 600 CM)LINE FUEL (1/4 ID, 600 CM)
