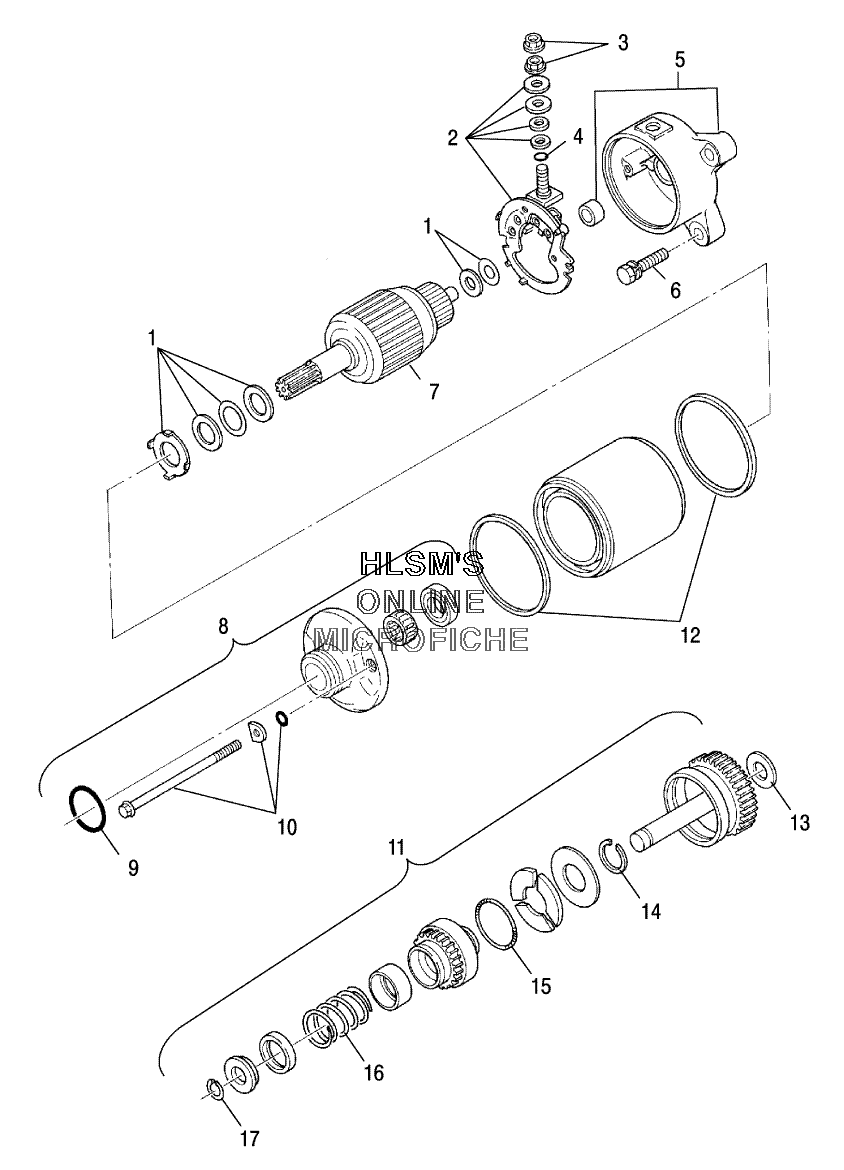

STARTING MOTOR для Polaris SPORTSMAN 400 (A05MH42AG) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
13084982 WASHER SETWASHER SET
-
23088169 CARBON BRUSH SETCARBON BRUSH SET
-
33083649 NUT FLANGENUT FLANGE
-
43084408 O-RINGO-RING
-
53085034 COVER ASSY (REAR)COVER ASSY (REAR)
-
63082038 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
73085353 ARMATURE ASSYARMATURE ASSY
-
83085033 BRACKET ASSY (FRONT) (INCL. 9)BRACKET ASSY (FRONT) (INCL. 9)
-
93240114 O-RINGO-RING
-
103084983 BOLT SET ASSY (INCL. 4)BOLT SET ASSY (INCL. 4)
-
113087030 GEAR SHAFT ASSY (INCL. 14-17)GEAR SHAFT ASSY (INCL. 14-17)
-
123084405 RING RUBBERRING RUBBER
-
137555908 WASHERWASHER
-
143084412 CLIPCLIP
-
153084411 SPRING WEIGHTSPRING WEIGHT
-
163084410 SPRING RETURNSPRING RETURN
-
173084409 CLIPCLIP
-
173084981 MOTOR STARTING, ASSY (INCL. 1-5, 7-10, 12)MOTOR STARTING, ASSY (INCL. 1-5, 7-10, 12)
