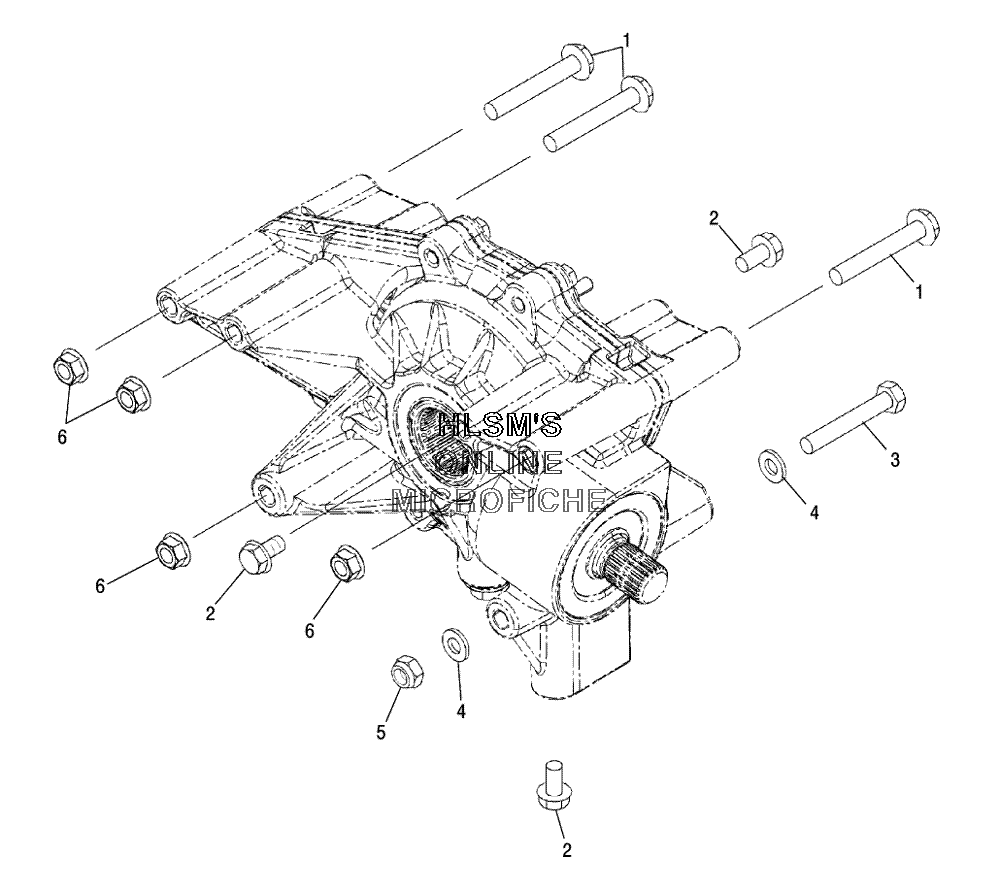

MOUNTING - REAR GEARCASE для Polaris SPORTSMAN 600 (A05MH59AK) (CAMO GREEN METALLIC) - 2005 года выпуска
-
№АртикулНазвание
-
17518365 BOLT HEXAGON FLANGE GR5 (3/8 16X7)BOLT HEXAGON FLANGE GR5 (3/8 16X7)
-
27512492 SCREWSCREW
-
37517878 SCREW (3/8 16 6.75 HXCS GR5 ZY3)SCREW (3/8 16 6.75 HXCS GR5 ZY3)
-
47555806 WASHER, FLATWASHER, FLAT
-
57547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
67517180 NUT, FLANGENUT, FLANGE
