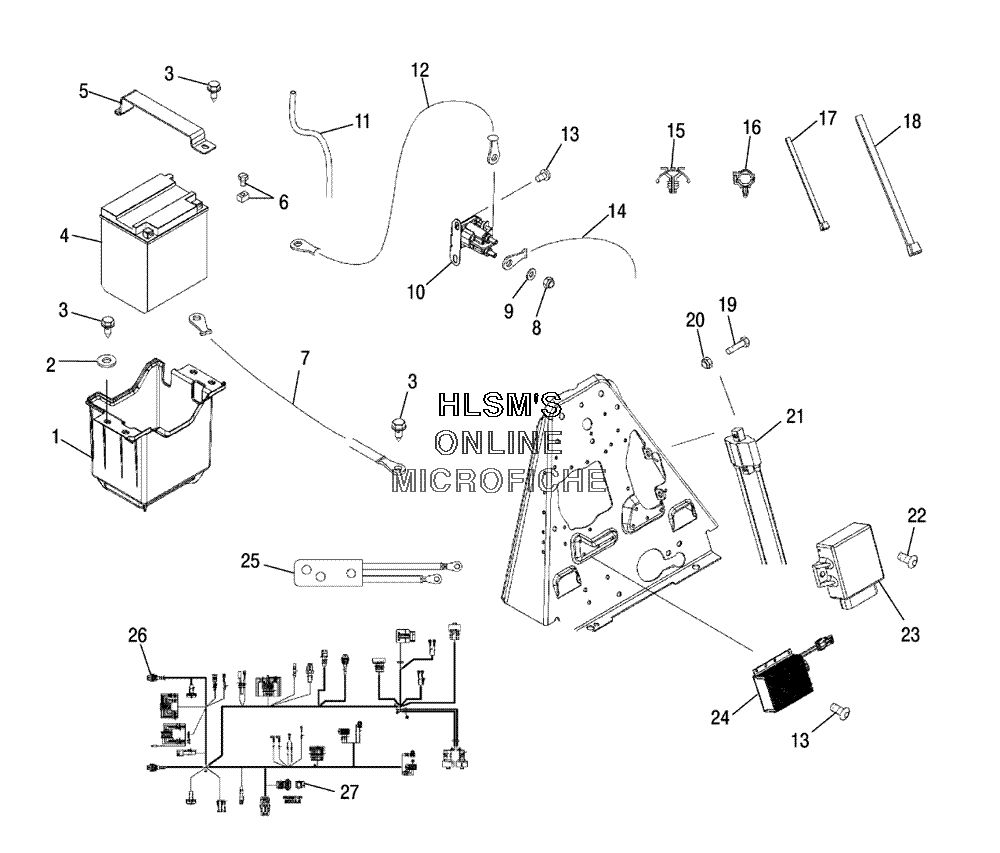

ELECTRICAL COMPONENTS для Polaris SPORTSMAN 700 (A05MH68AK) (CAMO GREEN METALLIC) - 2005 года выпуска
-
№АртикулНазвание
-
15435696 BOX BATTERYBOX BATTERY
-
27555859 WASHER FLATWASHER FLAT
-
37512232 BOLTBOLT
-
44010630 BATTERY 30 AMP TOP MOUNTBATTERY 30 AMP TOP MOUNT
-
55247376 STRAP BATTERY HOLD DOWN 30 AMPSTRAP BATTERY HOLD DOWN 30 AMP
-
62202099 BATTERY BOLT KITBATTERY BOLT KIT
-
74011139 CABLE (BLACK) (BATTERYERY/FRAME)CABLE (BLACK) (BATTERYERY/FRAME)
-
87547283 NUT HEXAGON JAMNUT HEXAGON JAM
-
97552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
104011072 SWITCH MAGNETIC (IF BUILT BEFORE 1/10/05)SWITCH MAGNETIC (IF BUILT BEFORE 1/10/05)
-
104011251 SWITCH MAGNETIC (IF BUILT AFTER 1/10/05)SWITCH MAGNETIC (IF BUILT AFTER 1/10/05)
-
115432077 TUBE VENTTUBE VENT
-
124010471 CABLE, BATTERY/SOLENOID (RED)CABLE, BATTERY/SOLENOID (RED)
-
137512024 SCREWSCREW
-
144010376 CABLE, SOLENOID/STATERCABLE, SOLENOID/STATER
-
157080965 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
164020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
177080138 CABLE TIECABLE TIE
-
187080492 CABLE TIE (11 INCH)CABLE TIE (11 INCH)
-
197512007 BOLTBOLT
-
207541925 NUT NYLOKNUT NYLOK
-
214010898 COIL IGNITION KOKCOIL IGNITION KOK
-
227512084 SCREWSCREW
-
234011017 CONTROLLER IGNITIONCONTROLLER IGNITION
-
244011044 CONTROLLER MODULE FANCONTROLLER MODULE FAN
-
252410535 HARNESS, WINCH PREWIREHARNESS, WINCH PREWIRE
-
262410466 HARNESS, MAIN COMHARNESS, MAIN COM
-
274010924 MODULE, RESISTORMODULE, RESISTOR
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - FRONT BRAKE LINES
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROLS
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD W/ CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL - LIGHTING SYSTEMS
- • ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE - REAR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - REAR GEARCASE
- MOUNTING - TRANSMISSION
- OIL DIPSTICK
- OIL PUMP
- PROP SHAFT - REAR
- RACK AND BUMPER MOUNTING - REAR
- STARTING MOTOR
- STEERING POST
- STORAGE BOX - FRONT W/ BUMPER MOUNTING
- STORAGE BOX - REAR
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
