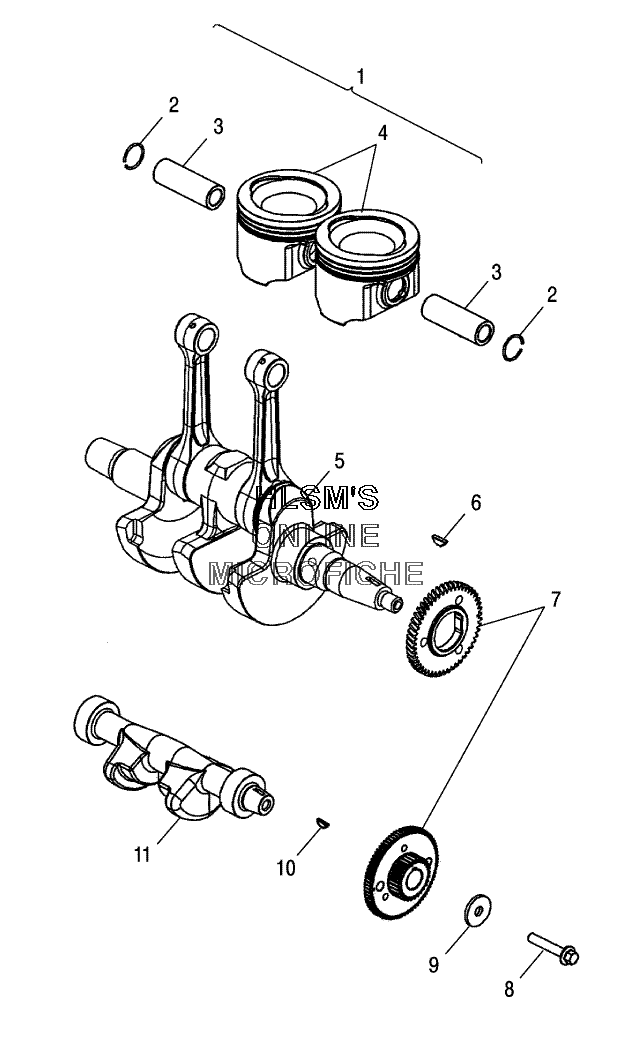

CRANKSHAFT W/ PISTON для Polaris SPORTSMAN 700 (A05MH68AN) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
12202107 PISTON KIT (INCL. 2-4)PISTON KIT (INCL. 2-4)
-
23022996 CIRCLIP PISTONCIRCLIP PISTON
-
42202127 PISTON RINGS KIT (80MM) (INCL. CONTROL, IRON, AND CHROME-RINGS)PISTON RINGS KIT (80MM) (INCL. CONTROL, IRON, AND CHROME-RINGS)
-
52202858 CRANKSHAFT KIT (INCL. 2, 3, 5, 17)CRANKSHAFT KIT (INCL. 2, 3, 5, 17)
-
67721117 KEY WOODRUFFKEY WOODRUFF
-
72202145 GEAR SET KITGEAR SET KIT
-
87517865 SCREW HEXAGONSCREW HEXAGON
-
97555982 WASHER RETAININGWASHER RETAINING
-
107721131 KEY WOOD RUFFKEY WOOD RUFF
-
115132396 SHAFT, BALANCESHAFT, BALANCE
