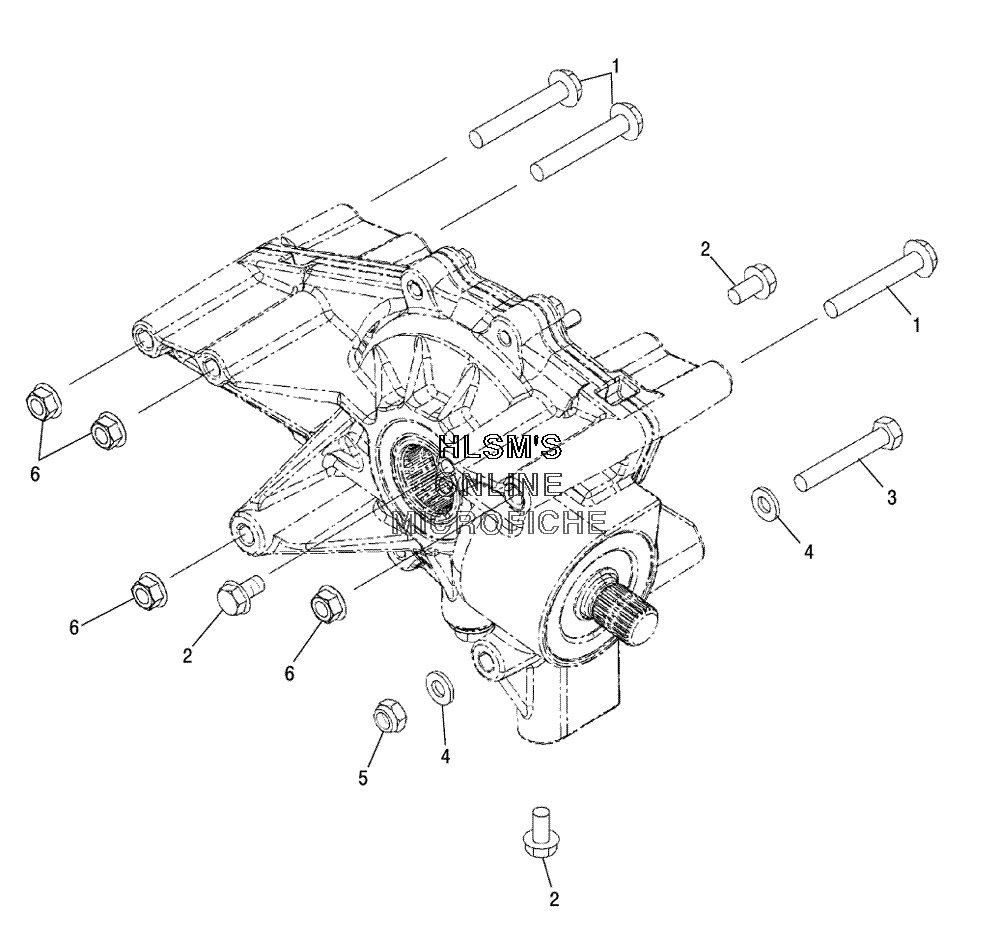

MOUNTING - REAR GEARCASE для Polaris SPORTSMAN 700 EFI (A05MH68AC) (N.B.U. SUB CAMO) - 2005 года выпуска
-
№АртикулНазвание
-
17518365 BOLT, HEXAGON FLANGE GR5 (3/8 16X7)BOLT, HEXAGON FLANGE GR5 (3/8 16X7)
-
27512492 SCREWSCREW
-
37517878 SCREW, HEXAGON CS GR5 ZY3 (3/8 16 6. 75)SCREW, HEXAGON CS GR5 ZY3 (3/8 16 6. 75)
-
47555806 WASHER, FLATWASHER, FLAT
-
57547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
67547180 NUT, FLANGED (3/8-16 NYLON)NUT, FLANGED (3/8-16 NYLON)
