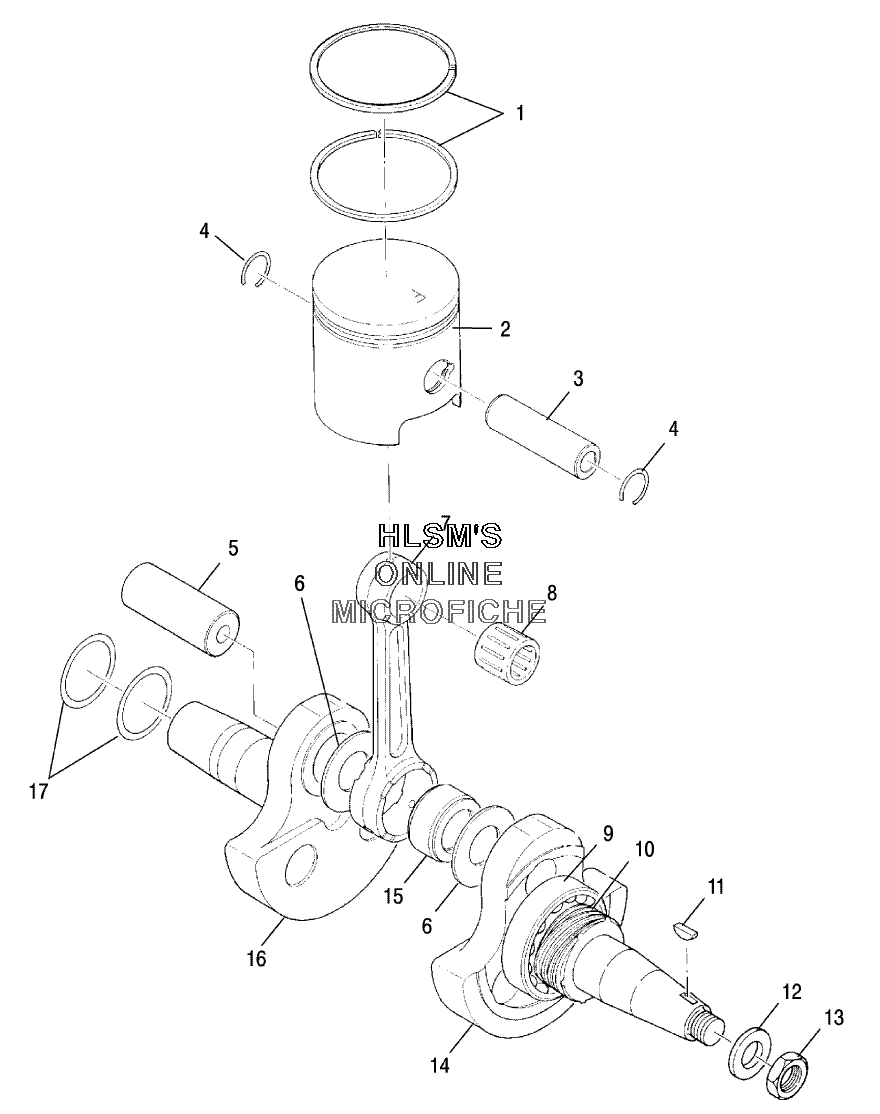

CRANKSHAFT W/ PISTON для Polaris TRAIL BLAZER (A05BA25CA) (BLAZING RED) - 2005 года выпуска
-
№АртикулНазвание
-
13083546 SET, PISTON RING (STANDARD)SET, PISTON RING (STANDARD)
-
13083678 SET, PISTON RING (.010"/.25MM O/S)SET, PISTON RING (.010"/.25MM O/S)
-
13083717 SET, PISTON RING (.020"/.50MM O/S)SET, PISTON RING (.020"/.50MM O/S)
-
13083974 SET, PISTON RING ( .040"/1.00MM O/S)SET, PISTON RING ( .040"/1.00MM O/S)
-
23083942 SET, PISTON (STANDARD) (INCL. 4)SET, PISTON (STANDARD) (INCL. 4)
-
23083943 SET, PISTON (.010"/.25MM O/S) (INCL. 4)SET, PISTON (.010"/.25MM O/S) (INCL. 4)
-
23083944 SET, PISTON (.020"/.50MM O/S) (INCL. 4)SET, PISTON (.020"/.50MM O/S) (INCL. 4)
-
23083972 SET, PISTON (.040"/1.00MM O/S) (INCL. 4)SET, PISTON (.040"/1.00MM O/S) (INCL. 4)
-
33083838 PIN, PISTONPIN, PISTON
-
43083839 CLIP, PISTON PINCLIP, PISTON PIN
-
53082796 CRANK PIN (PTO)CRANK PIN (PTO)
-
63083804 SPACERSPACER
-
73082790 ROD CONNECTINGROD CONNECTING
-
83083626 BEARING, SMALL ENDBEARING, SMALL END
-
93084580 BEARING, BALLBEARING, BALL
-
103083745 GEAR, CRANKSHAFT (O/I)GEAR, CRANKSHAFT (O/I)
-
113080130 KEY WOODRUFFKEY WOODRUFF
-
123086767 WASHERWASHER
-
133083905 NUT, LOCKNUT, LOCK
-
143087056 CRANKSHAFT ASSY (INCL. 5 7, 9, 10, 14 16)CRANKSHAFT ASSY (INCL. 5 7, 9, 10, 14 16)
-
143083899 CRANKSHAFT #1CRANKSHAFT #1
-
153083803 BEARING, LARGE ENDBEARING, LARGE END
-
163085891 CRANKSHAFT 2CRANKSHAFT 2
-
173086765 SPACER 1 (0.2MM)SPACER 1 (0.2MM)
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- BUMPER AND SHIELDS - FRONT
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROL PANEL
- CRANKCASE W/ CYLINDER
- • CRANKSHAFT W/ PISTON
- DECALS
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL PUMP
- OIL TANK
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
