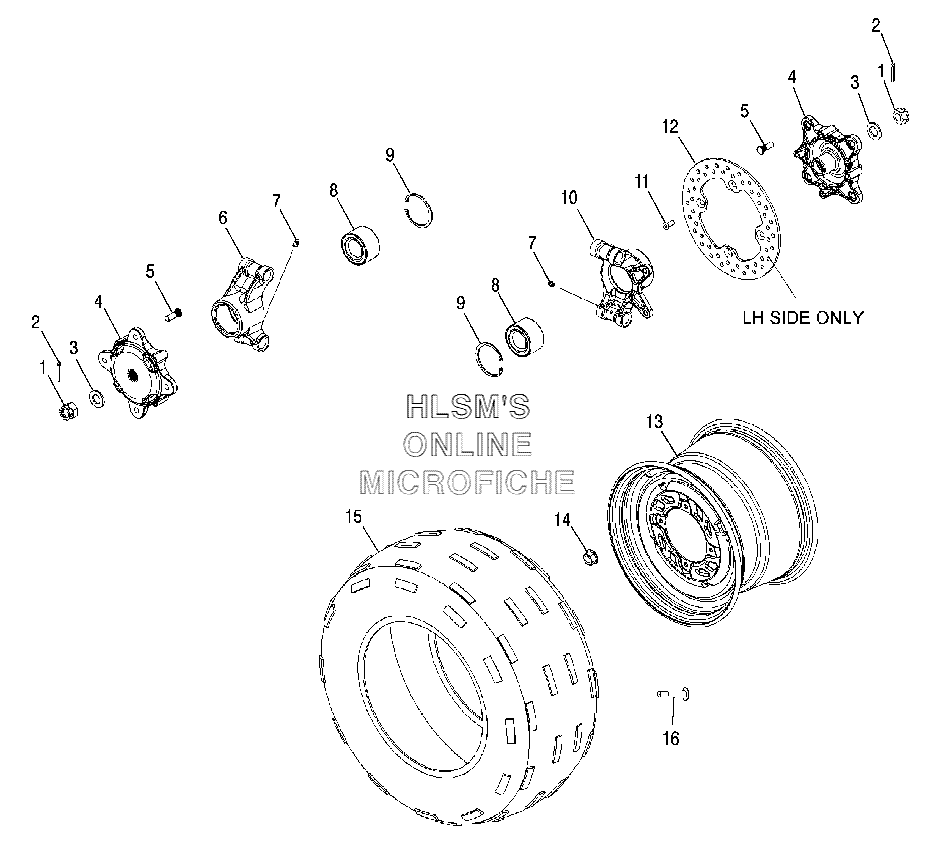

WHEEL - REAR W/ HUB для Polaris Hawkeye 2x4 (A06LB27AD) (NBU CAMO) - 2006 года выпуска
-
№АртикулНазвание
-
17547337 NUT, CASTLE (ZINC/YELLOW)NUT, CASTLE (ZINC/YELLOW)
-
27661404 PIN, COTTERPIN, COTTER
-
37555796 WASHER, CONEWASHER, CONE
-
45135406 HUB-REARHUB-REAR
-
57515513 STUDSTUD
-
65135408 CARRIER-BEARING (RIGHT/REAR)CARRIER-BEARING (RIGHT/REAR)
-
77080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
83514342 BEARING-AXLE TUBE/HUBSTRUTBEARING-AXLE TUBE/HUBSTRUT
-
97710507 RING, RET.RING, RET.
-
105135407 CARRIER-BEARING (LEFT/REAR)CARRIER-BEARING (LEFT/REAR)
-
117518451 BOLTBOLT
-
125248213 DISC-BRAKE, REARDISC-BRAKE, REAR
-
131520713-067 RIM, REAR (12X8.0) (BLACK)RIM, REAR (12X8.0) (BLACK)
-
147547237 NUT-FLANGE, TWO PIECENUT-FLANGE, TWO PIECE
-
155413077 TIRE-REAR (22X10-12)TIRE-REAR (22X10-12)
-
161525017 VALVE, RIMVALVE, RIM
