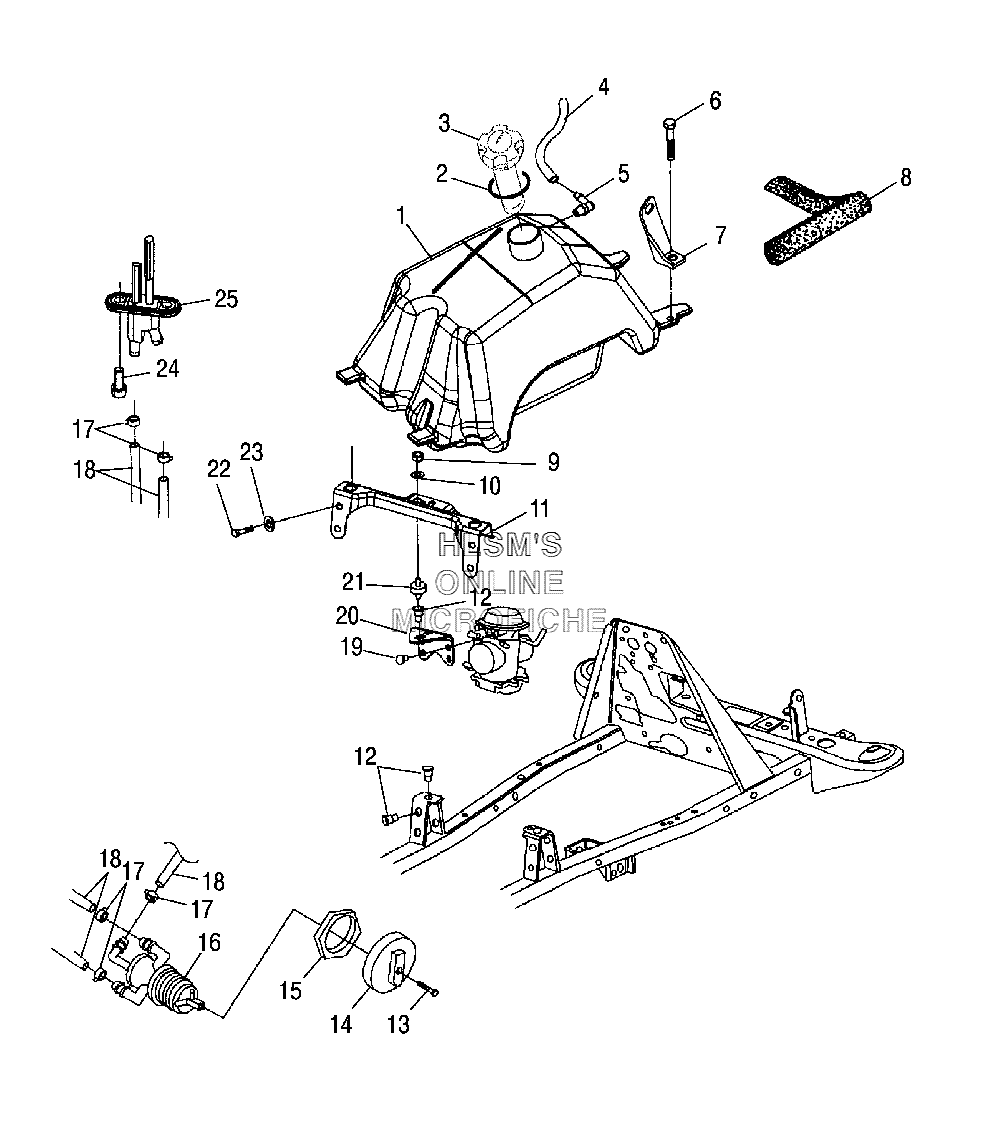

FUEL TANK AND CARBURETOR MOUNTING для Polaris Magnum 330 4x4 (A06CD32AA) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
12520409 FUEL TANK ASSYFUEL TANK ASSY
-
25812123 GASKETGASKET
-
32873626 GAUGE, FUEL, KITGAUGE, FUEL, KIT
-
48360009-600 LINE, FUEL (1/8 ID, 600 CM.)LINE, FUEL (1/8 ID, 600 CM.)
-
55431053 VENT, TANKVENT, TANK
-
55431053 VENT, TANKVENT, TANK
-
67512277 BOLTBOLT
-
75222154 BRACKET-FUEL COVER MOUNT (LEFT)BRACKET-FUEL COVER MOUNT (LEFT)
-
75222155 BRACKET-FUEL COVER MOUNT (RIGHT)BRACKET-FUEL COVER MOUNT (RIGHT)
-
85811899 FOAM-SEAL (17'')FOAM-SEAL (17'')
-
97542105 NUT HEXNUT HEX
-
107552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
115245671-067 BRACKET, CARBURETOR SUPPORT (BLACK)BRACKET, CARBURETOR SUPPORT (BLACK)
-
127547069 NUTSERT, HEXNUTSERT, HEX
-
137517505 SCREWSCREW
-
145432559 KNOB, FUEL VALVEKNOB, FUEL VALVE
-
155432733 NUT, FUEL VALVENUT, FUEL VALVE
-
167052161 VALVE, 3-WAYVALVE, 3-WAY
-
177080003 CLAMP, HOSECLAMP, HOSE
-
188450103 FUEL HOSE (150 CM)FUEL HOSE (150 CM)
-
193084205 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
205245674-067 MOUNT, CARBURETOR (BLACK)MOUNT, CARBURETOR (BLACK)
-
213110050 MOUNT, CARBURETORMOUNT, CARBURETOR
-
227512276 BOLTBOLT
-
237558301 WASHER, FLATWASHER, FLAT
-
247515136 SCREWSCREW
-
257052364 FITTING-FUEL, DUAL OUTLETFITTING-FUEL, DUAL OUTLET
