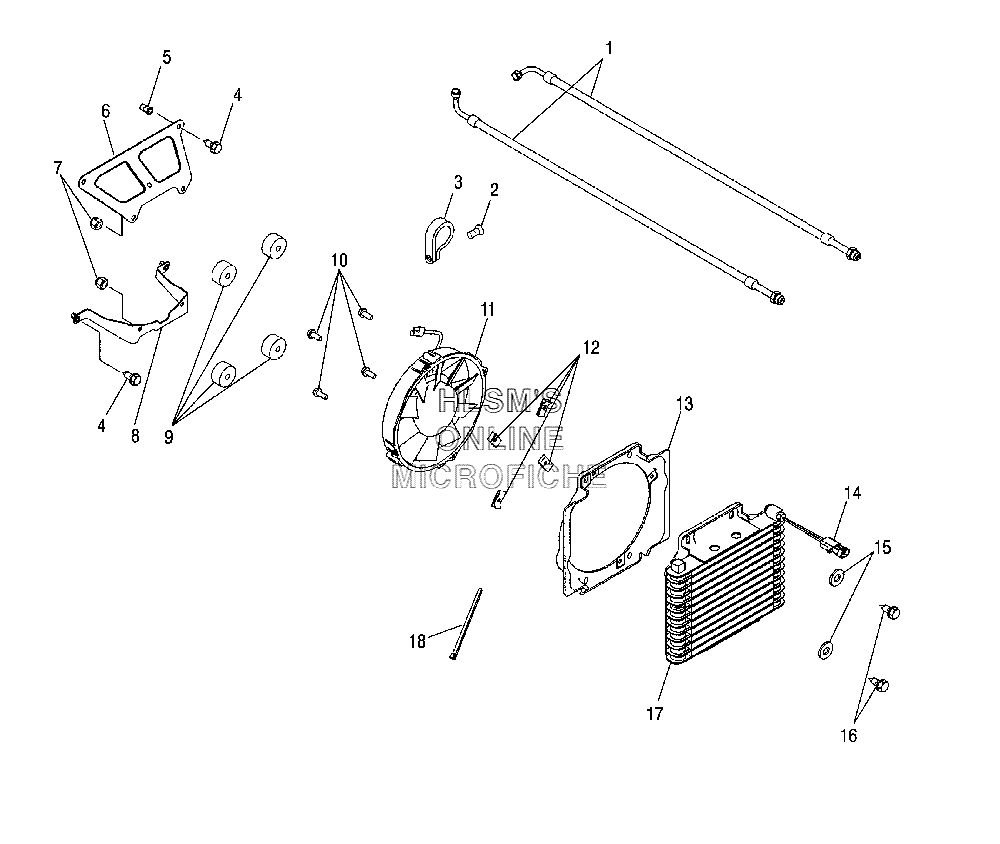

OIL COOLING SYSTEM для Polaris Magnum 330 4x4 (A06CD32AC) (NBU SUB) - 2006 года выпуска
-
№АртикулНазвание
-
-1240204 OIL COOLER (INCL. 1, 10-14, 17)OIL COOLER (INCL. 1, 10-14, 17)
-
15412355 HOSE-COOLER, THREADEDHOSE-COOLER, THREADED
-
27512084 SCREWSCREW
-
37080851 CLAMP-HOSECLAMP-HOSE
-
47512232 BOLTBOLT
-
57547069 NUTSERT, HEXNUTSERT, HEX
-
65245416-067 BRACKET-OIL COOLER (TOP/BLACK)BRACKET-OIL COOLER (TOP/BLACK)
-
77542122 NUT-NYLOKNUT-NYLOK
-
85248139 BRACKET-LOWERBRACKET-LOWER
-
97555932 WASHER, NYLONWASHER, NYLON
-
107517659 SCREWSCREW
-
112410534 FAN MOTOR ASSYFAN MOTOR ASSY
-
127670111 CLIP, UCLIP, U
-
135433353 SHROUD, FANSHROUD, FAN
-
144010934 THERMISTERTHERMISTER
-
157558301 WASHER, FLATWASHER, FLAT
-
167512163 BOLTBOLT
-
171240191 COOLER-OILCOOLER-OIL
-
187080492 CABLE TIE (11 INCH)CABLE TIE (11 INCH)
