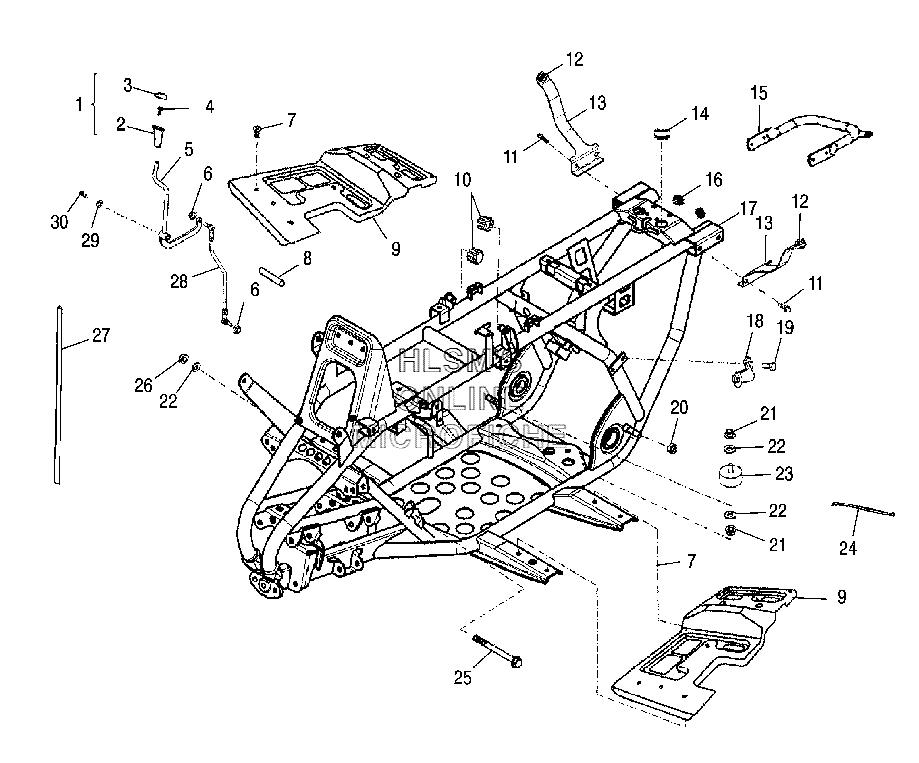

FRAME для Polaris Phoenix 200 (A06PB20LE) - 2006 года выпуска
-
№АртикулНазвание
-
10450966 GRIP, TRANS LEVERGRIP, TRANS LEVER
-
20452168 KNOB, TRANSMISSION LEVERKNOB, TRANSMISSION LEVER
-
30450967 COVER, TRANSMISSION LEVER KNOBCOVER, TRANSMISSION LEVER KNOB
-
40450309 BOLT, HEXBOLT, HEX
-
50452601 SHIFT LEVERSHIFT LEVER
-
60450268 NUT, FLANGENUT, FLANGE
-
70452597 SCREW, PHIL. FAT HEADSCREW, PHIL. FAT HEAD
-
80452596 DAMPNER, FOOT BRAKE LEVERDAMPNER, FOOT BRAKE LEVER
-
90452594 PLATE, FOOTWELLPLATE, FOOTWELL
-
100452591 GROMMET, SEATGROMMET, SEAT
-
110453126 BOLT, HEX, W/LOCK WASHERBOLT, HEX, W/LOCK WASHER
-
120450800 RUBBERRUBBER
-
130452593 BRACKET, CAB SUPPORTBRACKET, CAB SUPPORT
-
140450290 RUBBER, SEATRUBBER, SEAT
-
150453261-385 GRAB BAR (REAR/SILVER)GRAB BAR (REAR/SILVER)
-
160453125 CAP, RUBBERCAP, RUBBER
-
170453110 FRAME, MAINFRAME, MAIN
-
180452602 BRACKET, KICK STARTBRACKET, KICK START
-
190450309 BOLT, HEXBOLT, HEX
-
200452799 NUT, HEX (KICK STARTER)NUT, HEX (KICK STARTER)
-
210450882 NUT, LOCK, NYLONNUT, LOCK, NYLON
-
220450279 WASHERWASHER
-
230452592 MOUNT, ENGINEMOUNT, ENGINE
-
240450559 STRAPSTRAP
-
250452599 BOLT, HEX, SEMSBOLT, HEX, SEMS
-
260450276 NUT, LOCKNUT, LOCK
-
270452603 TRIM, RUBBERTRIM, RUBBER
-
280452600 SHIFT, LINKAGESHIFT, LINKAGE
-
290452198 WASHER, FLATWASHER, FLAT
-
300450298 BOLT, HEXBOLT, HEX
